Key Features

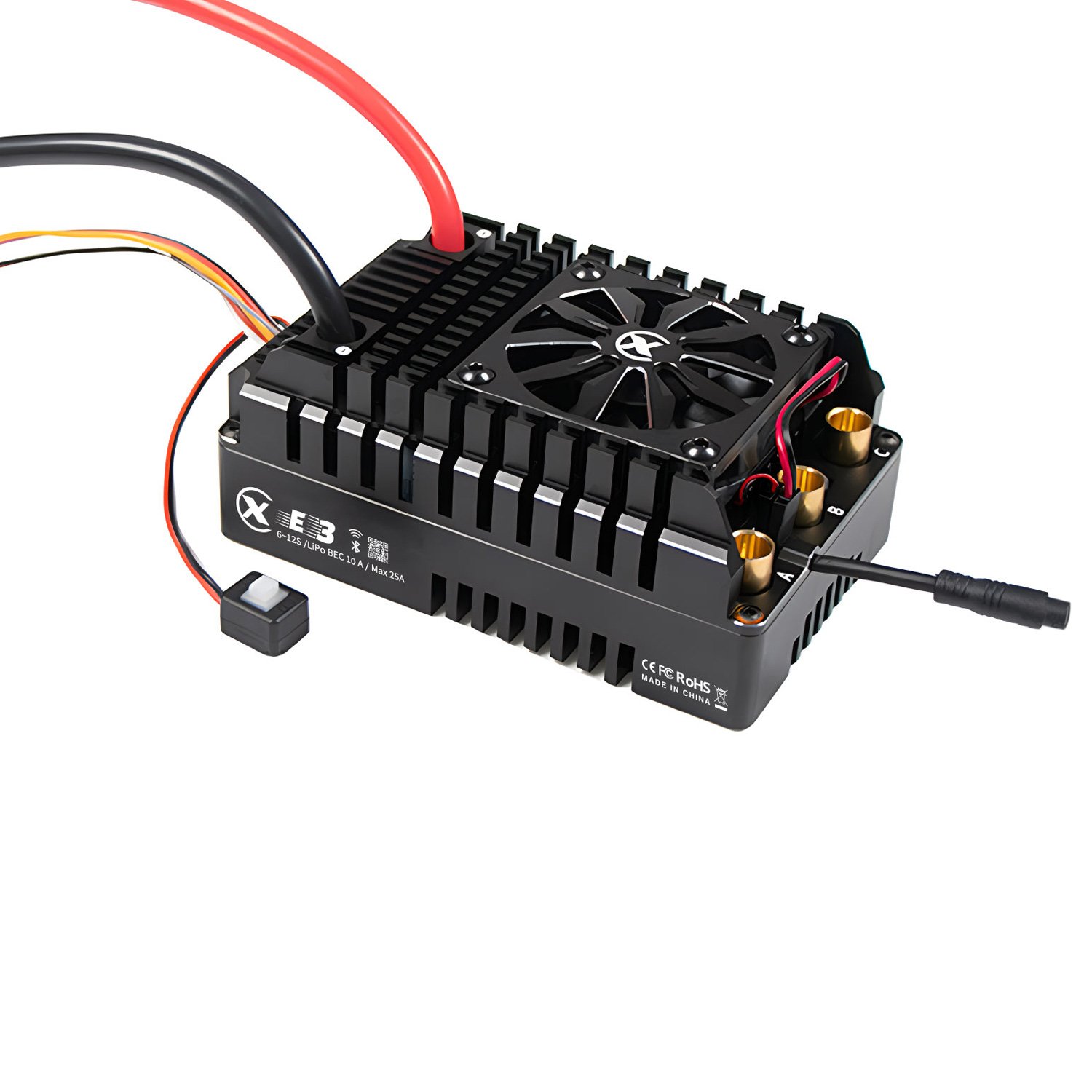

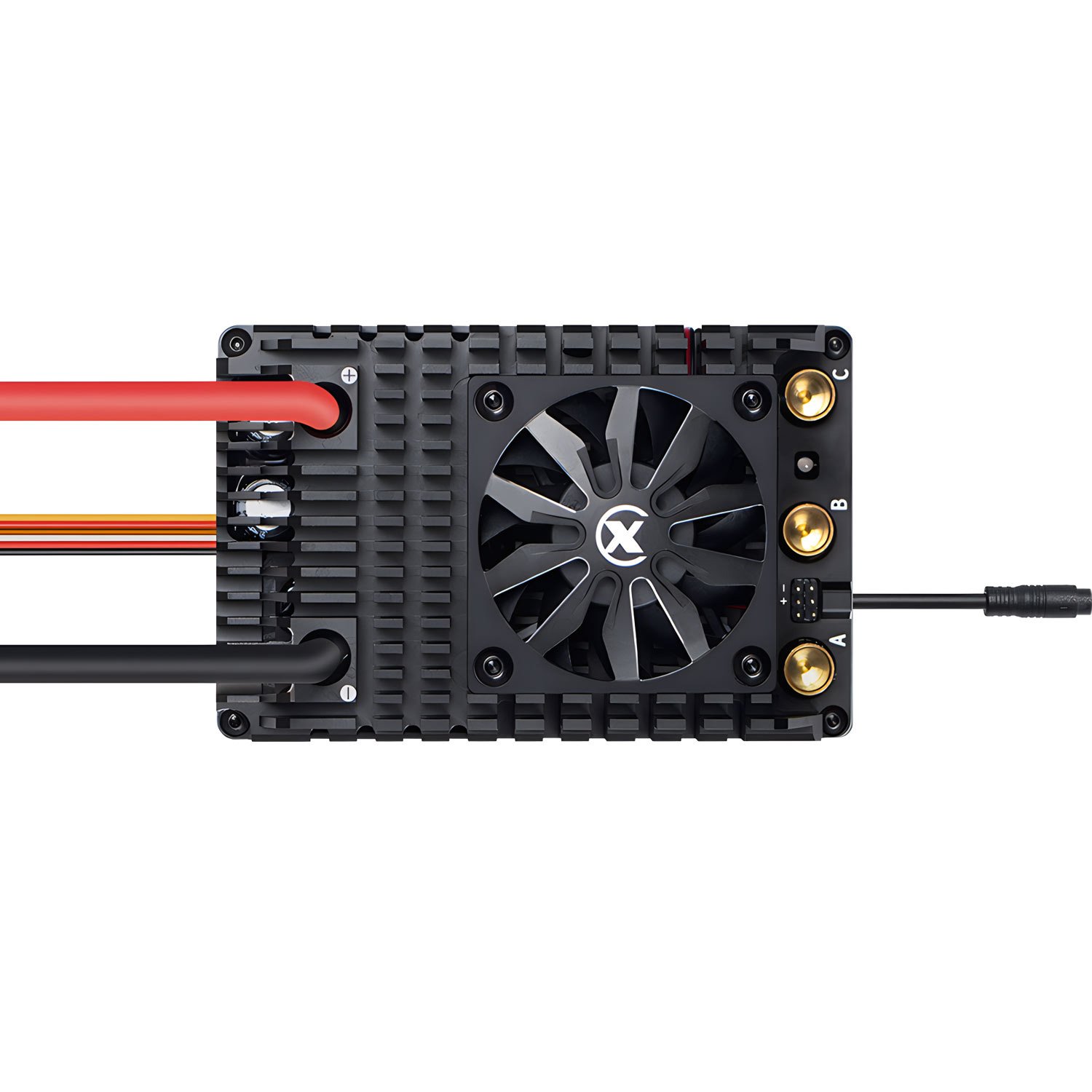

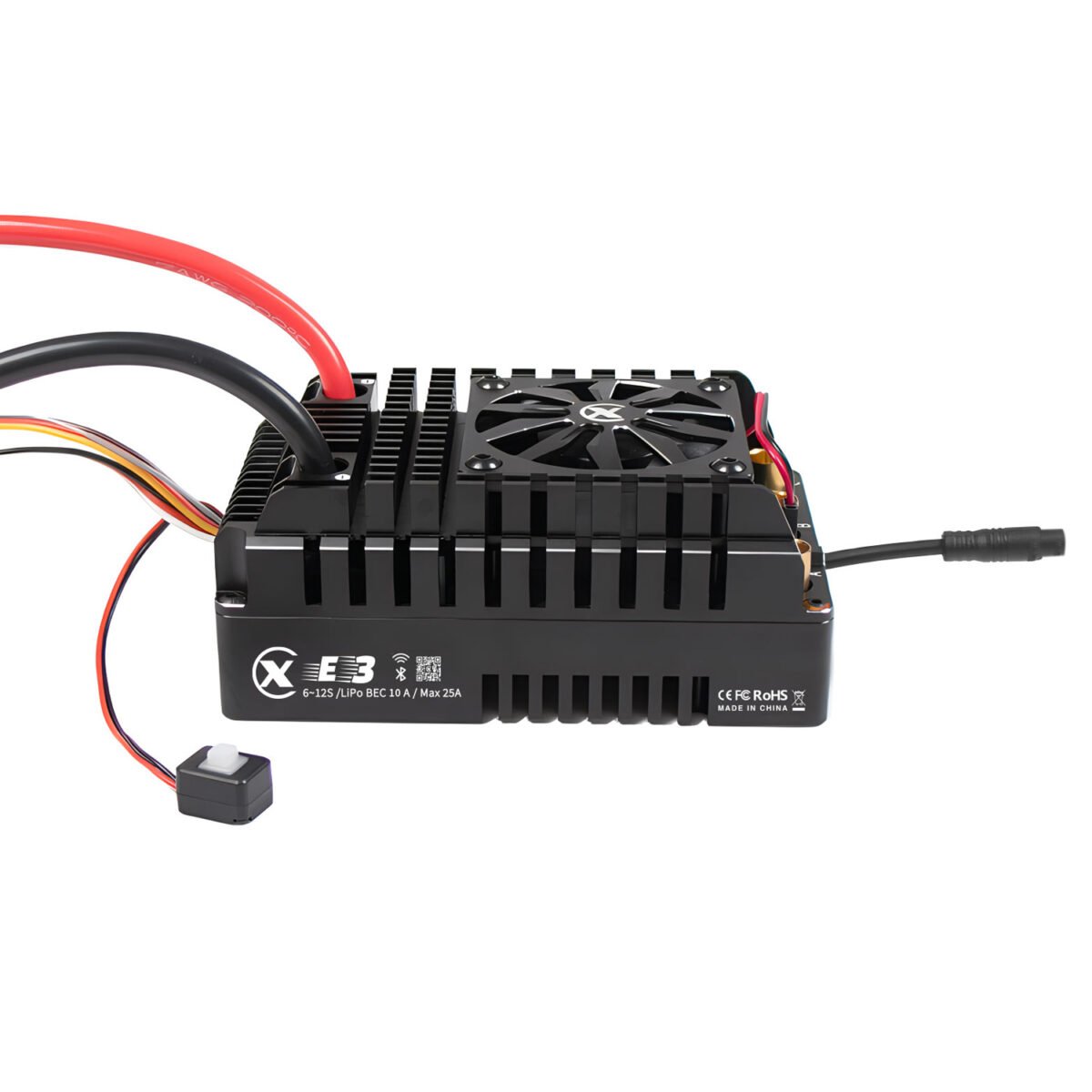

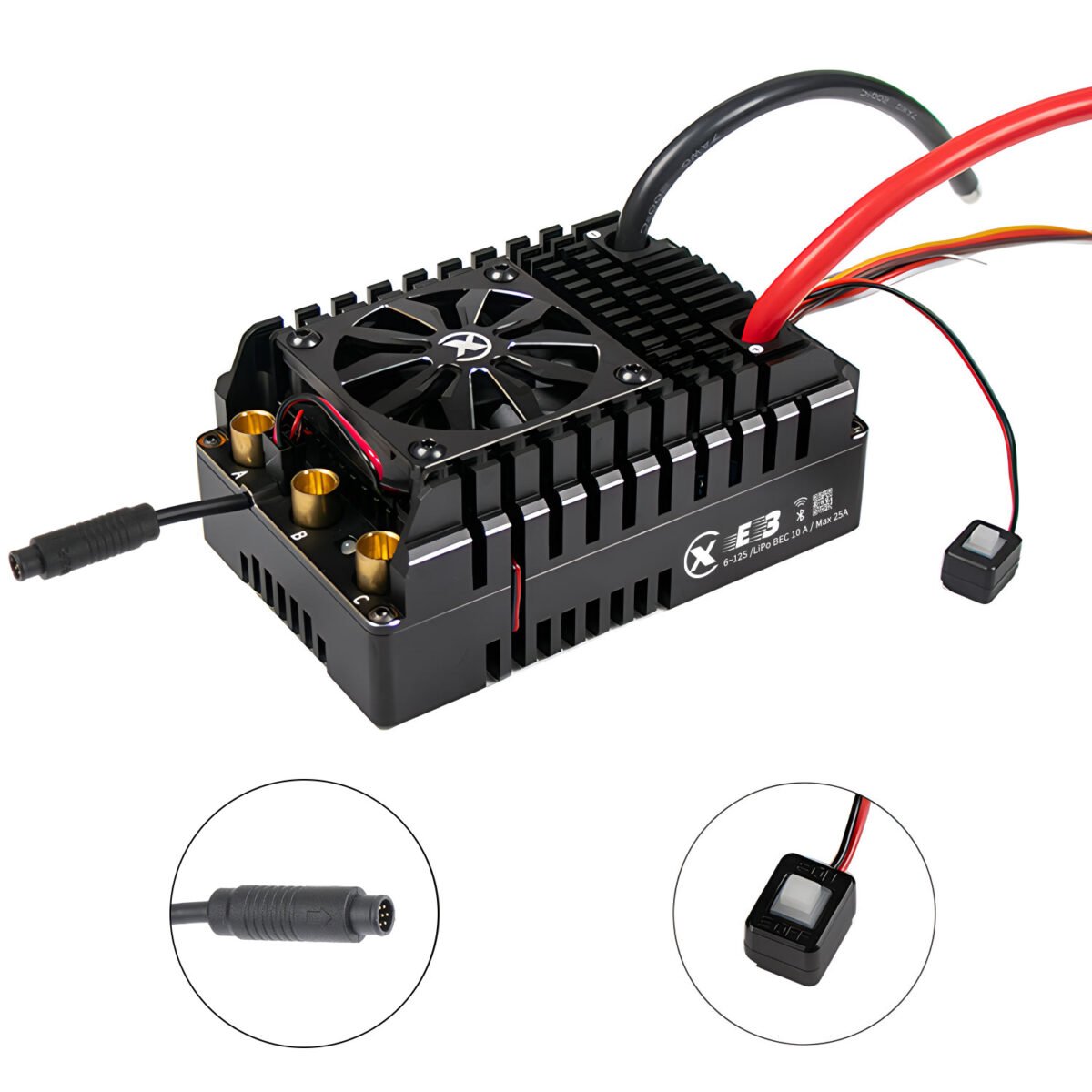

E3 RC Car Model Brushless Sensor ESC
- Extreme Power Capability: Supports 6-12S LiPo batteries, providing a continuous current of 300A and peak capacity below 900A.
- Dual Fan Smart Cooling: Features an intelligent dual-fan design that activates based on ESC temperature for superior heat management.
- Bluetooth Programming: Easily configure and adjust settings through a user-friendly mobile app.
- Adjustable Turbo Timing: Fine-tune motor performance with turbo timing adjustable from 0° to 26°.
- Anti-Spark Technology: Protects the ESC and battery from high-voltage surges.
- Wave-by-Wave Current Limiting: Ensures drivetrain and motor protection by preventing excessive pulse currents.
- Real-Time Data Telemetry: Monitor live operational data or access static records directly via the mobile app.
- High-Power BEC System: Supports up to 25A output for high-voltage servos with adjustable voltage settings (6V/7.4V/8.4V).
- IP67 Waterproof & Dustproof: Built for reliable performance in extreme environments.
| Name | E3 Electronic Speed Controller / 300A (6~12S) | |
| Type | BLDC Electronic Speed Controller for RC Cars | |
| Parameters | Continuous Current | 300A |
| Input | 6~12S LiPo | |
| BEC | 10A~25A Max | |
| Weight | ≈735g (with wire) | |
| Power/Motor Lines | 8AWG/8.0mm (plug) | |
| Waterproof | IP67 | |
| Working Temperature | -25~60℃ | |
| Size(L*W*H)/mm | 127.50*81.00*55.10mm | |
