Key Features

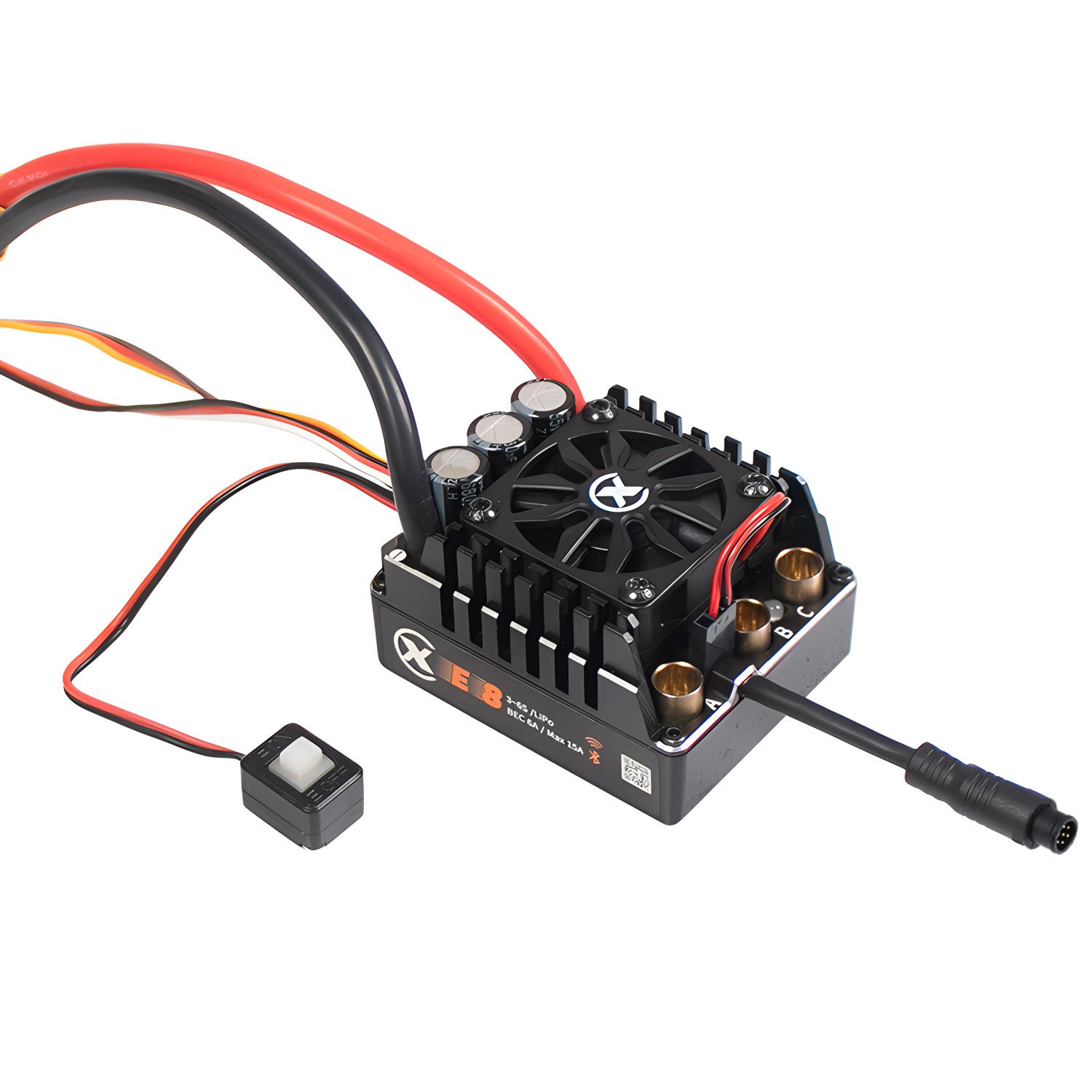

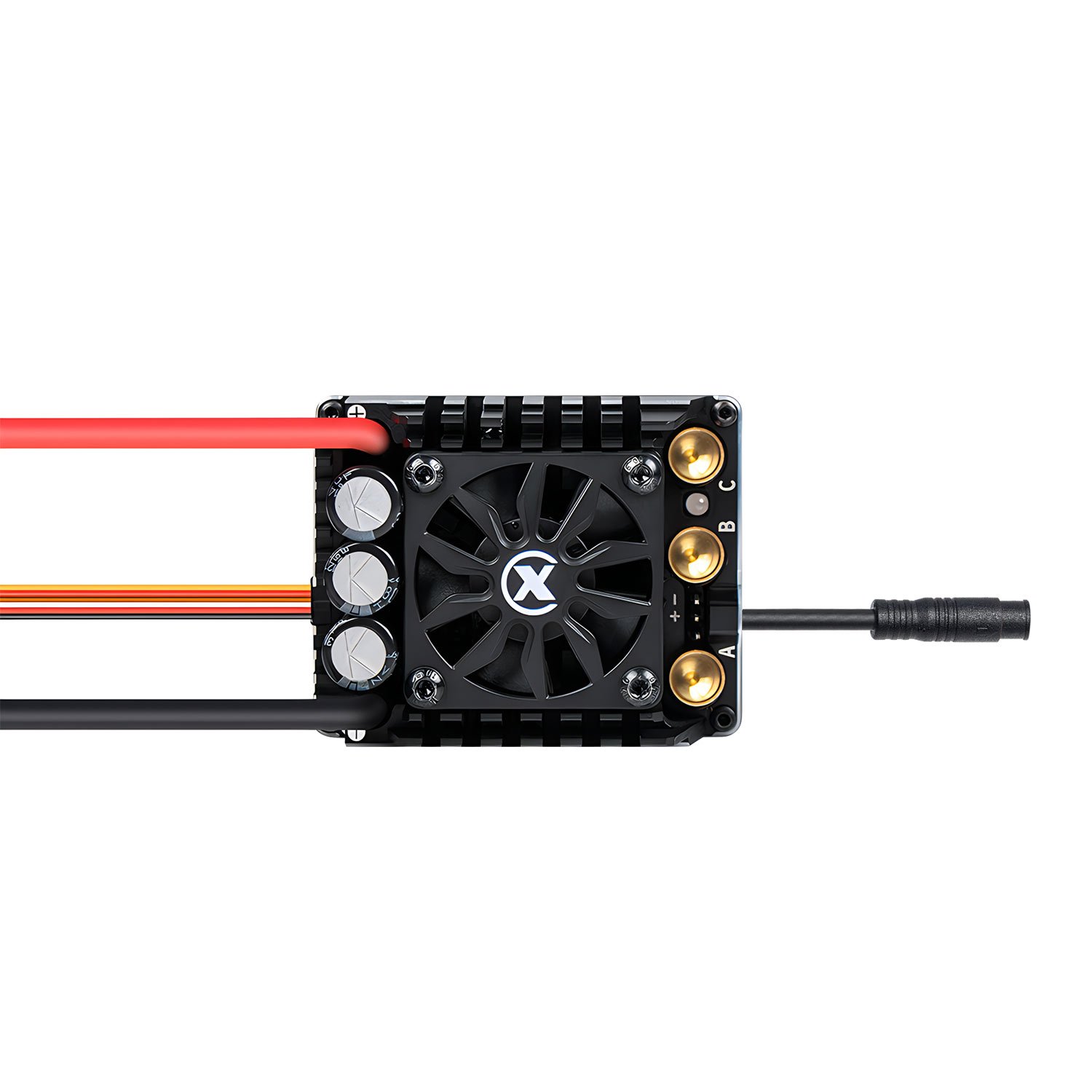

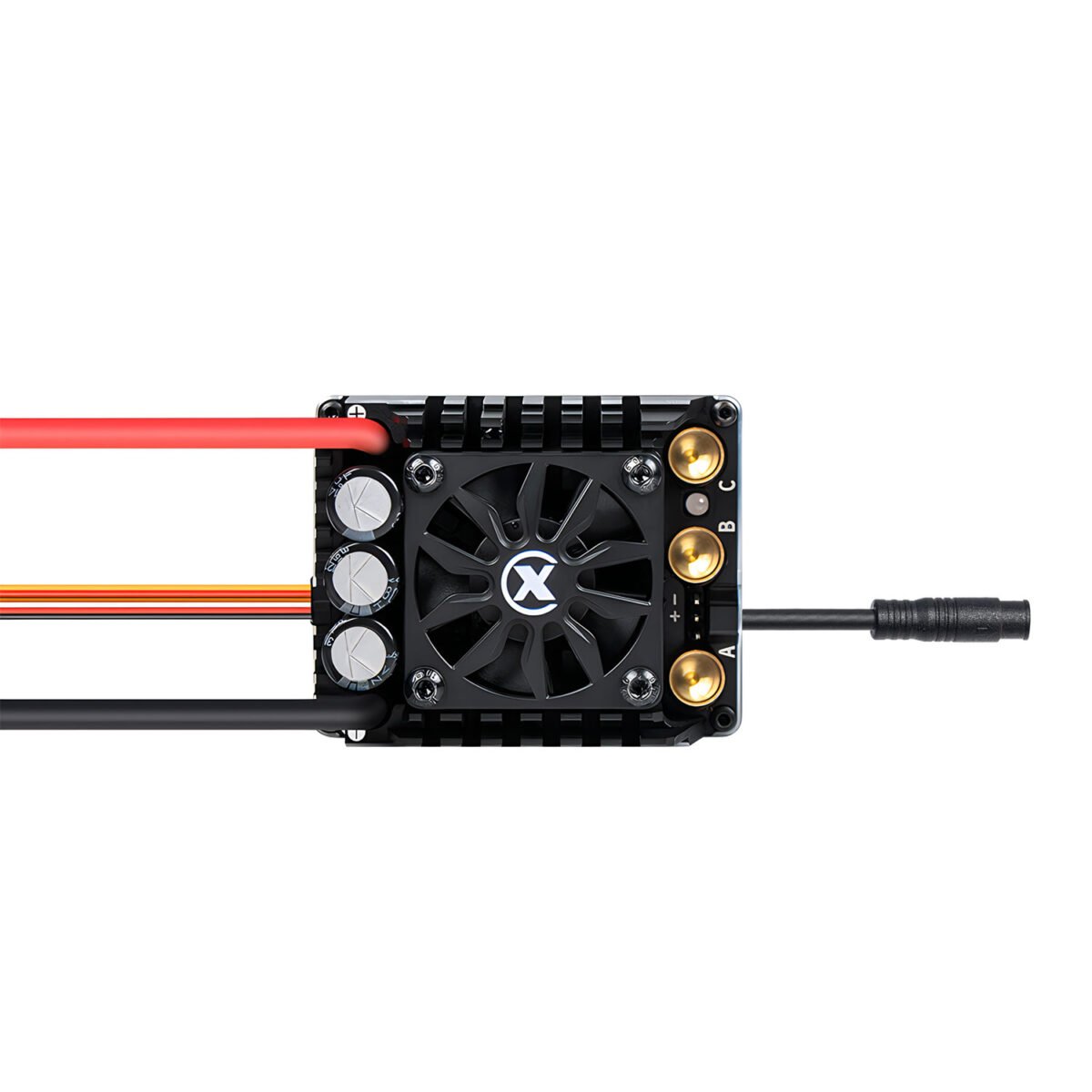

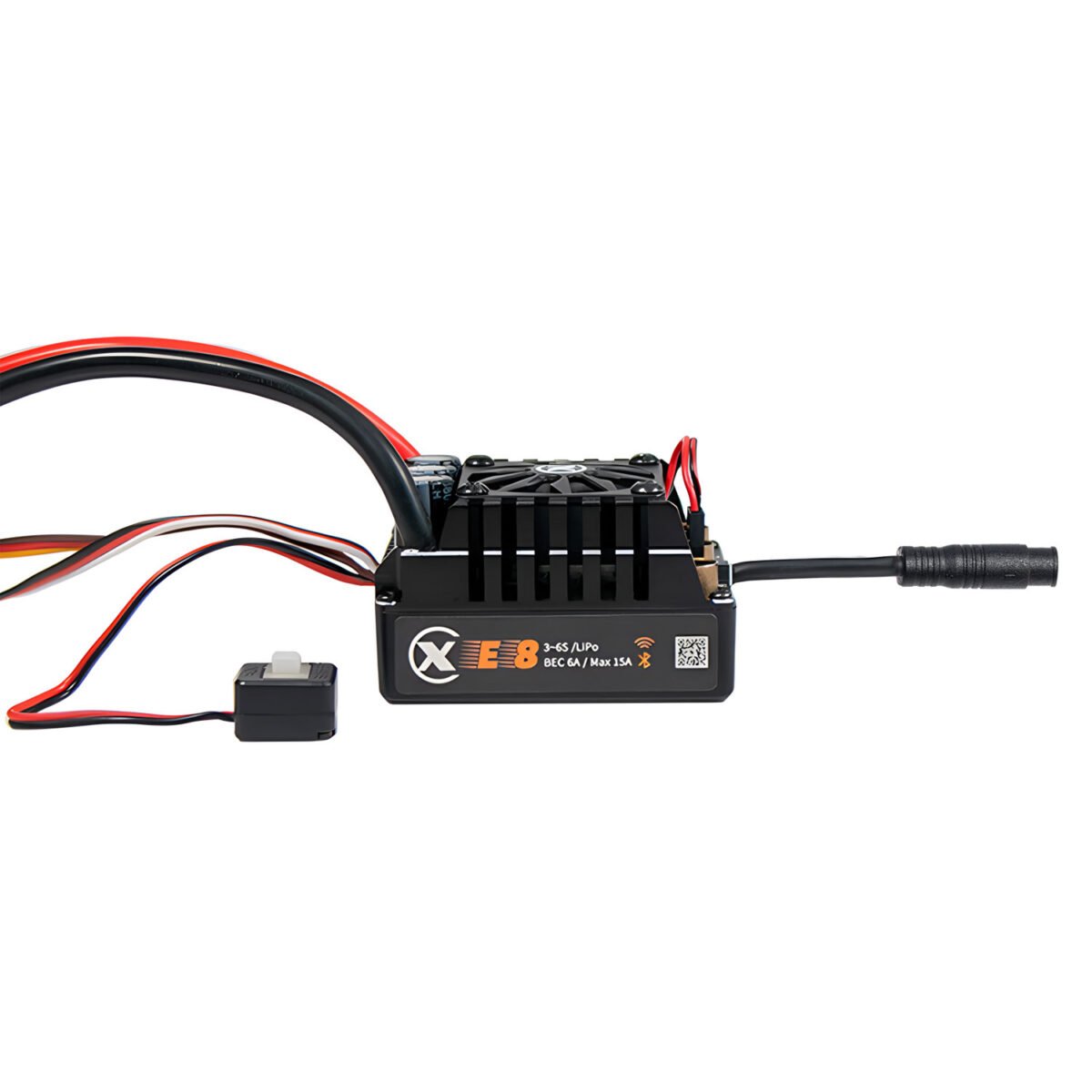

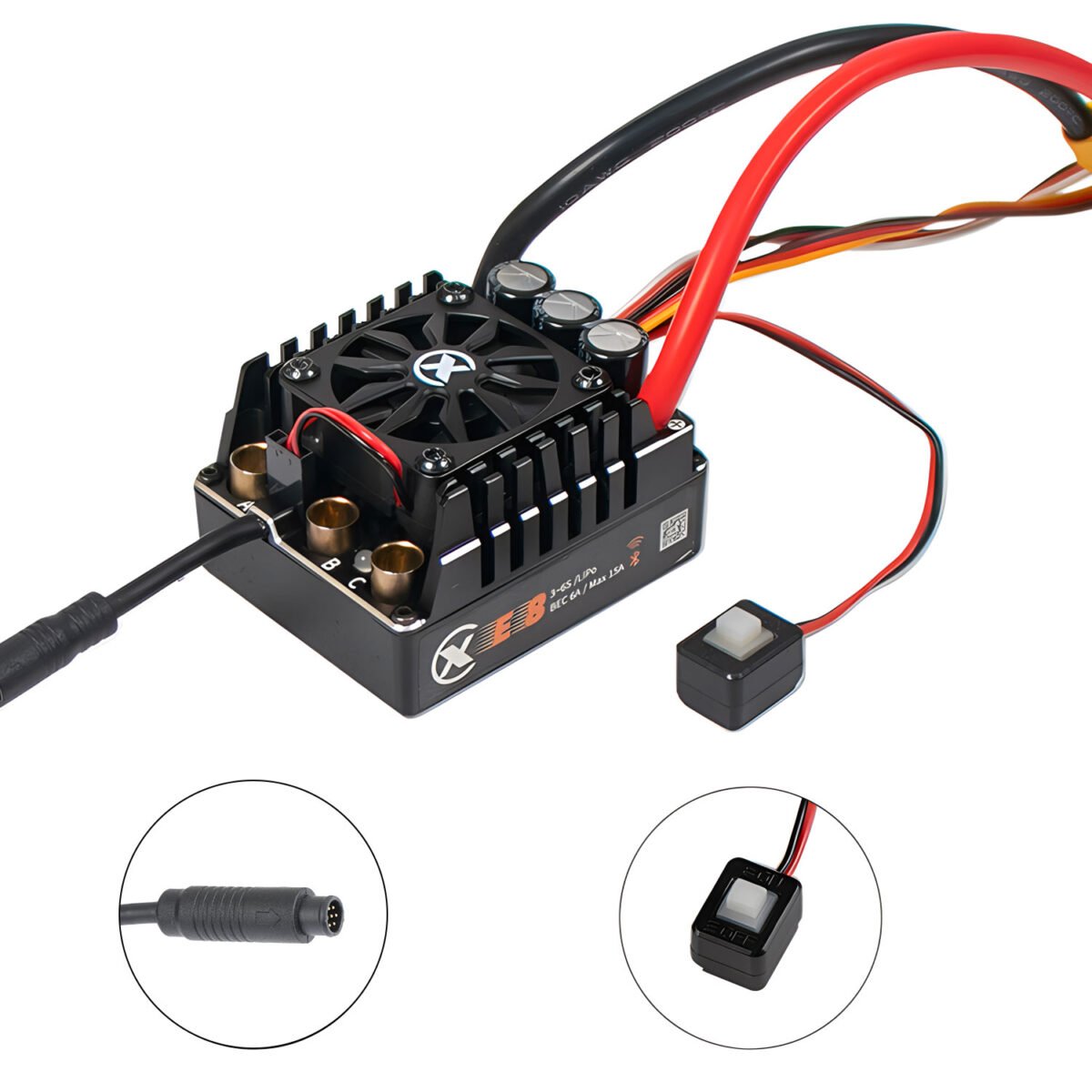

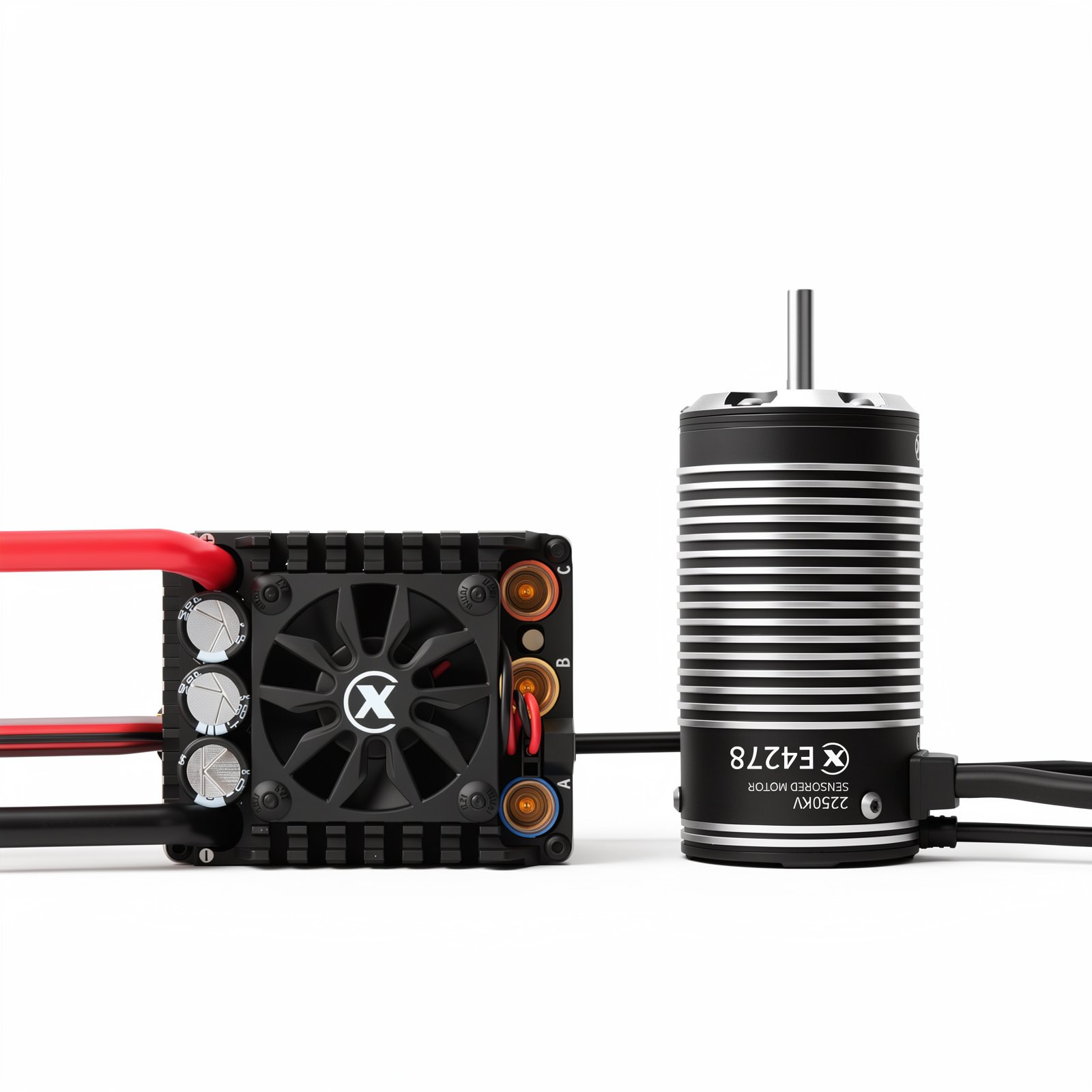

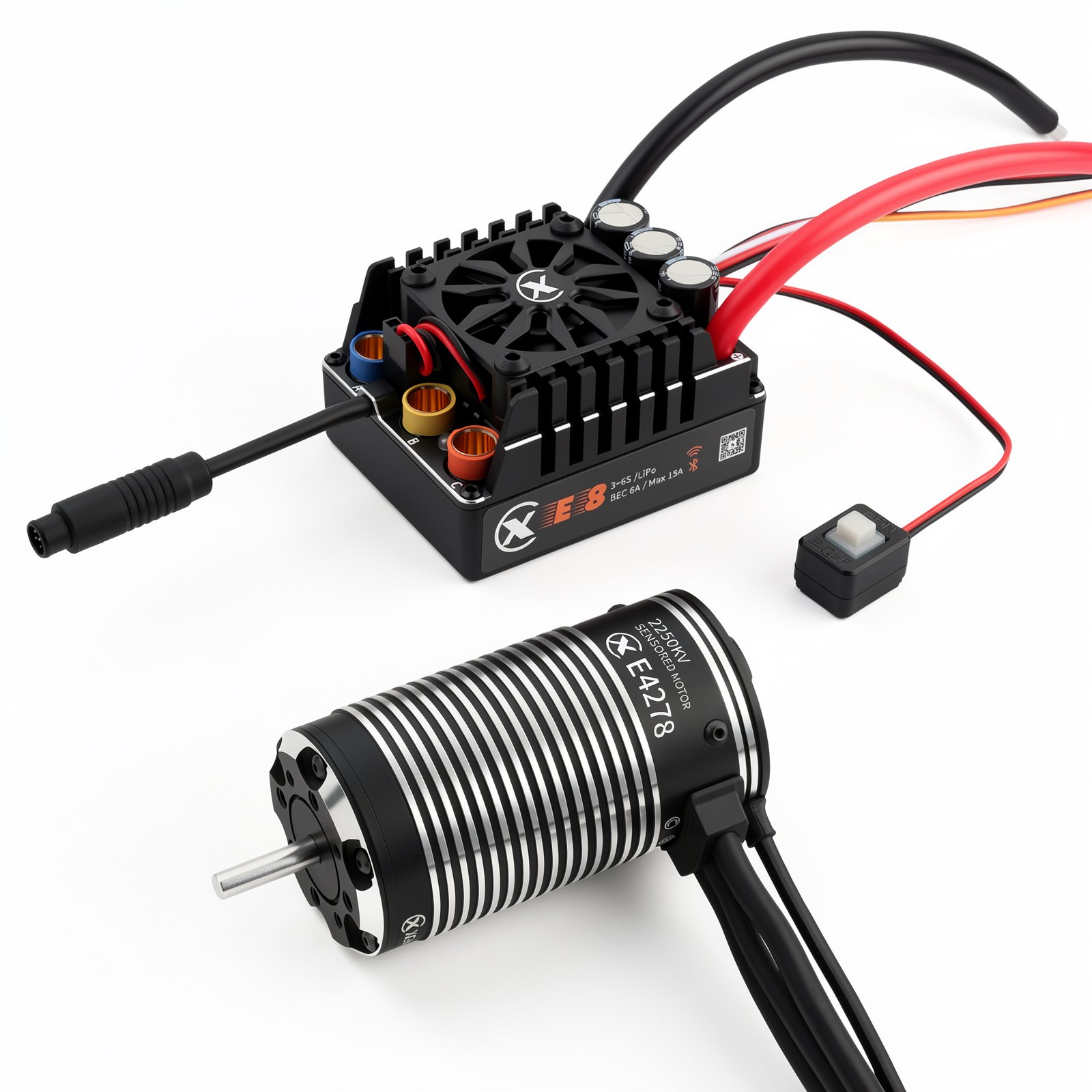

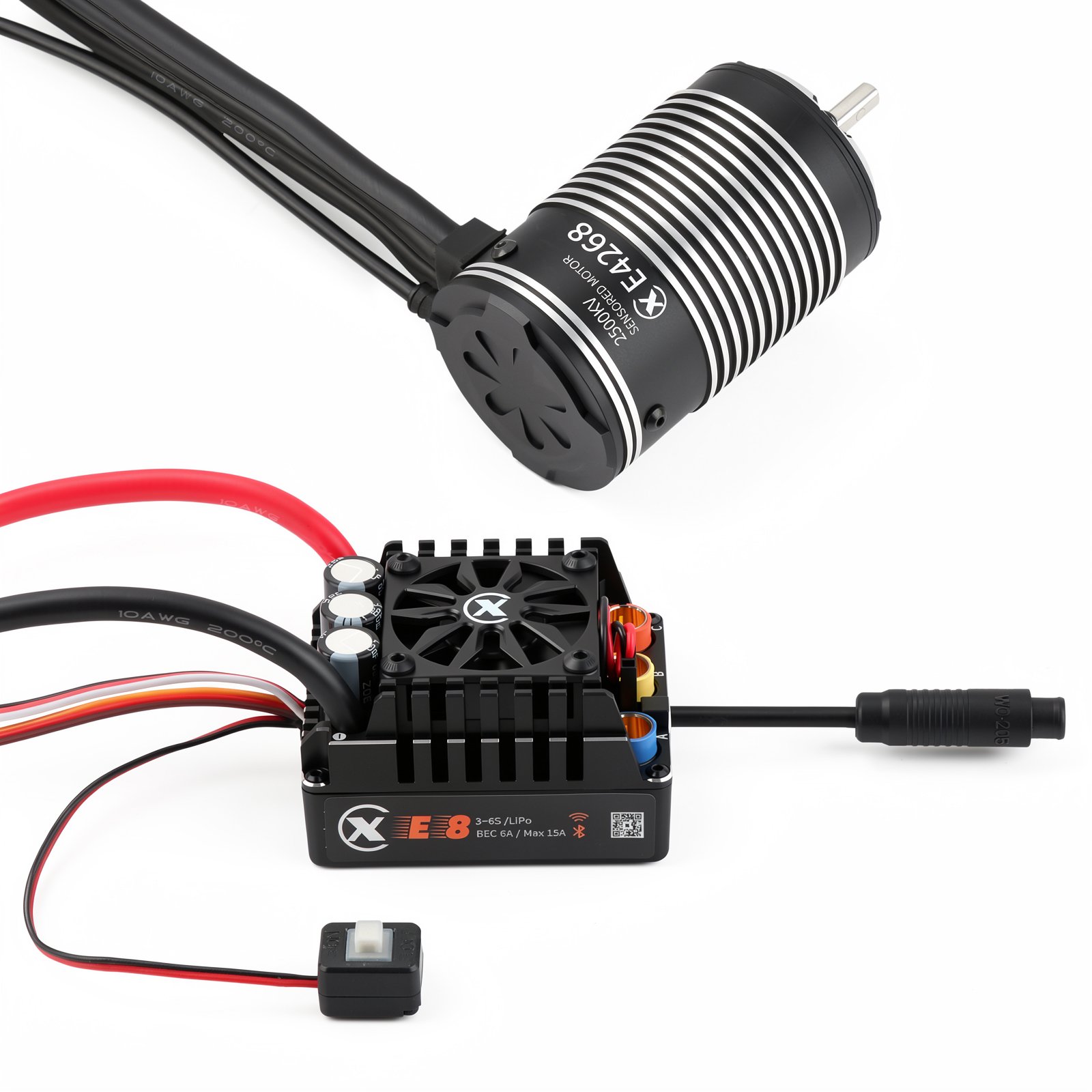

E8 RC Car Model Brushless Sensor ESC
- High Performance ESC: Supports 3-6S LiPo batteries with a continuous current output of 160A and a peak current capacity of less than 320A.
- Smart Cooling System: Automatic fan operation based on ESC temperature for efficient thermal management.
- Bluetooth Connectivity: Configure and program ESC settings directly through a mobile app.
- Adjustable Turbo Timing: Fine-tune motor performance with turbo timing adjustable from 0° to 26°.
- Anti-Spark Protection: Prevents damage to batteries and ESC under high-voltage conditions.
- Wave-by-Wave Current Limiting: Safeguards motor and drivetrain by reducing excessive pulse currents.
- Real-Time Data Logging: Monitor ESC operation live or access static logs via a mobile app.
- Robust BEC System: Provides up to 15A output to power high-voltage servos, with adjustable BEC voltage settings (6V/7.4V/8.4V).
- IP67-Rated Durability: Waterproof and dustproof design ensures reliable operation in harsh environments.
| Name | E8 Electronic Speed Controller / 160A (3~6S) | |
| Type | BLDC Electronic Speed Controller for RC Cars and Trucks | |
| Parameters | Continuous Current | 160A |
| Input | 3~6S LiPo | |
| BEC | 6A~15A Max | |
| Weight | ≈165g (with wire) | |
| Power/Motor Lines | 10AWG/6.5mm (plug) | |
| Waterproof | IP67 | |
| Working Temperature | -25~60℃ | |
| Size(L*W*H)/mm | 59.80*48.20*35.90mm | |
