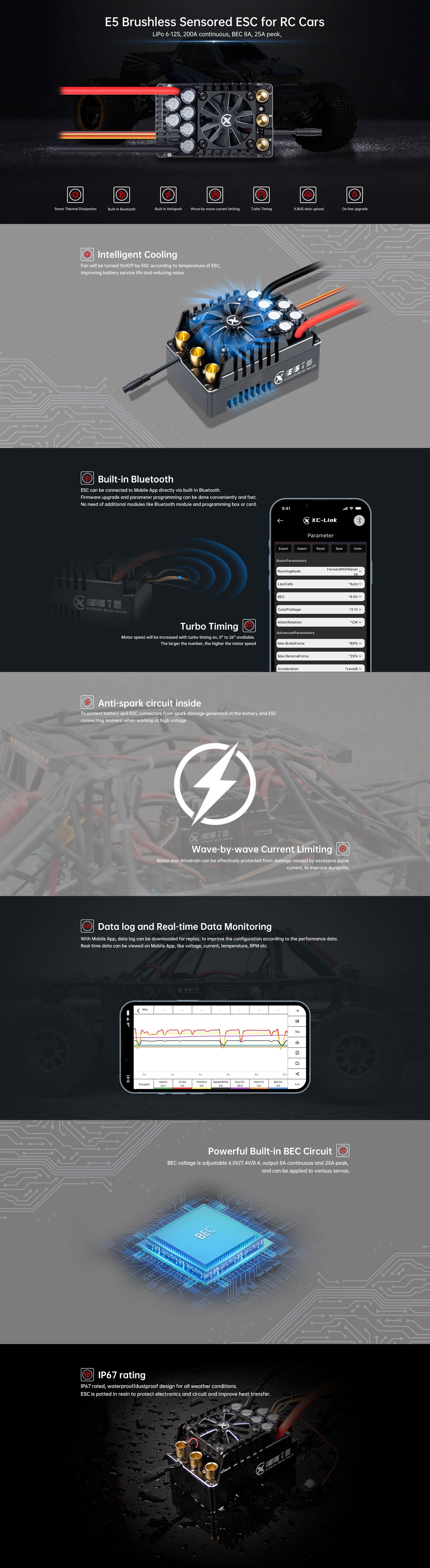

Key Features

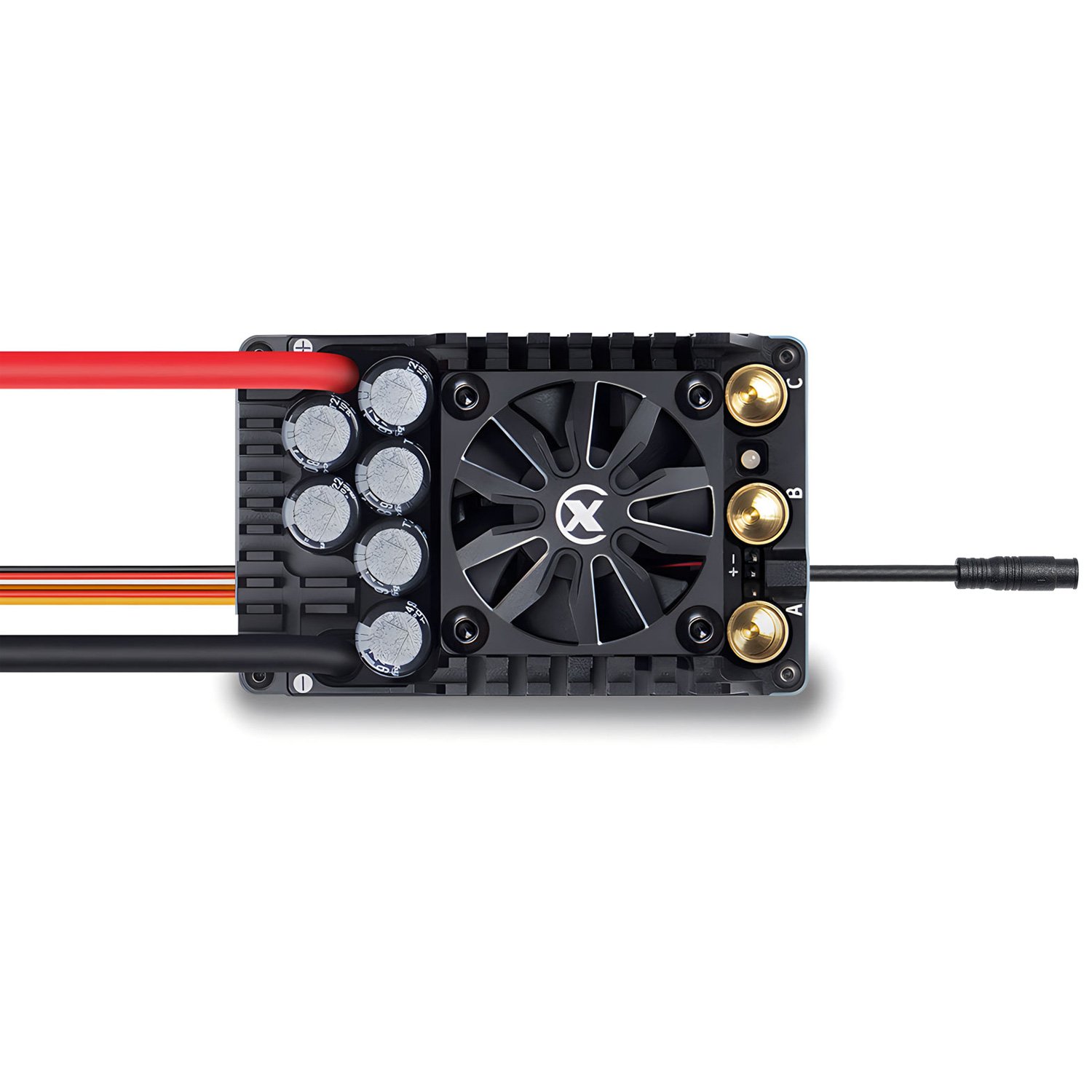

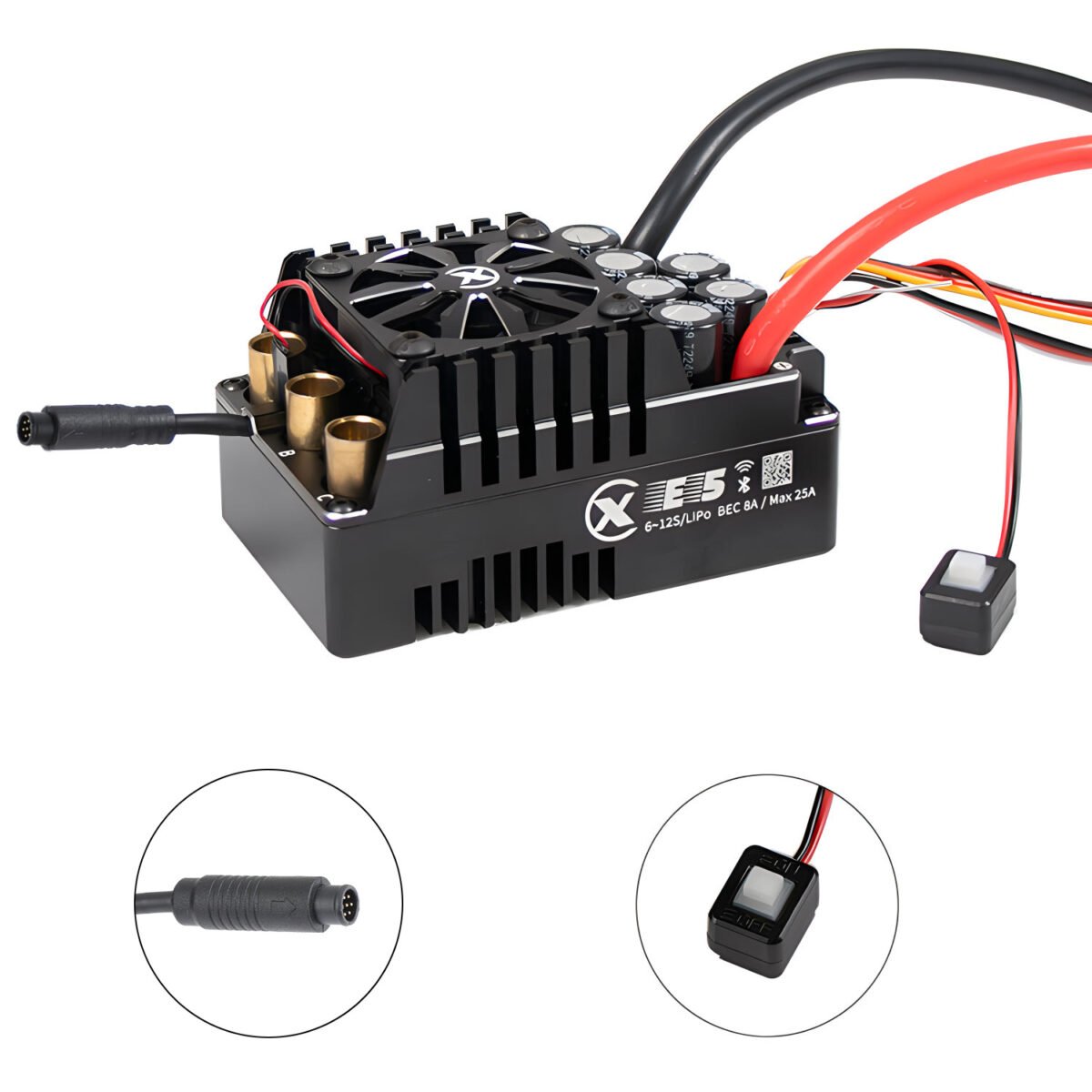

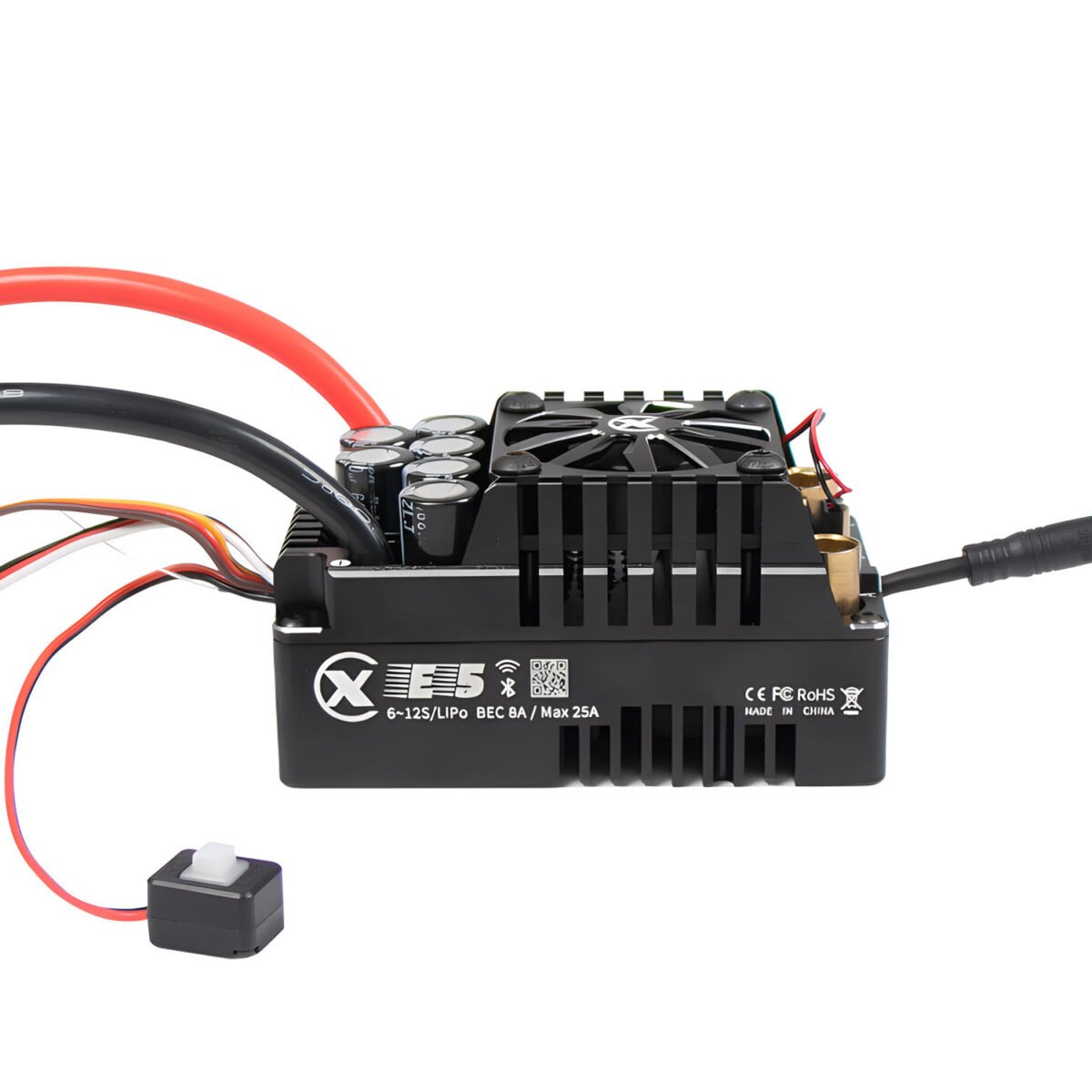

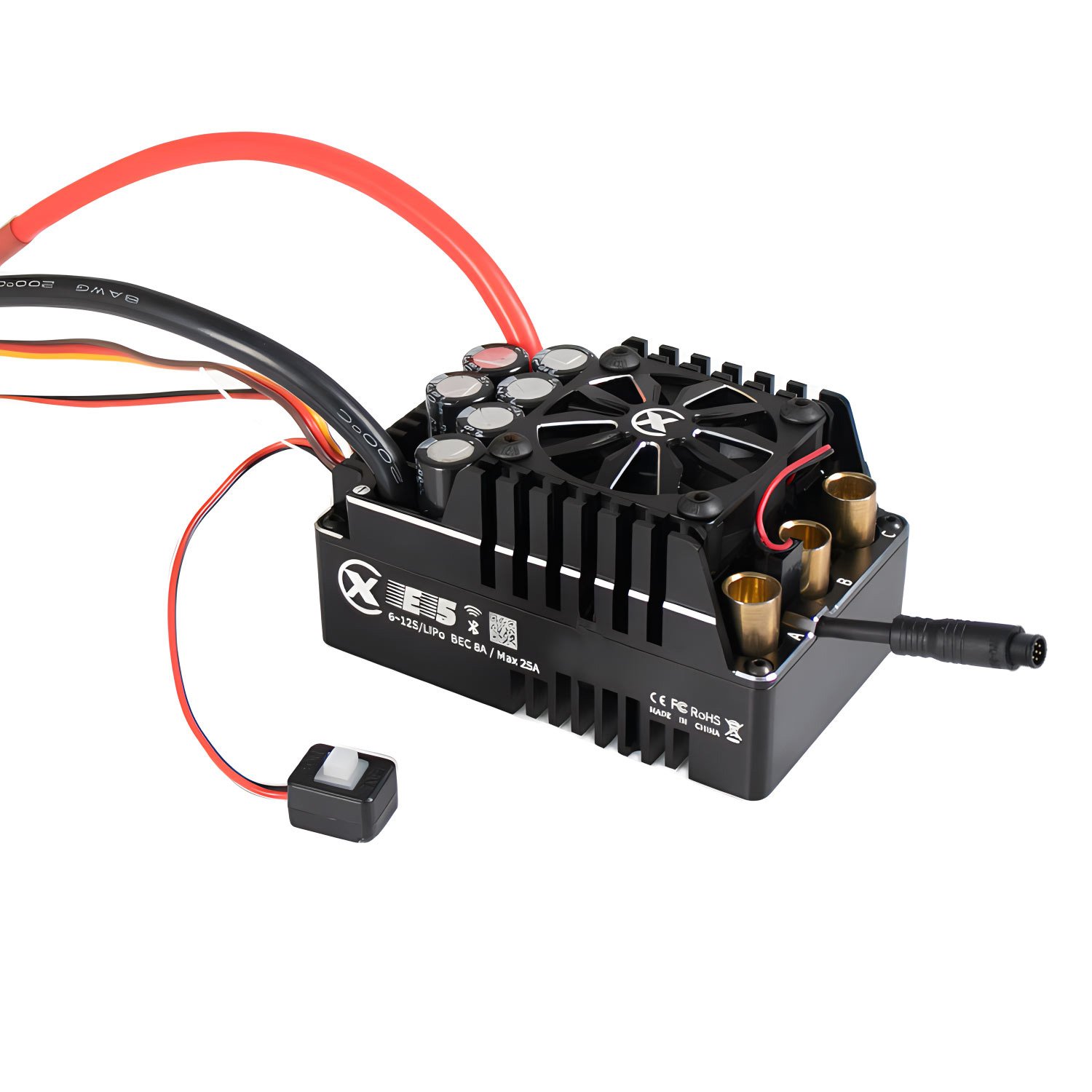

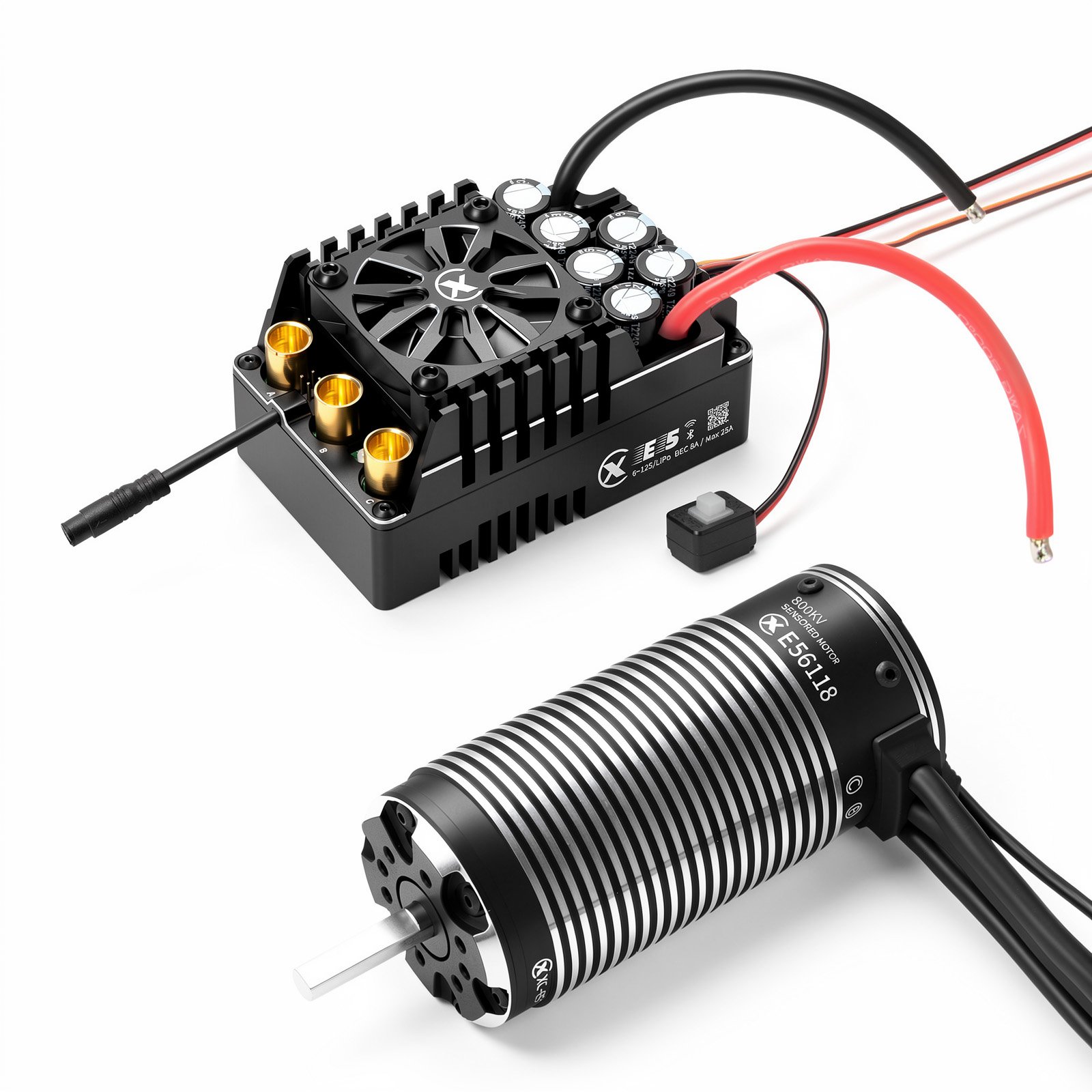

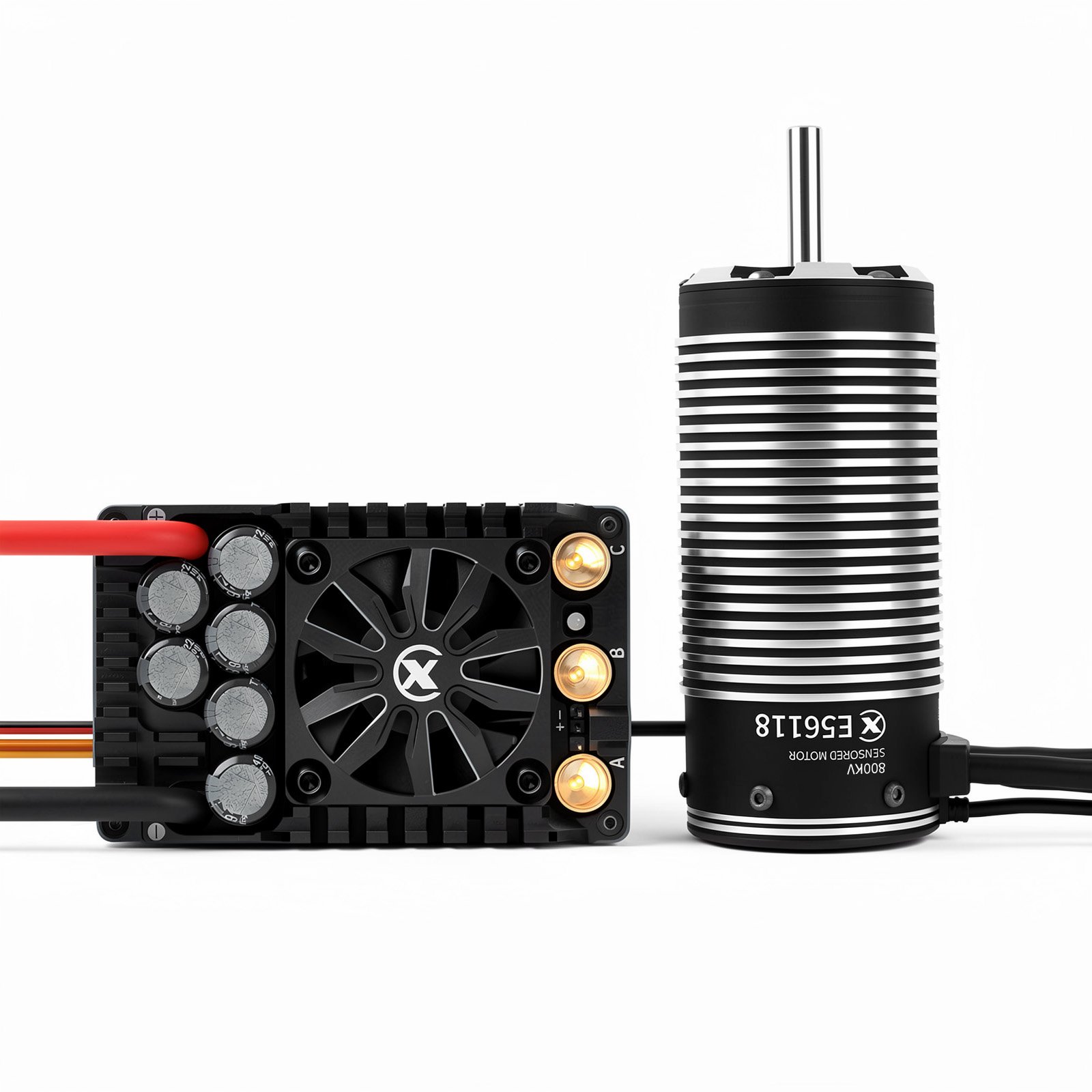

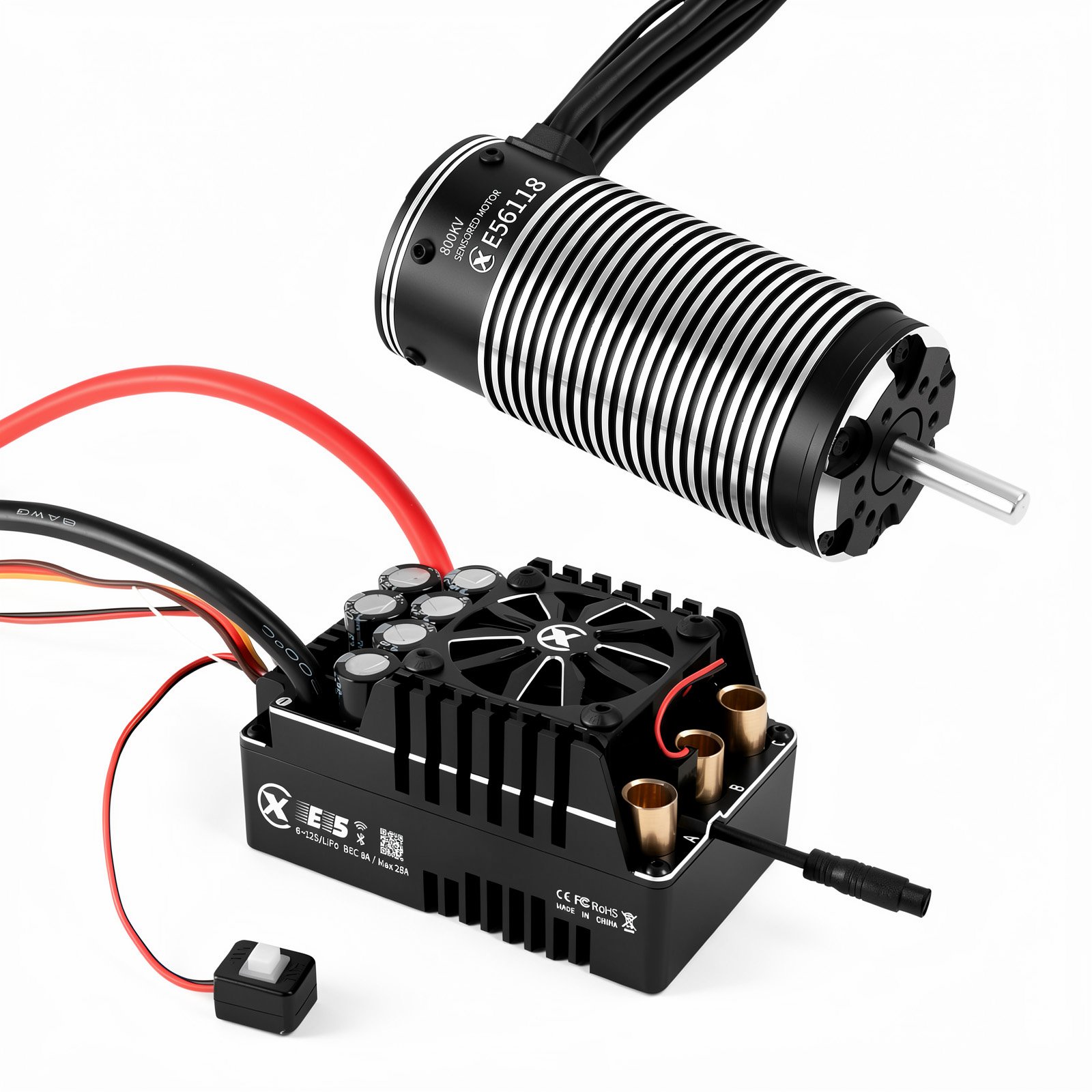

E5 RC Car Model Brushless Sensor ESC
- High Voltage Support: Designed for 6-12S LiPo batteries, with a continuous current rating of 200A and peak capacity below 400A.
- Smart Cooling Technology: Temperature-controlled fan ensures efficient heat management by automatically turning on/off.
- Bluetooth Programming: Conveniently adjust and program settings via a mobile app.
- Adjustable Turbo Timing: Fine-tune motor performance with turbo timing adjustable from 0° to 26°.
- Built-in Anti-Spark Protection: Prevents voltage spikes, safeguarding the ESC and battery during high-voltage operations.
- Wave-by-Wave Current Limiting: Protects the motor and drivetrain from excessive pulse currents.
- Real-Time Telemetry: Monitor ESC operation live and access static logs directly through the mobile app.
- Robust BEC System: Provides up to 25A output, compatible with high-voltage servos, and adjustable voltage settings (6V/7.4V/8.4V).
- IP67-Rated Durability: Waterproof and dustproof design for reliable performance in extreme conditions.
| Name | E5 Electronic Speed Controller / 200A (6~12S) | |
| Type | BLDC Electronic Speed Controller for RC Cars | |
| Parameters | Continuous Current | 200A |
| Input | 6~12S LiPo | |
| BEC | 8A~25A Max | |
| Weight | ≈425g (with wire) | |
| Power/Motor Lines | 8AWG/8.0mm (plug) | |
| Waterproof | IP67 | |
| Working Temperature | -25~60℃ | |
| Size(L*W*H)/mm | 93.80*59.00*50.60mm | |
