Key Features

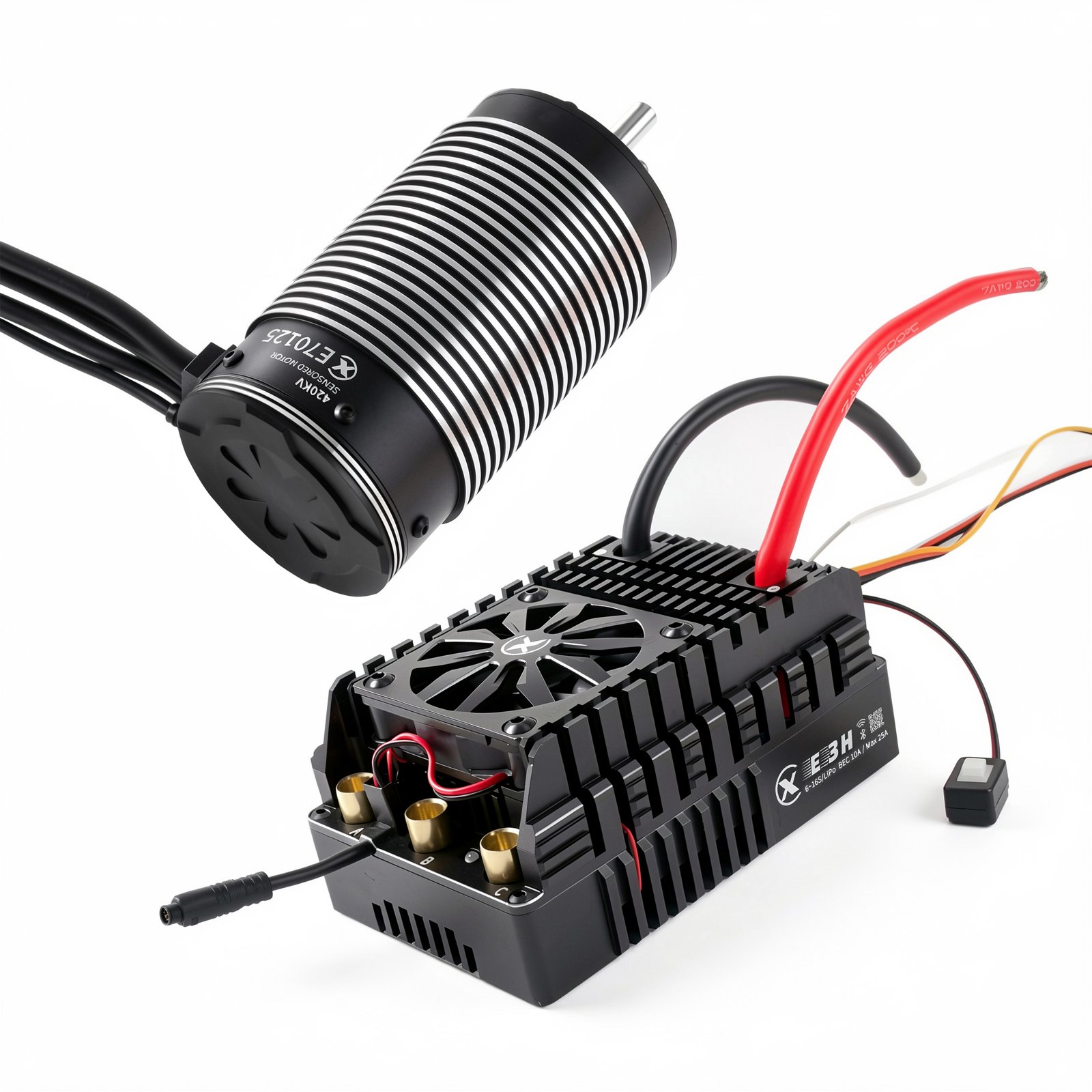

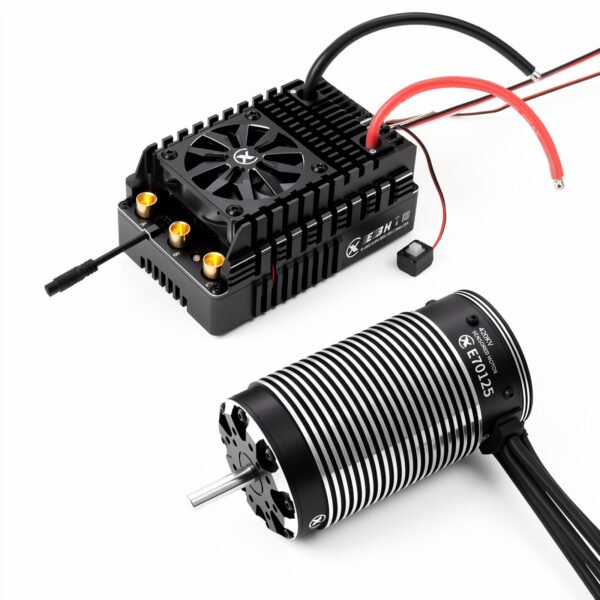

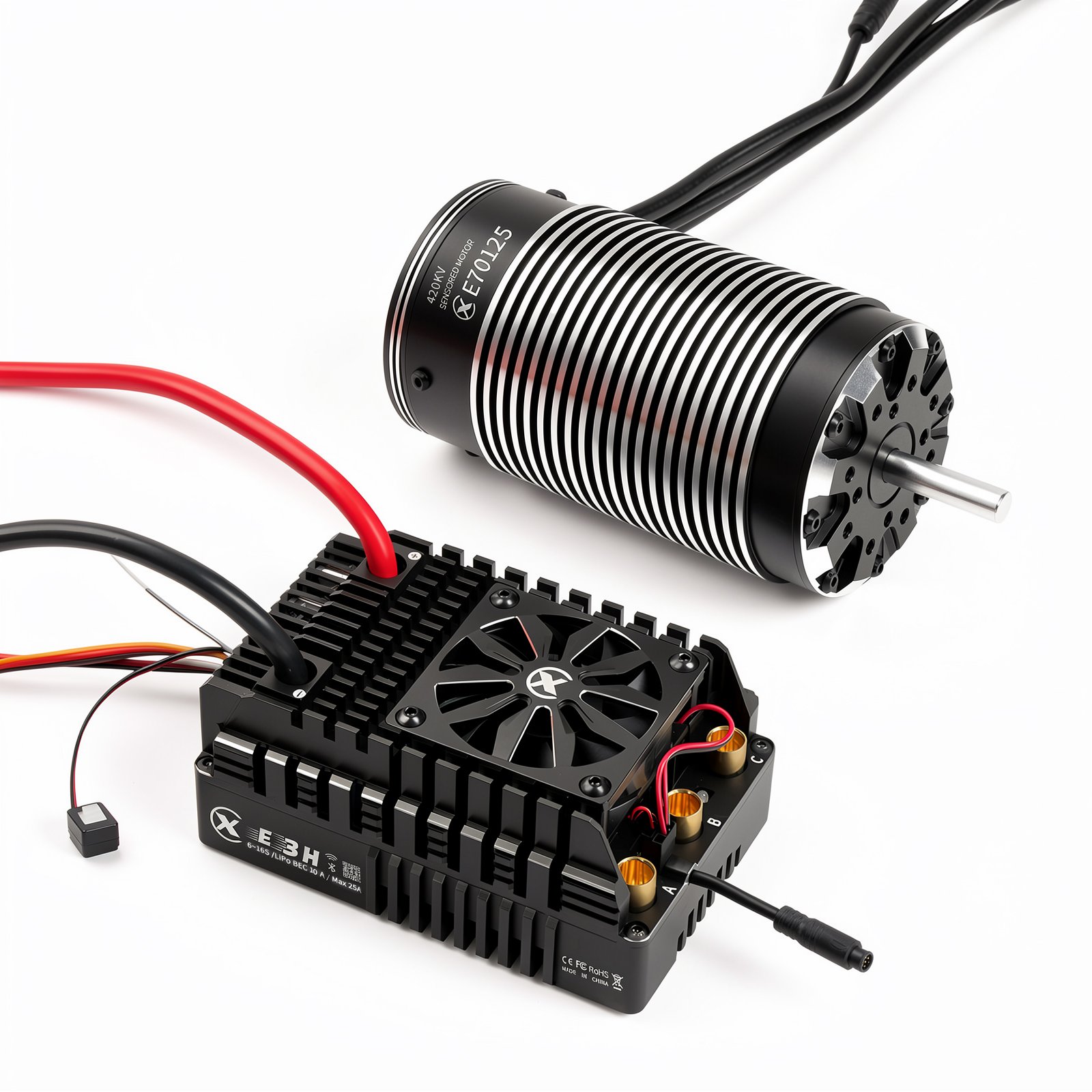

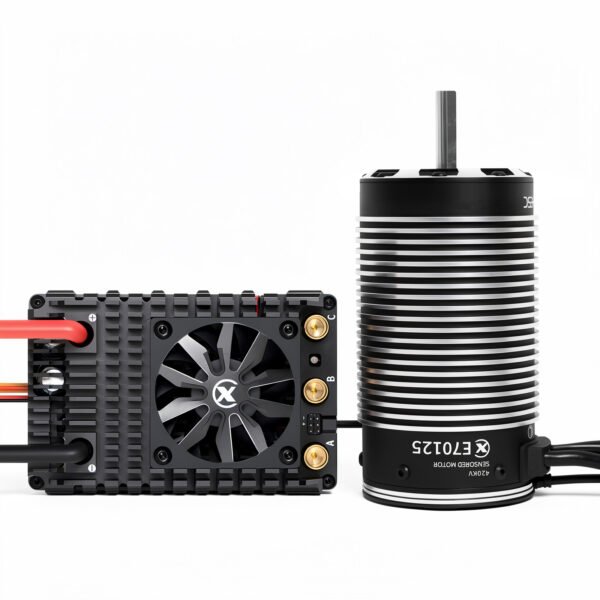

E3 H High-Voltage RC Car Model Brushless Sensor ESC
- High Voltage Performance: Supports 6-16S LiPo batteries, delivering a continuous current of 300A with peak capacity below 900A.
- Advanced Dual-Fan Cooling: Intelligent dual-fan system activates automatically based on ESC temperature for optimal thermal management.
- Bluetooth Programming: Effortlessly adjust and program ESC settings using a mobile app.
- Customizable Turbo Timing: Fine-tune motor speed with turbo timing adjustable from 0° to 26°.
- Anti-Spark Protection: Safeguards batteries and ESC during high-voltage operations.
- Wave-by-Wave Current Limiting: Prevents excessive pulse current, ensuring motor and drivetrain protection.
- Real-Time Data Monitoring: View live telemetry and access static operation records directly via the mobile app.
- Powerful BEC System: Provides up to 25A output, supporting high-voltage servos with adjustable voltage options (6V/7.4V/8.4V).
- IP67 Waterproof & Dustproof: Engineered for reliable operation in extreme conditions.
| Name | E3 H Electronic Speed Controller / 300A (6~16S) | |
| Type | BLDC Electronic Speed Controller for RC Cars | |
| Parameters | Continuous Current | 300A |
| Input | 6~16S LiPo | |
| BEC | 10A~25A Max | |
| Weight | ≈782g (with wire) | |
| Power/Motor Lines | 7AWG/8.0mm (plug) | |
| Waterproof | IP67 | |
| Working Temperature | -25~60℃ | |
| Size(L*W*H)/mm | 127.50*85.00*59.50mm | |
