Key Features

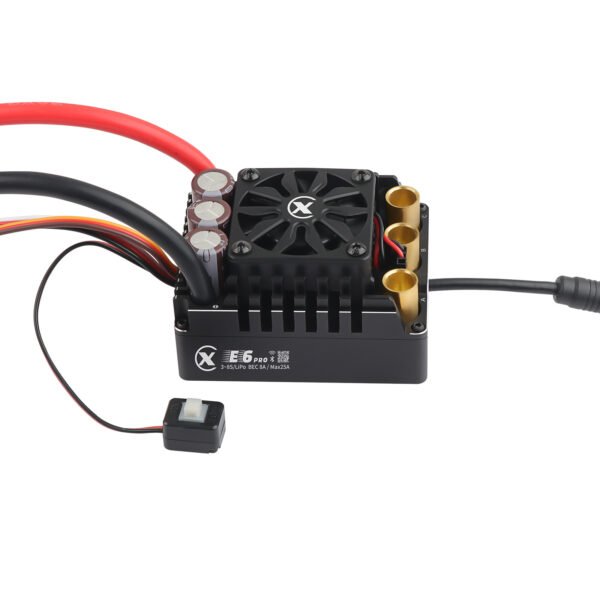

E6PRO RC Car Model Brushless Sensor ESC
- High Power ESC: Compatible with 3-8S LiPo batteries, offering a continuous current of 300A and a peak capacity below 1000A.
- Smart Cooling System: Intelligent fan adjusts operation based on ESC temperature for efficient cooling.
- Bluetooth Programming: Easily configure and program settings via a mobile app.
- Customizable Turbo Timing: Adjust turbo timing from 0° to 26° to optimize motor performance.
- Anti-Spark Protection: Protects the battery and ESC from voltage spikes during high-voltage operations.
- Wave-by-Wave Current Limiting: Prevents excessive pulse current, ensuring drivetrain and motor safety.
- Real-Time Data Monitoring: View operational logs live or access static data using the mobile app.
- Powerful BEC System: Delivers up to 25A output, supporting high-voltage servos with adjustable voltage settings (6V/7.4V/8.4V).
- IP67 Waterproof & Dustproof: Designed to perform reliably in extreme environments.
| Name | E6PRO Electronic Speed Controller / 300A (3~8S) | |
| Type | BLDC Electronic Speed Controller for RC Cars | |
| Parameters | Continuous Current | 300A |
| Input | 3~8S LiPo | |
| BEC | 8A~25A Max | |
| Weight | ≈239g (with wire) | |
| Power/Motor Lines | 8AWG/8.0mm (plug) | |
| Waterproof | IP67 | |
| Working Temperature | -25~60℃ | |
| Size(L*W*H)/mm | 71.7*56.8*42.30mm | |
| Motor-Rec | E4990/E5690 motor | |
