Key Features

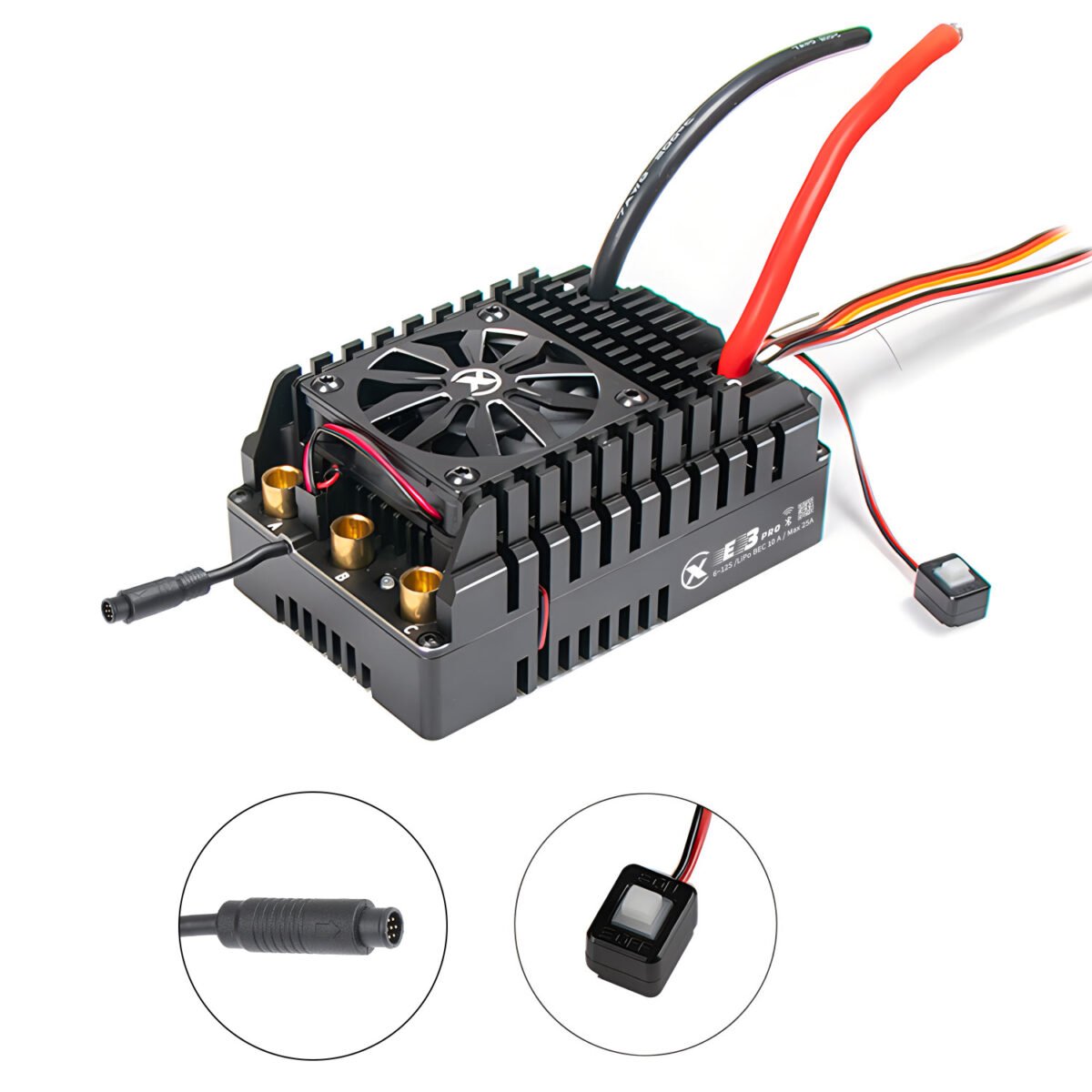

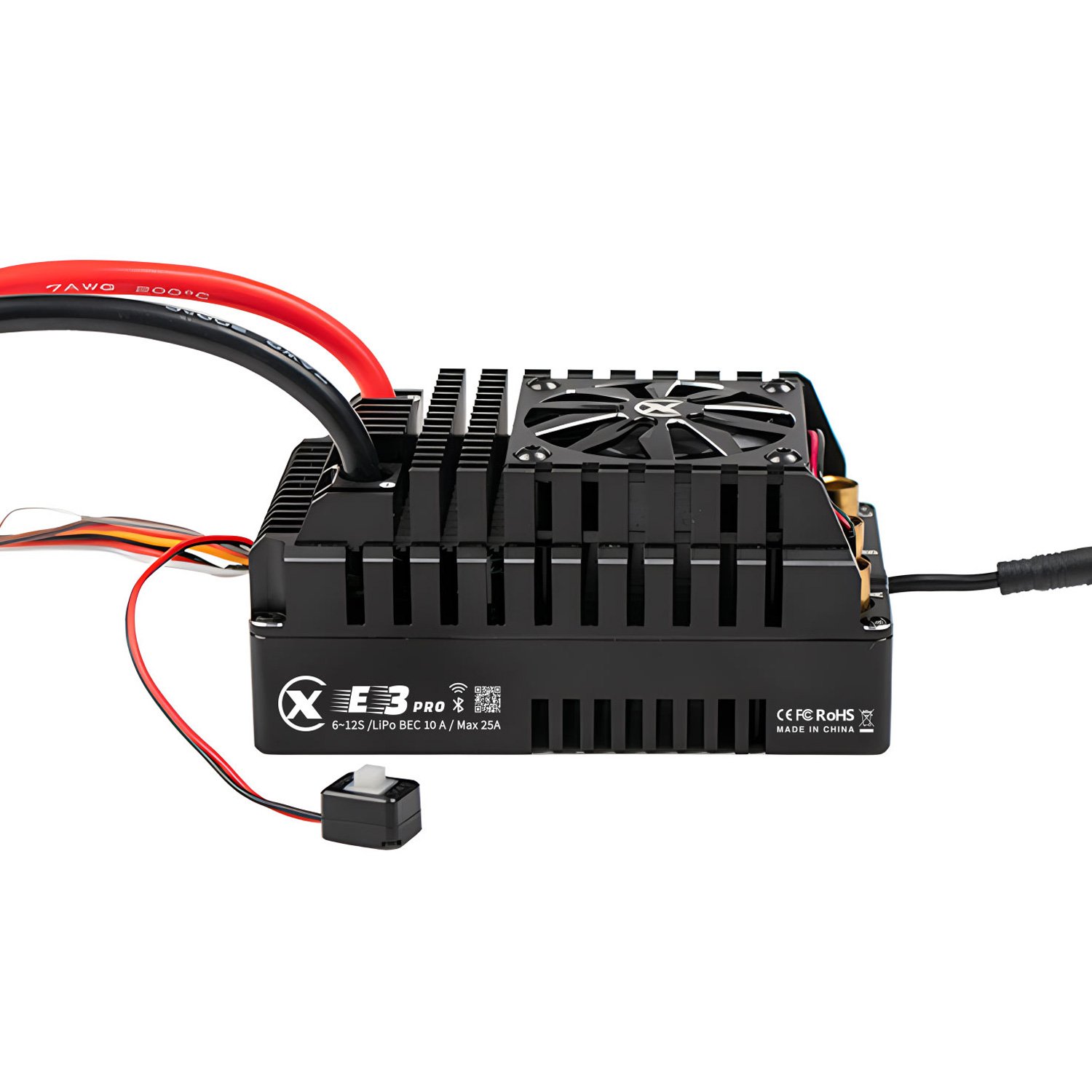

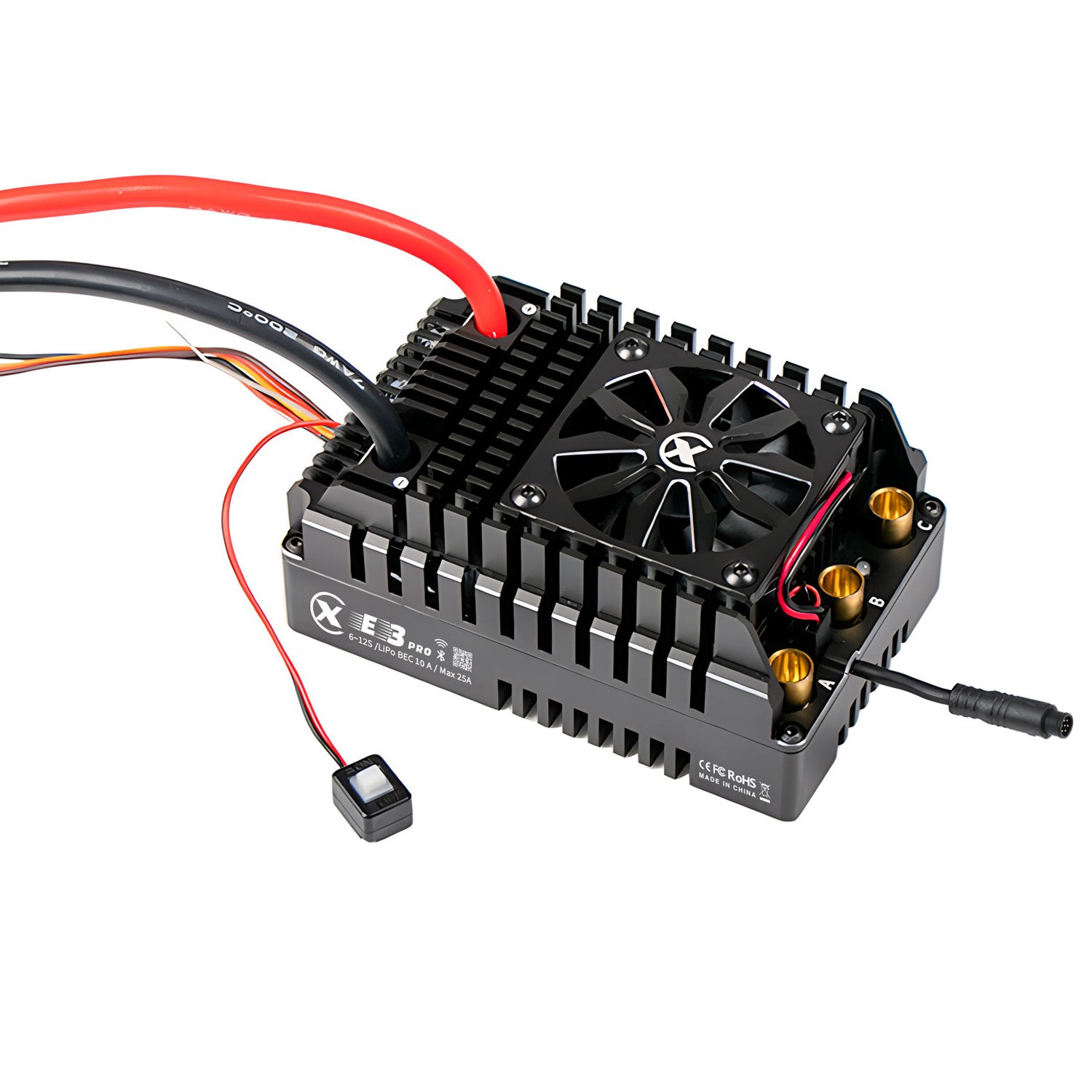

E3 PRO RC Car Model Brushless Sensor ESC
- High Power Capacity: Supports 6-12S LiPo batteries, providing a continuous current of 400A and peak current capacity below 1000A.
- Advanced Dual-Fan Cooling: Intelligent dual-fan design activates based on ESC temperature to ensure efficient thermal management.
- Bluetooth Connectivity: Easily configure and program settings via a mobile app.
- Turbo Timing Adjustment: Allows precise motor speed control with turbo timing adjustable from 0° to 26°.
- Anti-Spark Protection: Prevents voltage spikes, protecting the ESC and battery during high-power operations.
- Wave-by-Wave Current Limiting: Reduces excessive pulse currents, enhancing motor and drivetrain safety.
- Real-Time Data Logging: Monitor live telemetry and access static data records via the mobile app.
- High-Power BEC System: Supports up to 25A, compatible with various high-voltage servos, with adjustable voltage settings (6V/7.4V/8.4V).
- IP67 Waterproof & Dustproof: Designed for reliable operation in extreme environments.
| Name | E3 PRO Electronic Speed Controller / 400A (6~12S) | |
| Type | BLDC Electronic Speed Controller for RC Cars | |
| Parameters | Continuous Current | 400A |
| Input | 6~12S LiPo | |
| BEC | 10A~25A Max | |
| Weight | ≈768g (with wire) | |
| Power/Motor Lines | 7AWG/8.0mm (plug) | |
| Waterproof | IP67 | |
| Working Temperature | -25~60℃ | |
| Size(L*W*H)/mm | 127.50*81.00*59.50mm | |
