Key Features

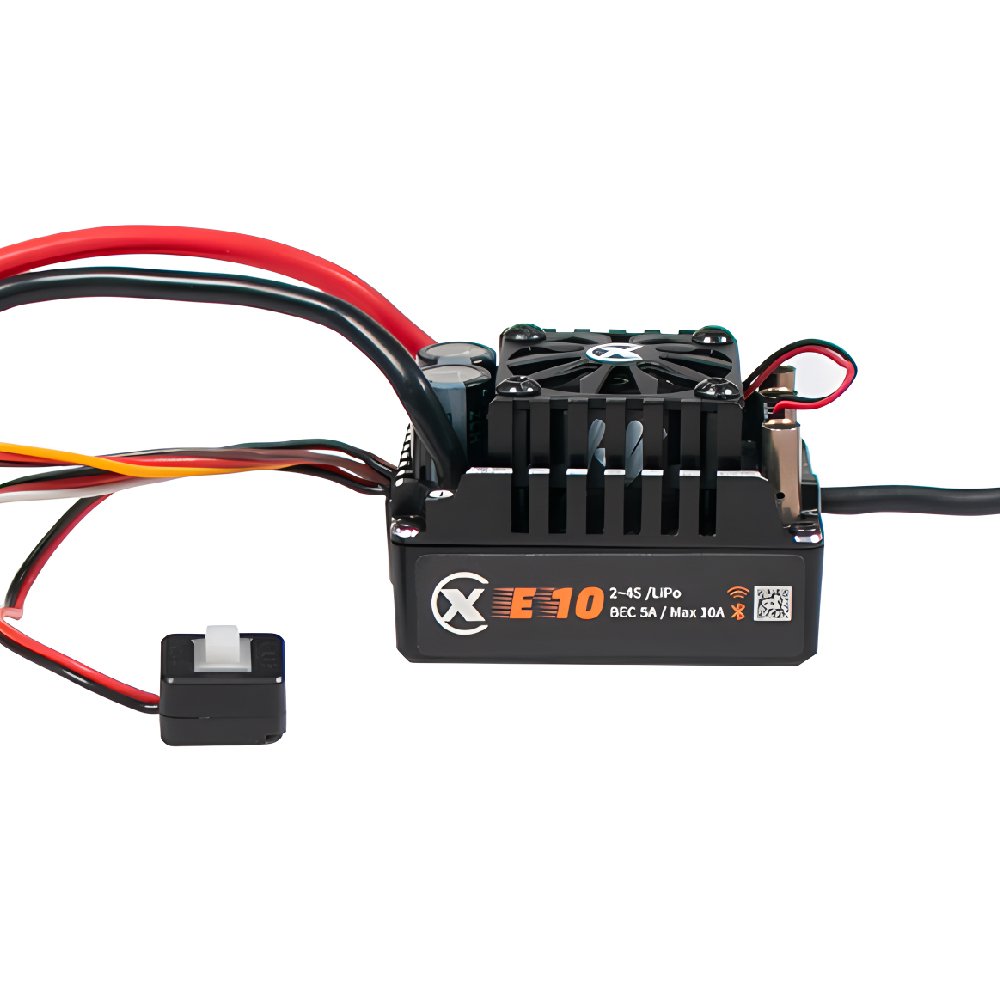

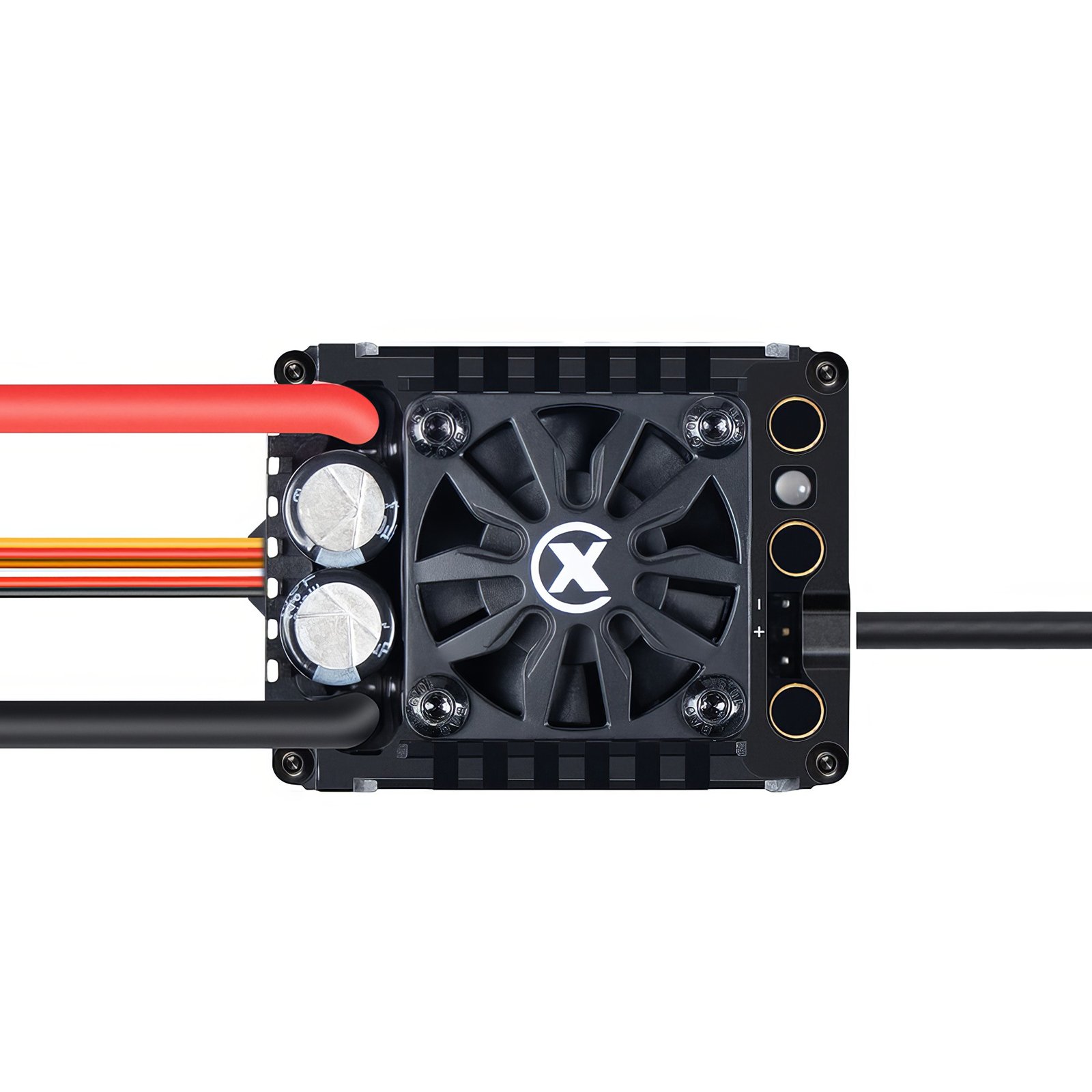

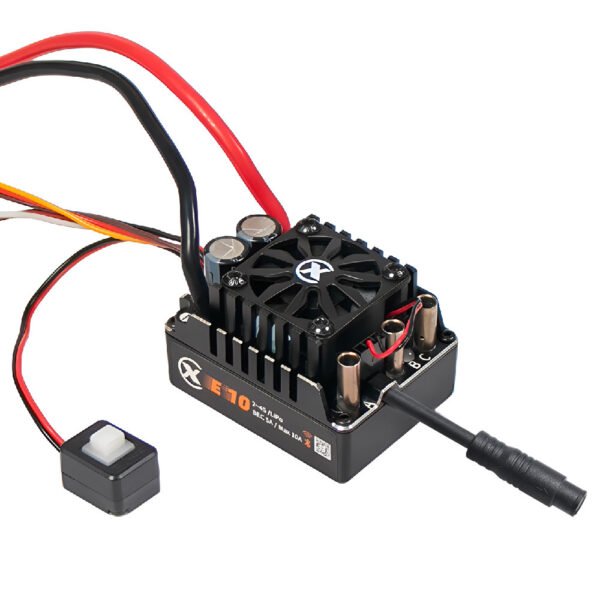

E10 RC Car Model Brushless Sensor ESC
- High Power ESC: Supports 2-4S LiPo batteries, BEC current up to 10A, with a maximum ESC amperage rating of 140A.
- Smart Cooling System: Intelligent fan automatically turns on/off based on ESC temperature for efficient heat management.
- Bluetooth Integration: Adjust settings and program ESC directly via a mobile app.
- Turbo Timing Adjustment: Fine-tune motor speed with turbo timing adjustable from 0° to 26°.
- Anti-Spark Protection: Built-in anti-spark technology safeguards batteries and ESC during high-voltage operations.
- Wave-by-Wave Current Limiting: Prevents excessive pulse currents, protecting the motor and drivetrain. Peak current capacity: less than 280A.
- Real-Time Data Logging: Monitor operation records in real-time or view static logs via the mobile app.
- Powerful BEC Functionality: Supports up to 10A for driving high-voltage servos, with adjustable BEC output (6V/7.4V/8.4V).
- IP67 Waterproof & Dustproof: Ensures smooth operation in harsh environments.
| E10 Electronic Speed Controller / 140A (2~4S) | ||
| Type | BLDC Electronic Speed Controller for RC Cars | |
| Parameters | Continuous Current | 140A |
| Input | 2~4S LiPo | |
| BEC | 5A~10A Max | |
| Weight | ≈118g (with wire) | |
| Power/Motor Lines | 12AWG/4.0mm (plug) | |
| Waterproof | IP67 | |
| Working Temperature | -25~60℃ | |
| Size(L*W*H)/mm | 52.80*39.80*35.30mm | |
