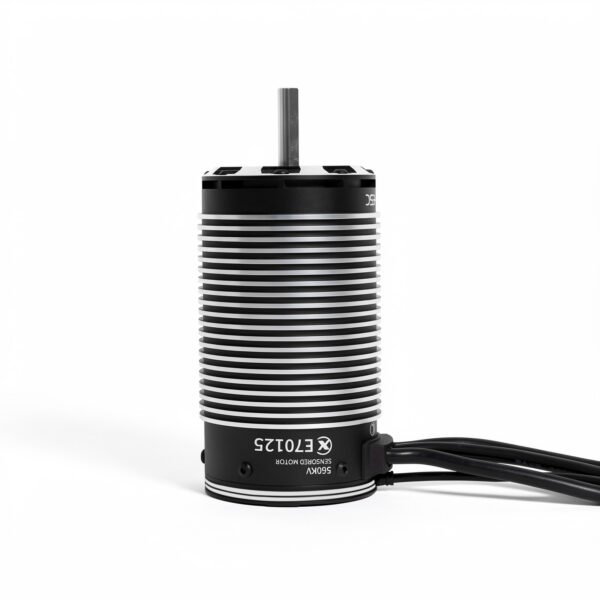

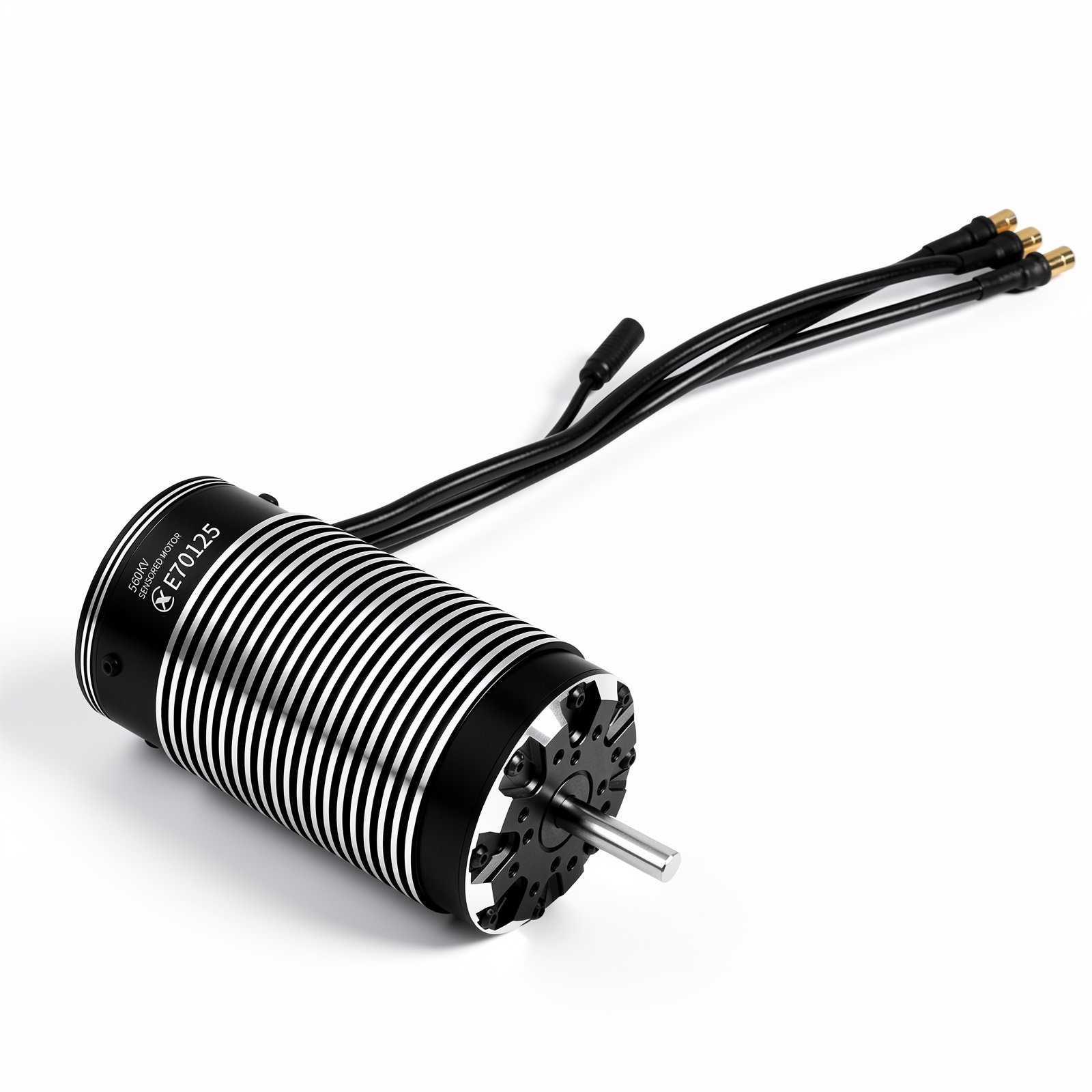

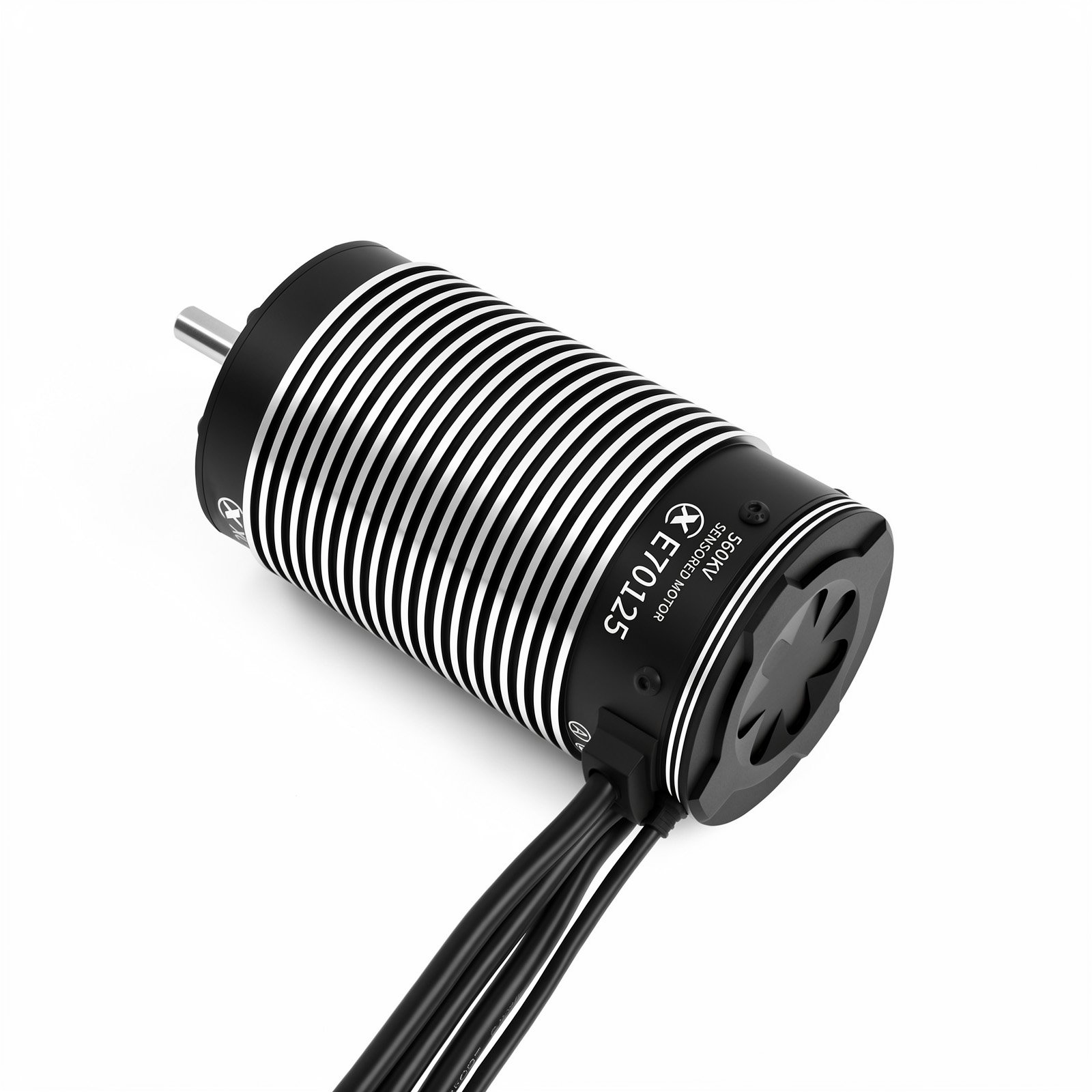

E70125 HV Sensored RC Brushless Motor 6-12S/8-16S
E70125 Sensored Brushless RC Motor for Ultimate RC Adventures
- A perfect match to ESC E3/E3Pro/E3H
- Number of Pole Pairs: 2
- Bearings front/rear: D22*d8*T7
- Outer diameter/Length: Ø70mm(2.760in)/L125mm(4.921in)
- Shaft diameter/End length of shaft: Ø8mm(0.315in)/L30mm(1.181in)
- Applied to 1/5 Offroad, Truck(Heavy Load), Combat Robot
Original price was: $248.00.$230.50Current price is: $230.50.
FREQUENTLY BOUGHT TOGETHER
E70125 HV Sensored RC Brushless Motor 6-12S/8-16S
Original price was: $248.00.$228.20Current price is: $228.20.
E70125 560KV/420KV HV RC Brushless Motor
1. Outstanding magnetic circuit, ultrathin silicon steel and high slot fill factor of high temperature resistant enameled wire winding will effectively reduce losses and improve efficiency and thermal performance.
2. Built-in High-Precision Magnetic Encoder.
3. Special rotor winding process with explosion-proof, high precision balance for increasing rotor’s service life and high-speed stability.
4. Power-on Self-Test (POST) Protection Function.
5. High precision bearings, reinforced alloy aluminum shell and high toughness stainless steel shaft improves motor’s structural performance.
6. IP67 Protection Rating design at driving end achieves excellent waterproof and dust-proof performance.
| Name | E70125 Motor For RC Car | |
| Type | BLDC | |
| KV | 420KV / 560KV | |
| Specification | E70125-420KV Cells | 8-16S |
| E70125-560KV Cells | 6-12S | |
| No-load Current | 420KV≤2.0A / 560KV≤3.0A | |
| Outer Diameter/Length | Ø70mm(2.760in)/L125mm(4.921in) | |
| Shaft diameter/ End length of shaft | Ø8mm(0.315in)/L30mm(1.181in) | |
| Bearing front/rear Specification | D22*d8*T7 | |
| Weight | 1998 g | |
| Pairs of Poles | 2 Pairs of poles | |
| Application | 1/5 Offroad, Truck(Heavy Load), Combat Robot | |
