Key Features

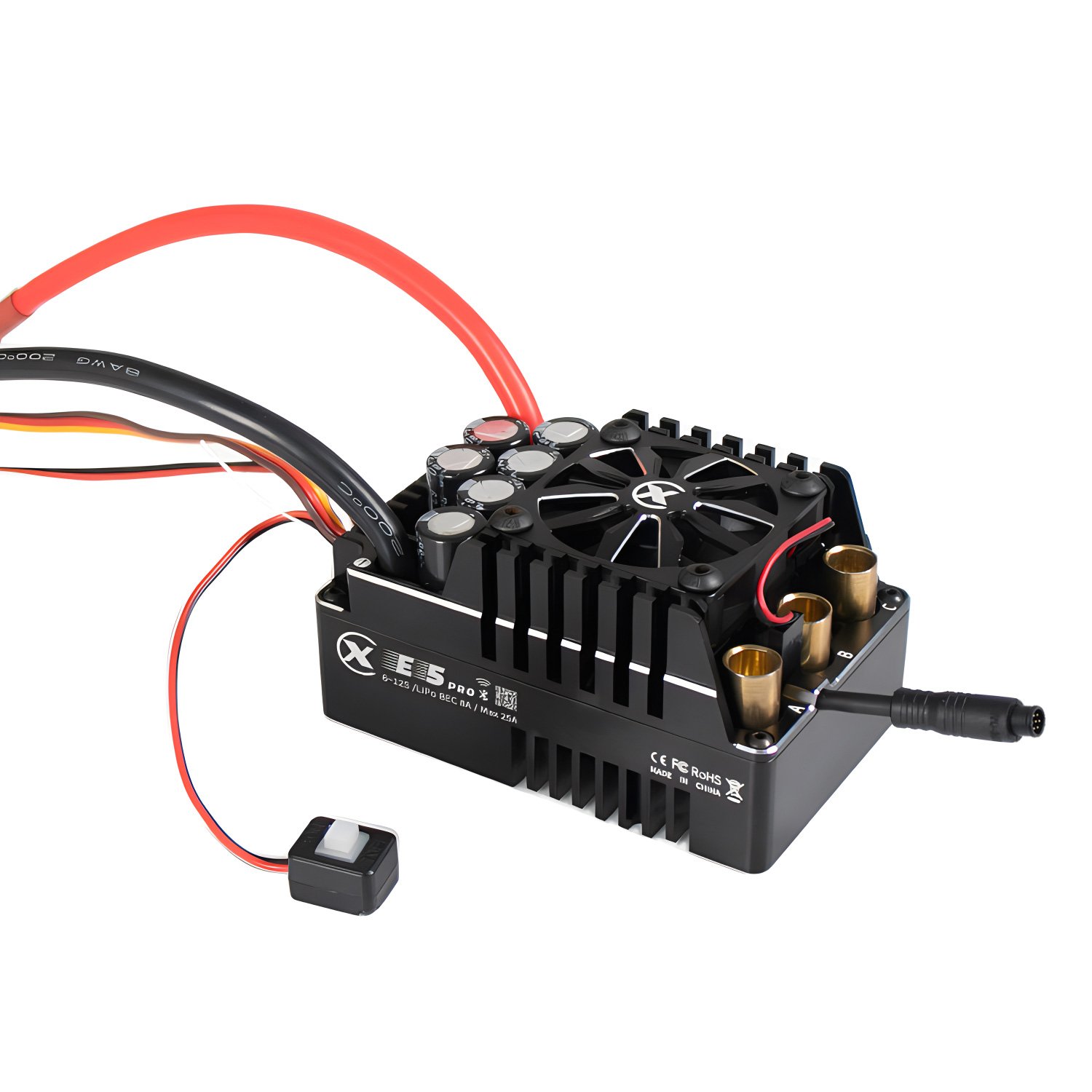

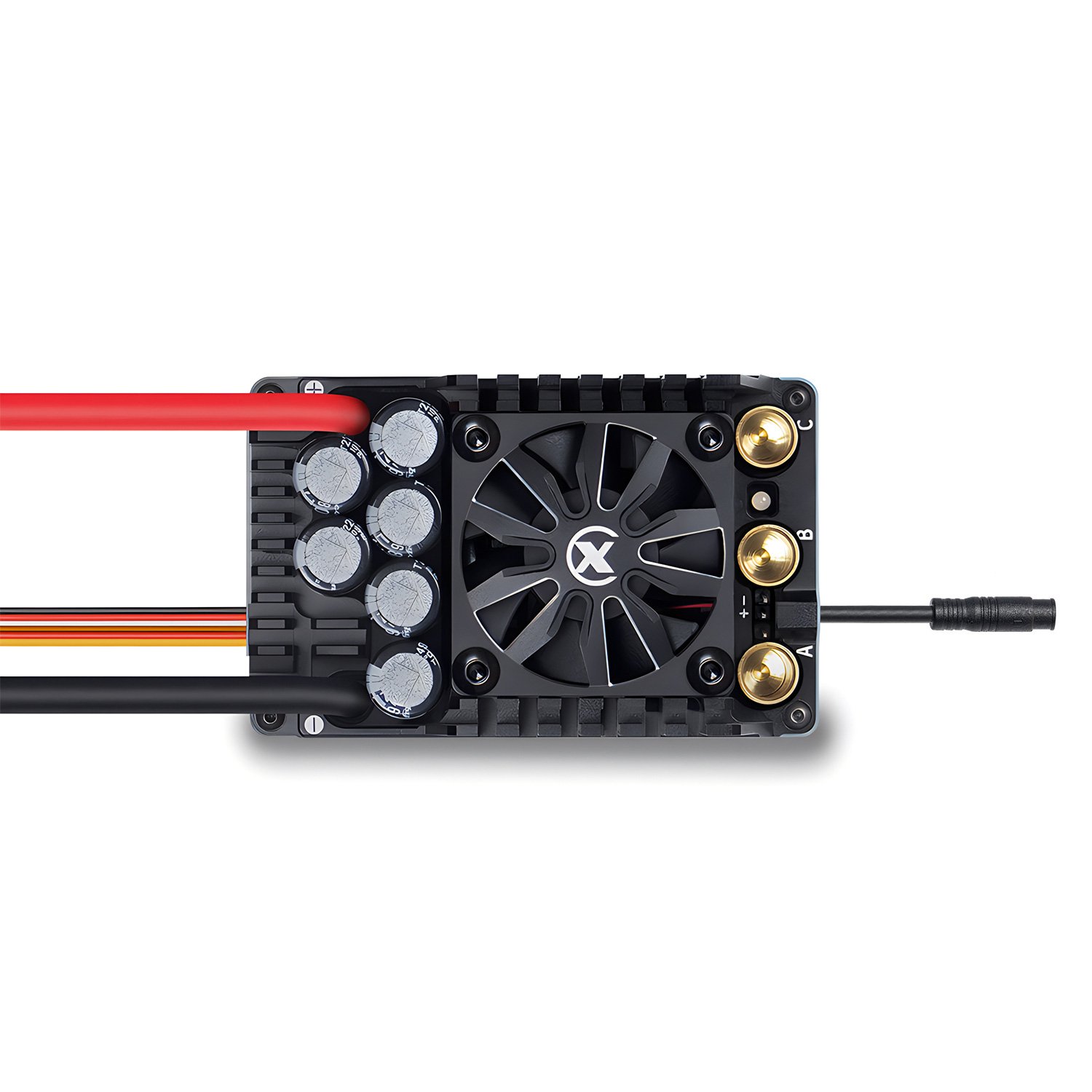

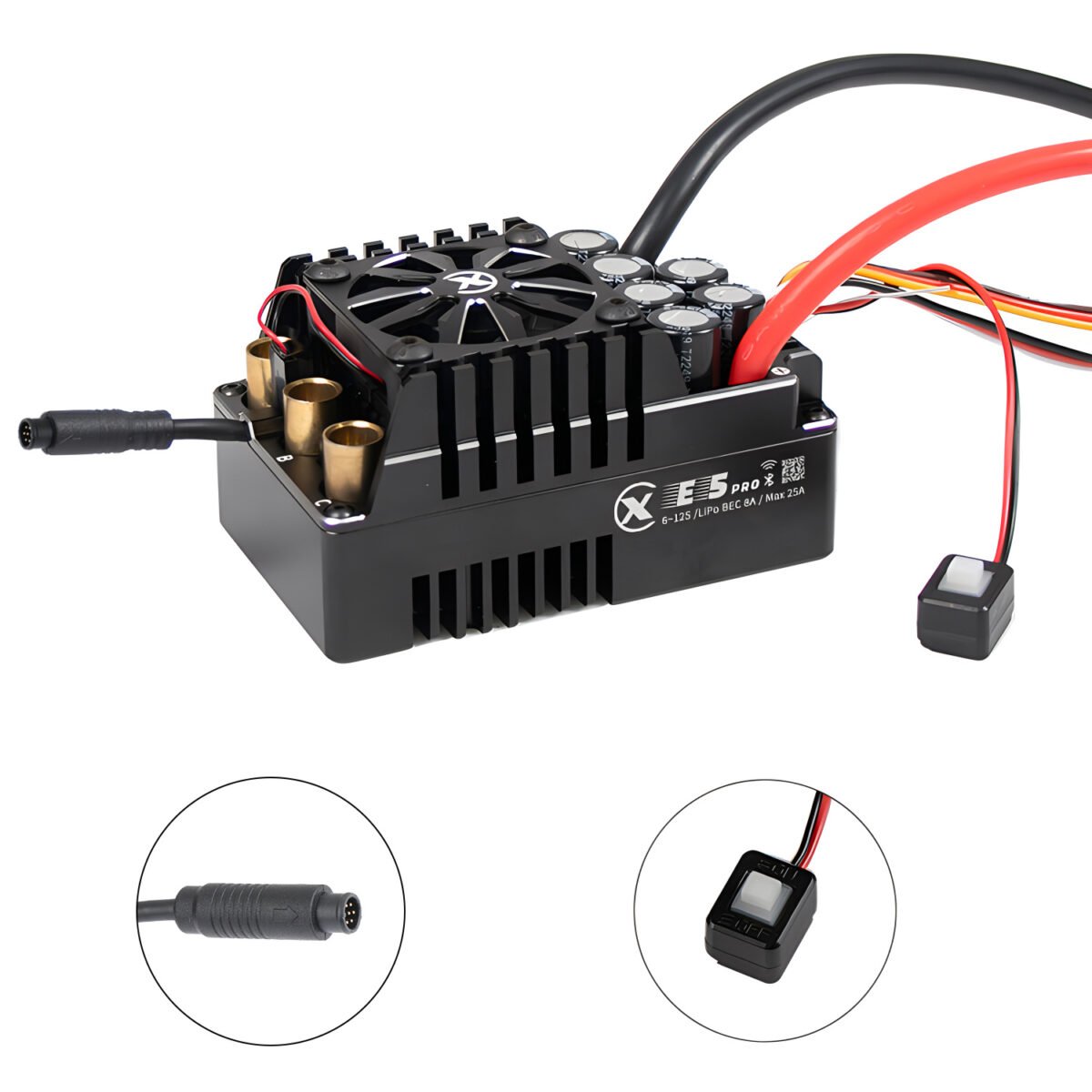

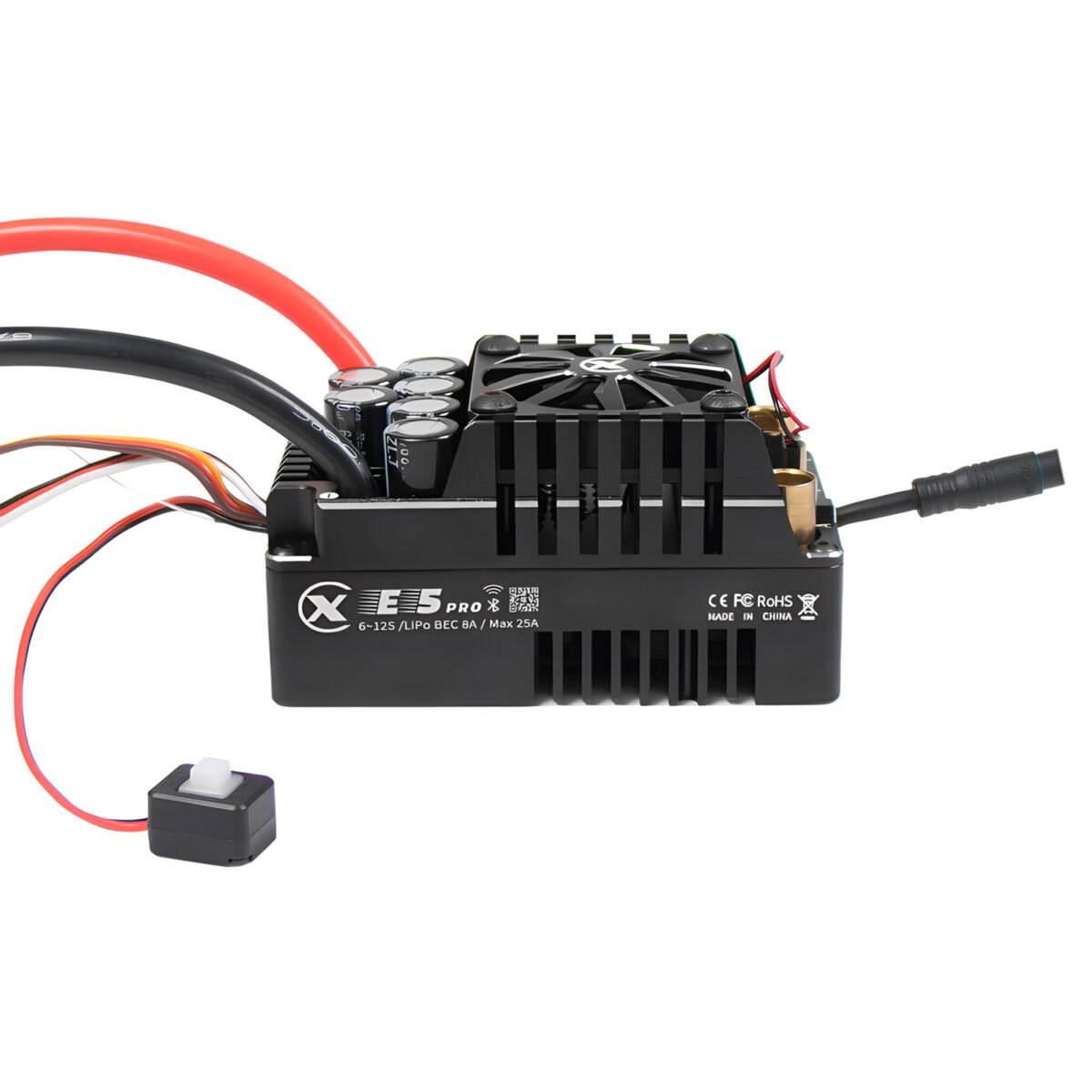

E5 PRO RC Car Model Brushless Sensor ESC
- Ultra-High Performance: Supports 6-12S LiPo batteries, delivering a continuous current of 250A and peak capacity below 500A.
- Advanced Cooling System: Intelligent fan activates based on ESC temperature, ensuring optimal performance.
- Bluetooth Connectivity: Easily configure and program ESC settings through a mobile app.
- Customizable Turbo Timing: Adjustable timing from 0° to 26° for precise motor speed control.
- Anti-Spark Technology: Protects the ESC and battery from voltage surges during high-power operations.
- Wave-by-Wave Current Limiting: Prevents excessive pulse currents to safeguard the motor and drivetrain.
- Real-Time Data Logging: Access live telemetry and static operation records via the mobile app.
- Powerful BEC System: Provides up to 25A output for high-voltage servos with adjustable voltage options (6V/7.4V/8.4V).
- IP67 Waterproof & Dustproof: Engineered for reliable performance in extreme and harsh environments.
| Name | E5 Electronic Speed Controller / 250A (6~12S) | |
| Type | BLDC Electronic Speed Controller for RC Cars | |
| Parameters | Continuous Current | 250A |
| Input | 6~12S LiPo | |
| BEC | 8A~25A Max | |
| Weight | ≈470g (with wire) | |
| Power/Motor Lines | 8AWG/8.0mm (plug) | |
| Waterproof | IP67 | |
| Working Temperature | -25~60℃ | |
| Size(L*W*H)/mm | 93.80*59.00*53.60mm | |
