E4268 2500KV Brushless Motor For RC Cars 3-4S
E4268 2250KV Brushless Motor for Outcast Quake Upgrade
Number of Pole Pairs: 2
Bearings front/rear: D17*d6*T6/D11*d5*T5
Outer diameter/Length: Ø42mm(1.654in)/L68mm(2.677in)
Shaft diameter/End length of shaft: Ø5mm(0.197in)/L18.5mm(0.728in)
Pairing with E10 rc Brushless ESC Applicable to 1/8 Outcast, Kraton, Arrma Quake, Granite, Typhon etc.
Original price was: $293.00.$235.00Current price is: $235.00.
We added you to this product's waitlist and we'll send you an email when the product is available.
Leave WaitlistThis product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.

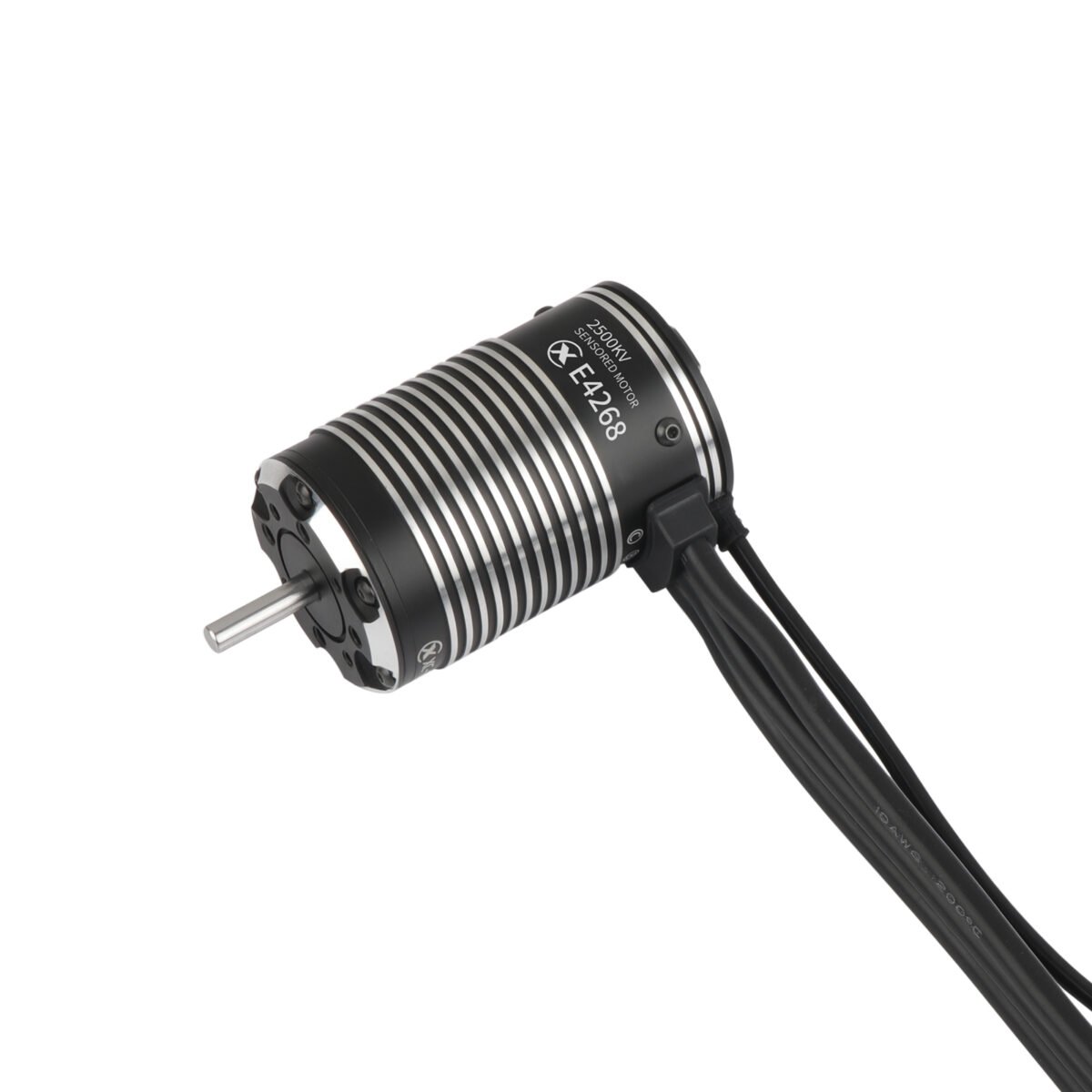

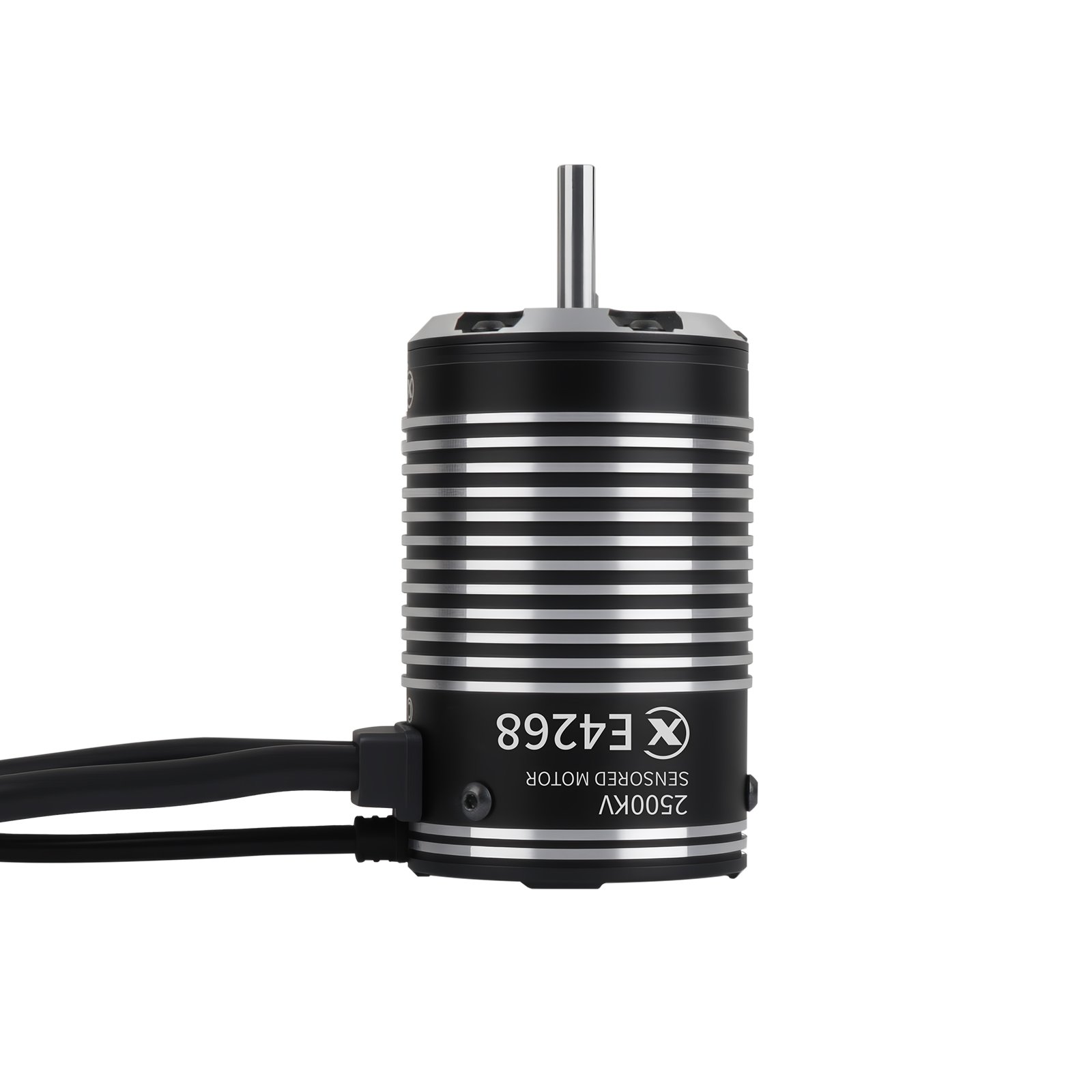

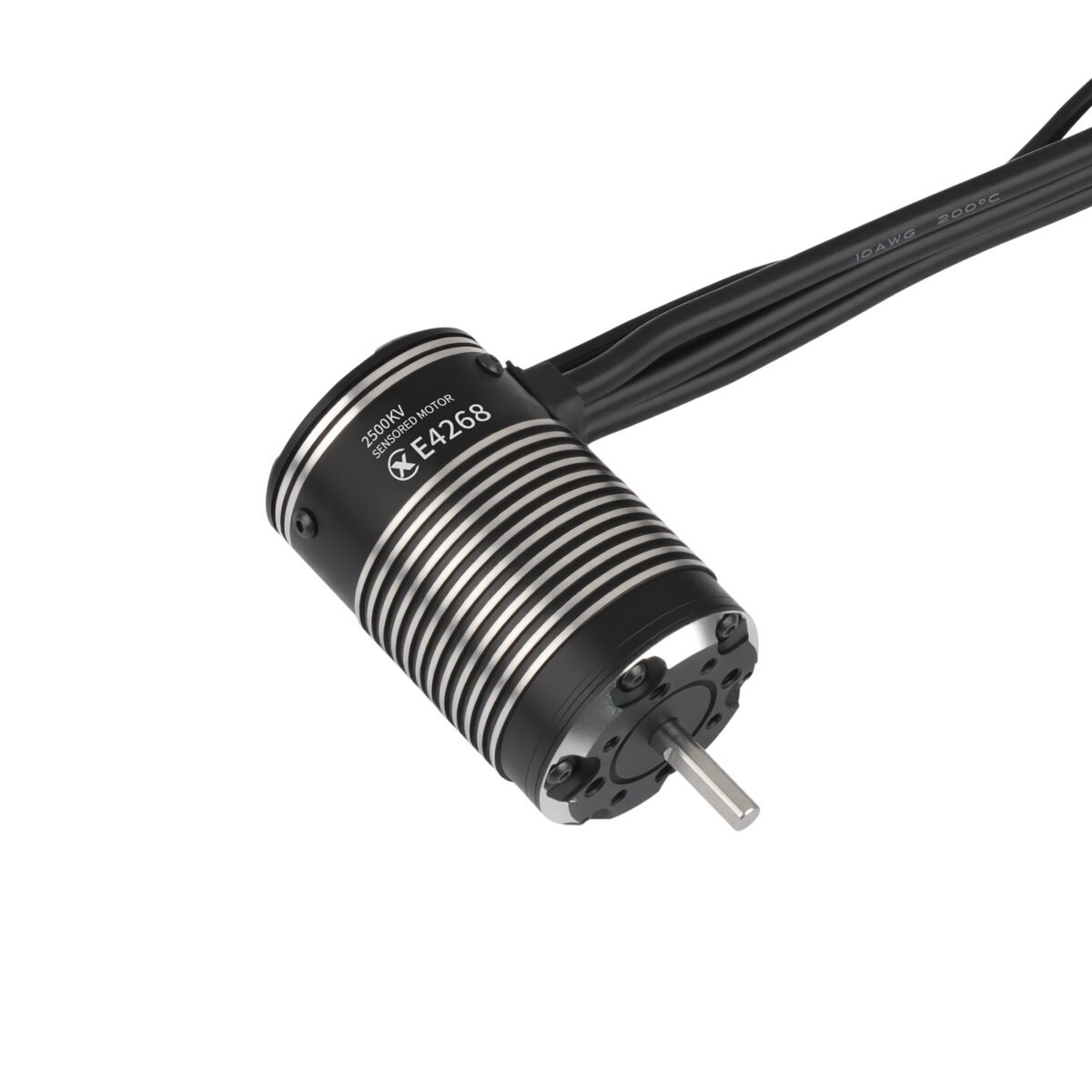

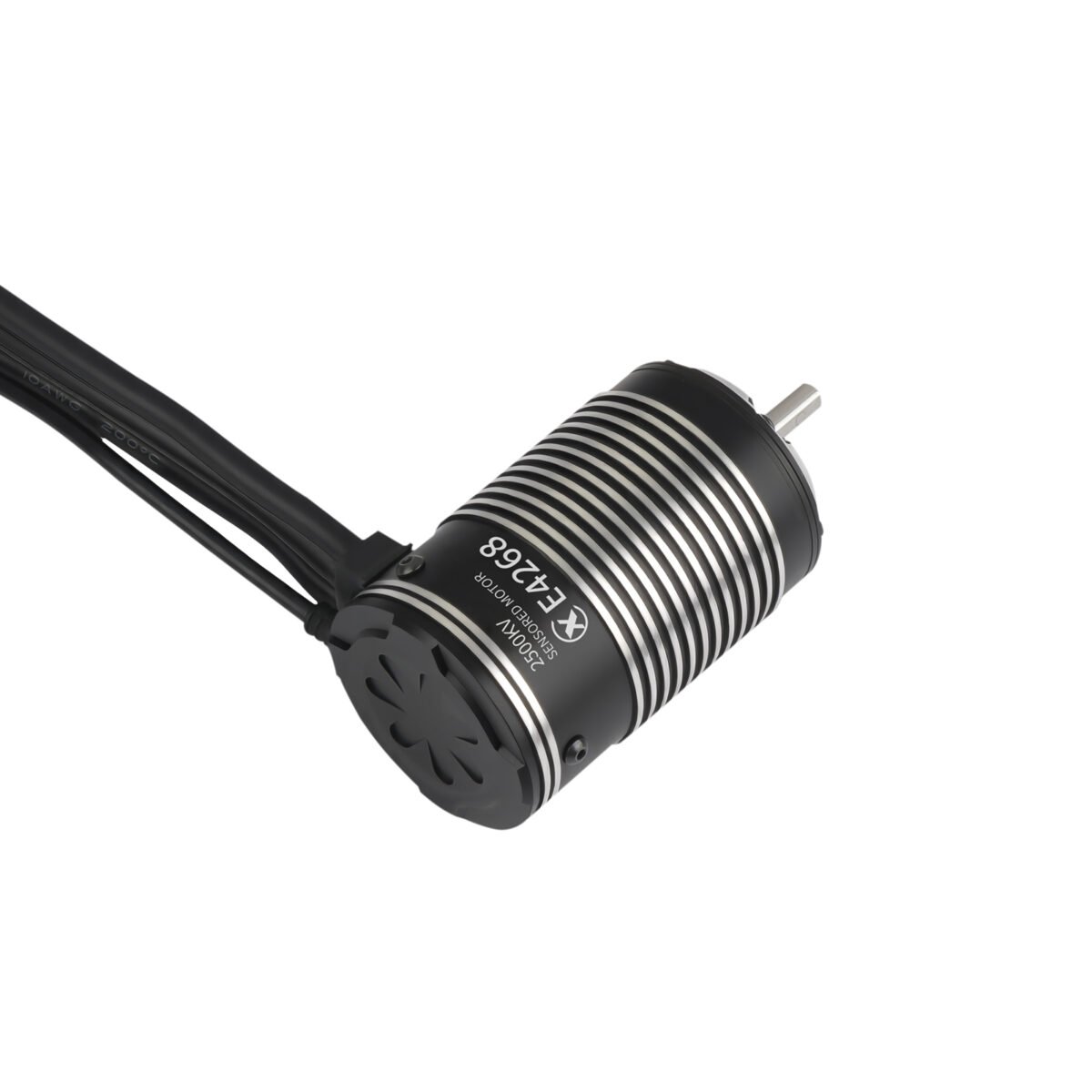

E4268 2250KV Sensored RC Brushless Motor
1. Outstanding magnetic circuit combining with ultrathin thick silicon steel and high slot fill factor of high temperature resistant enameled wire winding will effectively reduce losses and improve efficiency and thermal performance.
2. Built-in High-Precision Magnetic Encoder.
3. Special rotor winding process with explosion-proof, high precision balance for increasing rotor’s service life and high-speed stability.
4. Power-on Self-Test (POST) Protection Function.
5. High precision bearings, reinforced alloy aluminum shell and high toughness stainless steel shaft improves motor’s structural performance.
6. IP67 Protection Rating design at driving end achieves excellent waterproof and dust-proof performance.
| Name | E4268 Motor For RC Car | |
| Type | BLDC | |
| KV | 2500KV | |
| Cells | 3~4S | |
| No-load Current | ≤4.7A | |
| Outer Diameter/Length | Ø42mm(1.654in)/L68mm(2.677in) | |
| Shaft diameter/ End length of shaft | Ø5mm(0.197in)/L18.5mm(0.728in) | |
| Bearing front Specification | D17*d6*T6 | |
| Bearing rear Specification | D11*d5*T5 | |
| Weight | 375 g | |
| Pairs of Poles | 2 Pairs of poles | |
| Application | 1/8 Trucks,off-road,1/10 Monster(Heavy-duty) | |
