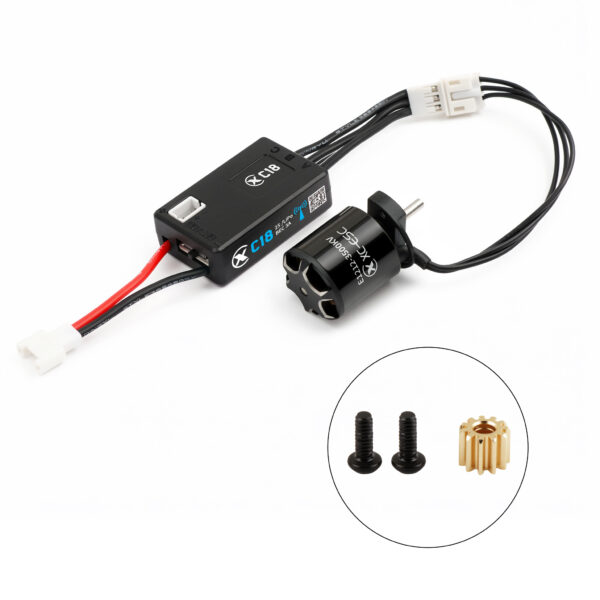

2S C18 ESC & E1212 Motor Sensorless Brushless FOC Combo
Product Includes C18 ESC and E1212 Motor 3500KV
- 30A Compact profile
- Built-in Bluetooth for convenient programming.
- Built-in BEC 6.0V for prcesion servo control.
- Over-temperature Protection.
Designed for 1/18 and 1/24 scale RC crawlers, delivering exceptional low-speed stability and powerful torque for climbing. Equipped with multiple protection features for reliable performance.
Original price was: $46.00.$42.80Current price is: $42.80.
We added you to this product's waitlist and we'll send you an email when the product is available.
Leave WaitlistThis product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
C18 ESC & E1212 Motor Brushless FOC Combo
• Sensorless FOC Drive: Utilizes advanced sensorless Field-Oriented Control (FOC) technology. Compared with traditional drives, low-speed torque is increased by up to 30%.
• Built-in BEC: Integrated BEC with a switchable 6V output, delivering up to 3A continuous current.
• Integrated Bluetooth: No external programming box required. Parameters can be adjusted anytime via a smartphone app for maximum convenience.
• Comprehensive Precision Control: Offers up to 9 adjustable parameters, including max. brake force, max. reverse force, acceleration, drag brake force, low speed torque, neutral range, and more, enabling a highly customized driving experience.
• Multiple Protections: Includes low-voltage, over-temperature, throttle signal loss, abnornal braking etc.
| Name | C18 ESC & E1212 Motor Combo(2S) | |
| Type | BLDC/FOC | |
| ESC Model | C18 | |
| Parameters | Continuous Current | 30A |
| Input | 2S LiPo | |
| BEC | 3A | |
| Weight | ≈10g (with wire) | |
| Power/Motor Lines | 22AWG/40.0mm (plug) | |
| Waterproof | IP67 | |
| Working Temperature | -25~60℃ | |
| Size(L*W*H)/mm | 32.1*20.1*9.0 | |
| Motor | E1212 | |
| KV | 3500KV | |
| Rated Voltage | 7.4V | |
| No-load Current(A/7.4V) | ≤0.6A | |
| Weight | 15.4 g | |
| Applicable to: 1/18 and 1/24 Rock Crawler | ||
