Key Features

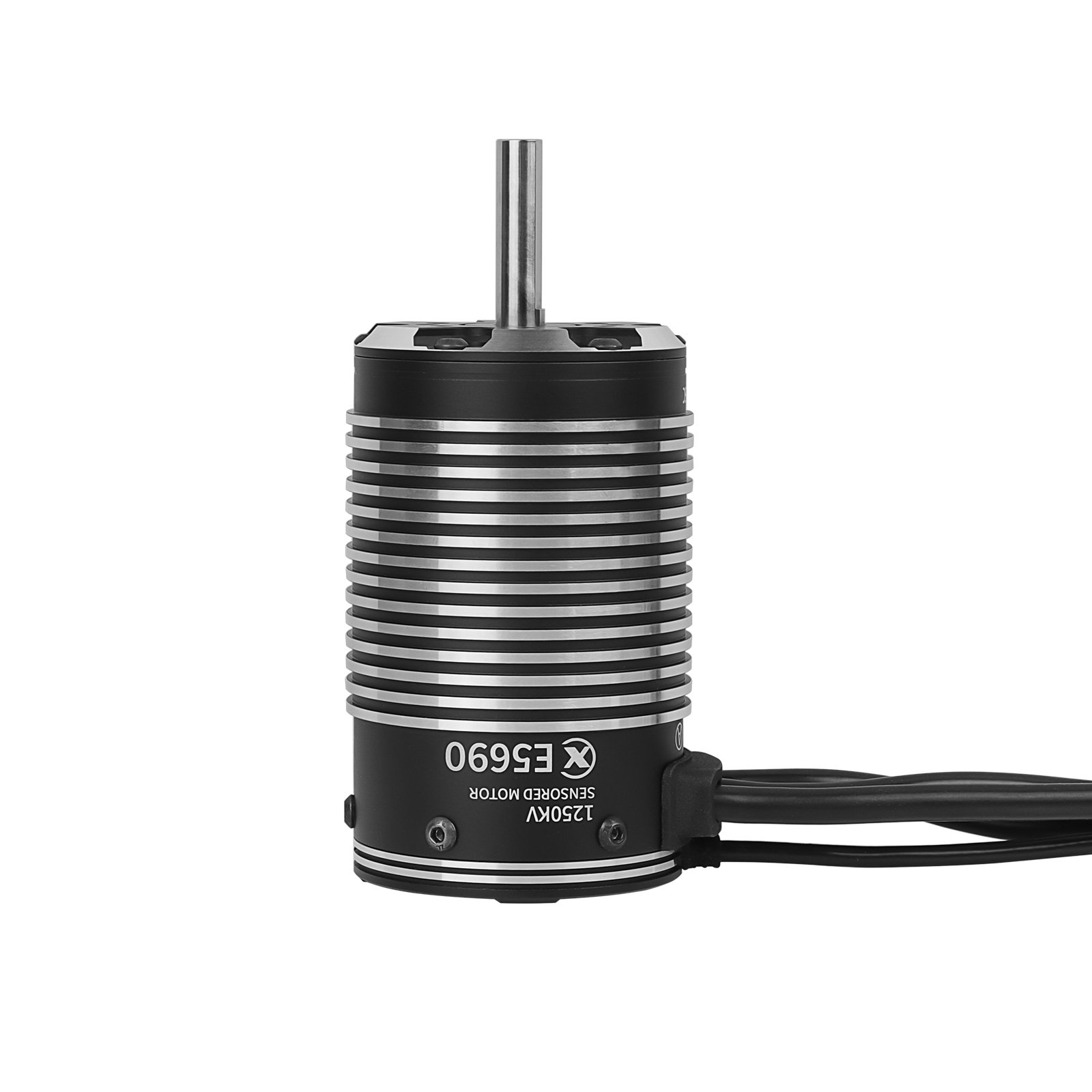

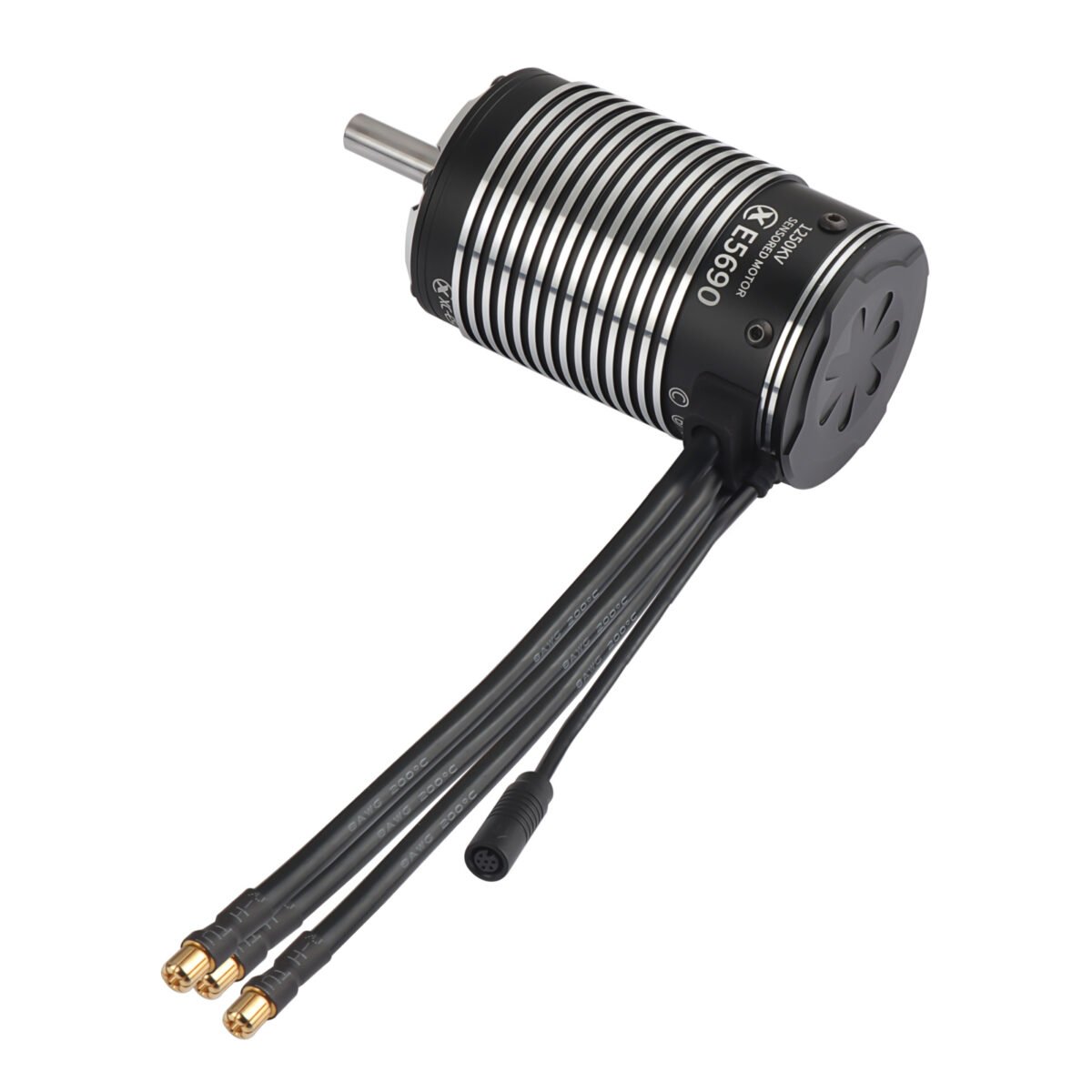

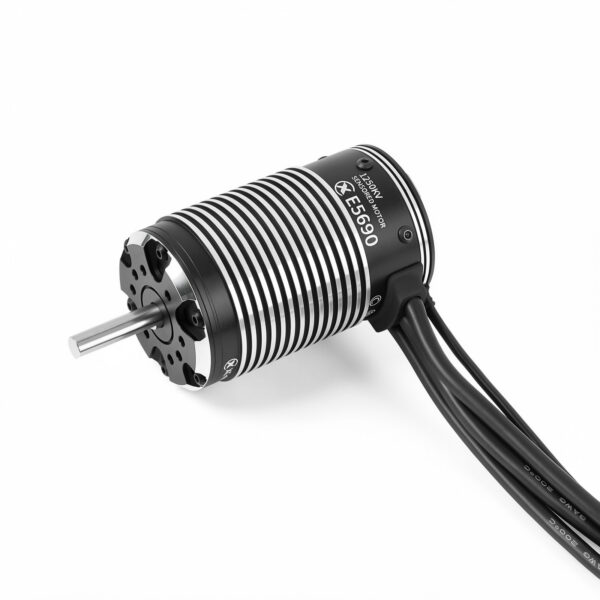

E5690 Sensored Brushless Motor
1. Outstanding magnetic circuit combining with ultrathin thick silicon steel and high slot fill factor of high temperature resistant enameled wire winding will effectively reduce losses and improve efficiency and thermal performance.
2. Special rotor winding process with explosion-proof, high precision balance for increasing rotor’s service life and high-speed stability.
3. High precision bearings, reinforced alloy aluminum shell and high toughness stainless steel shaft improves motor’s structural performance.
4. Innovative waterproof design at driving end achieves excellent waterproof and dust-proof performance.
| Name | E5690 Motor For RC Car | |
| Type | BLDC | |
| KV | 1250KV | |
| Cells | 3~8S | |
| No-load Current | ≤5.8A | |

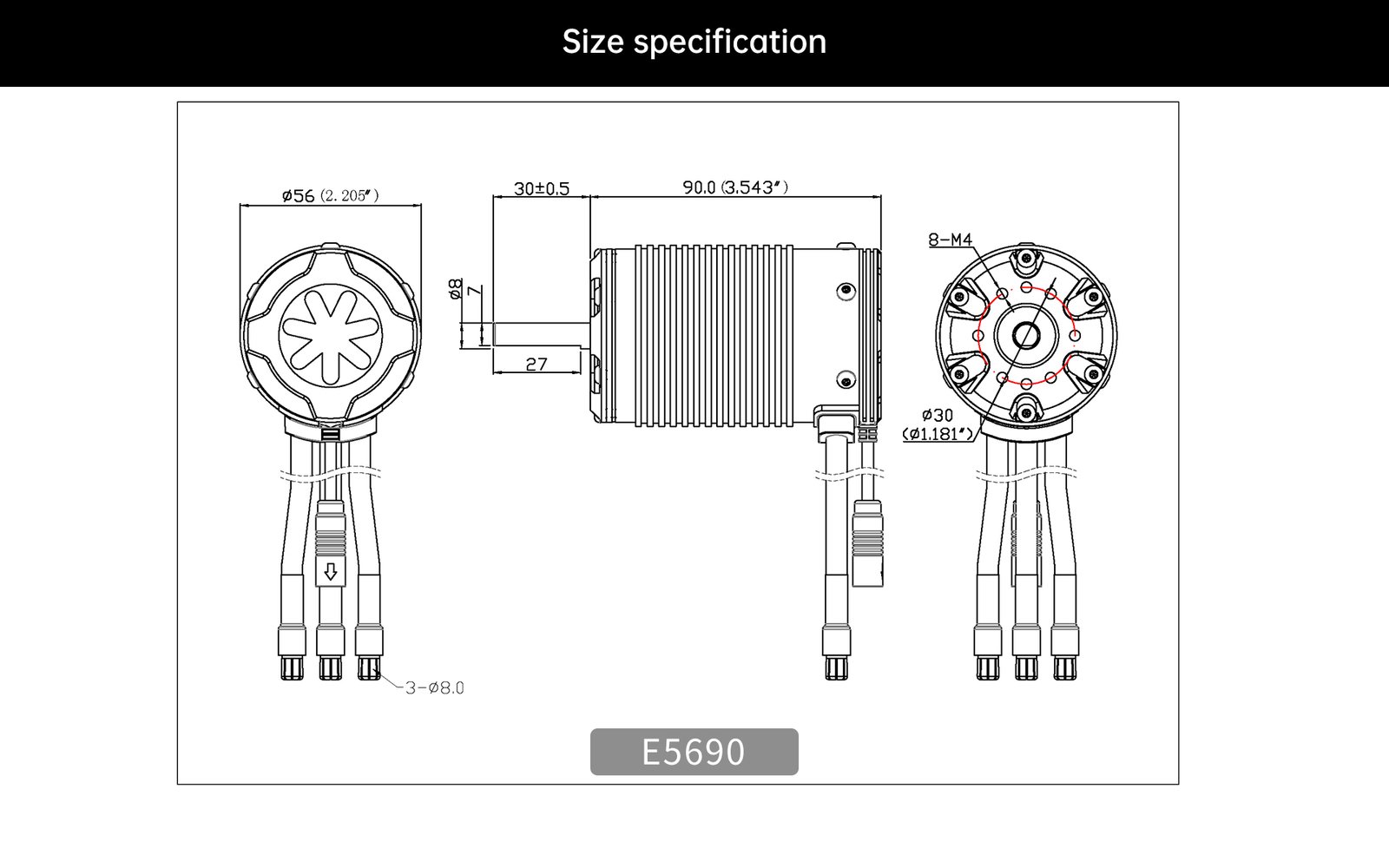

| Outer Diameter/Length | Ø56mm(2.205in)/L90mm(3.543in) | |
| Shaft diameter/ End length of shaft | Ø8mm(0.315in)/L30mm(1.181in) | |
| Bearing Front(driving end) | D22*d8*T7 | |
| Bearing Rear(wire outlet end) | Dl9*d8*T6 | |
| Weight | 870 g | |
| Pairs of Poles | 2 Pairs of poles | |
| Application | l/5 Light-duty Truck, 1/6 Trucks, Monster | |
