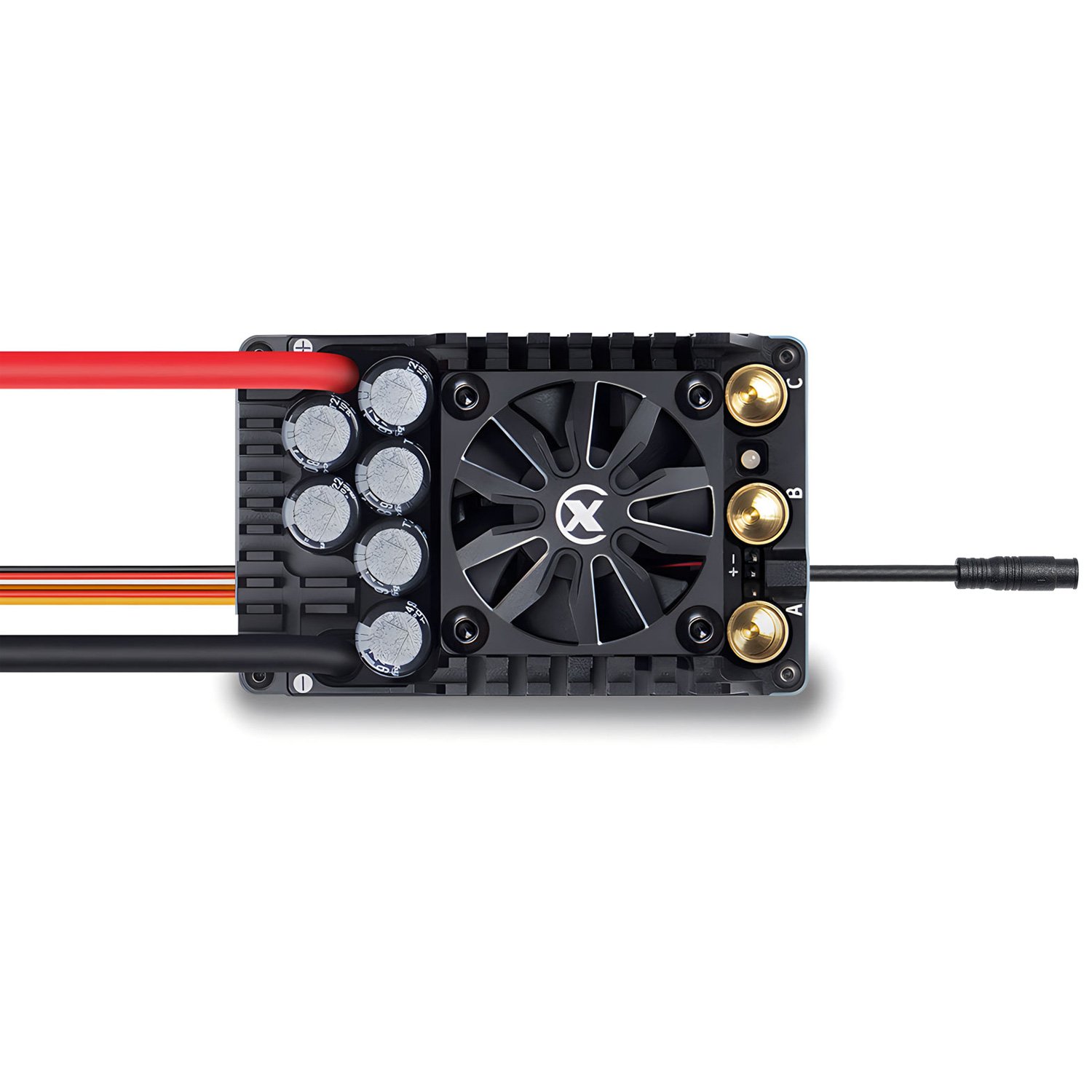

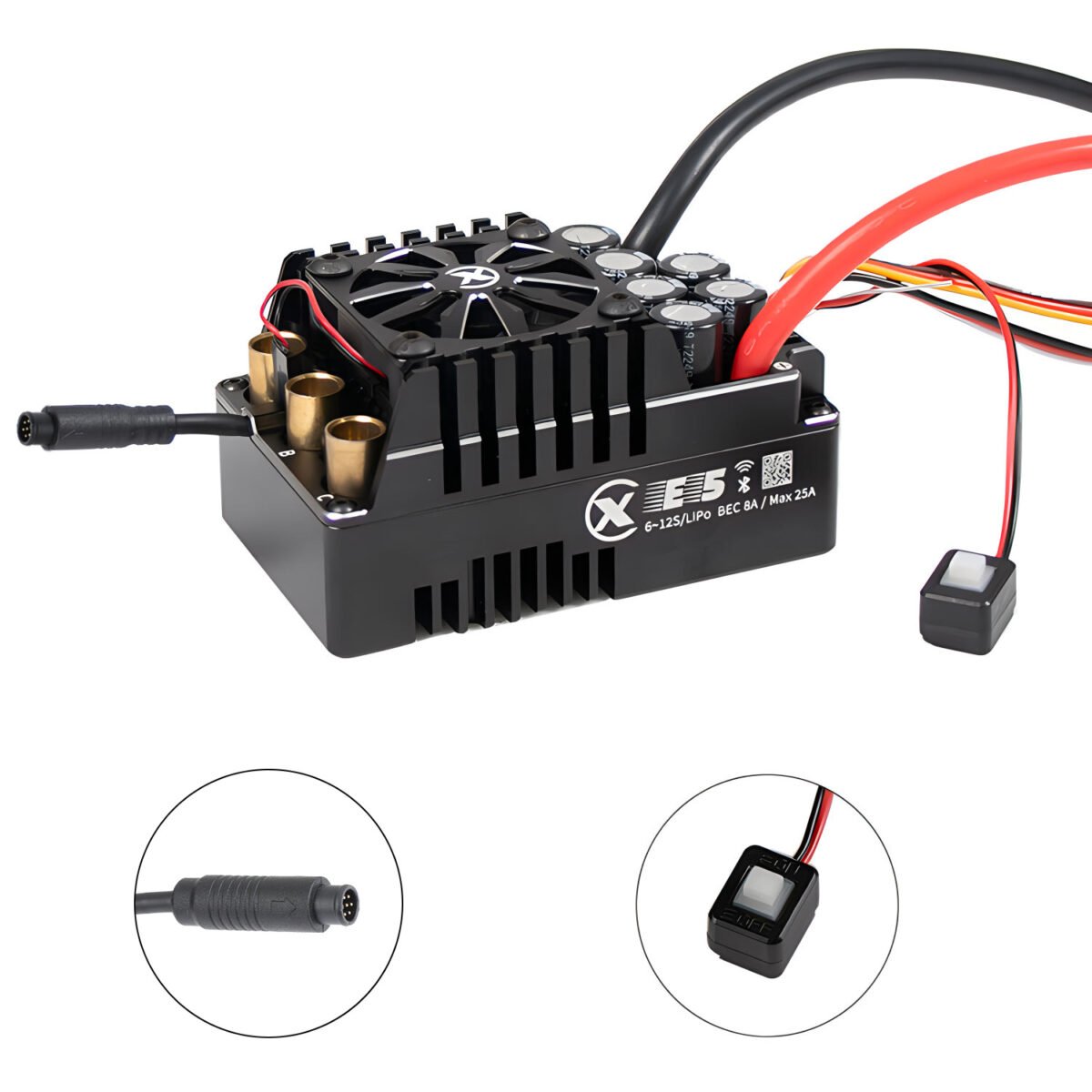

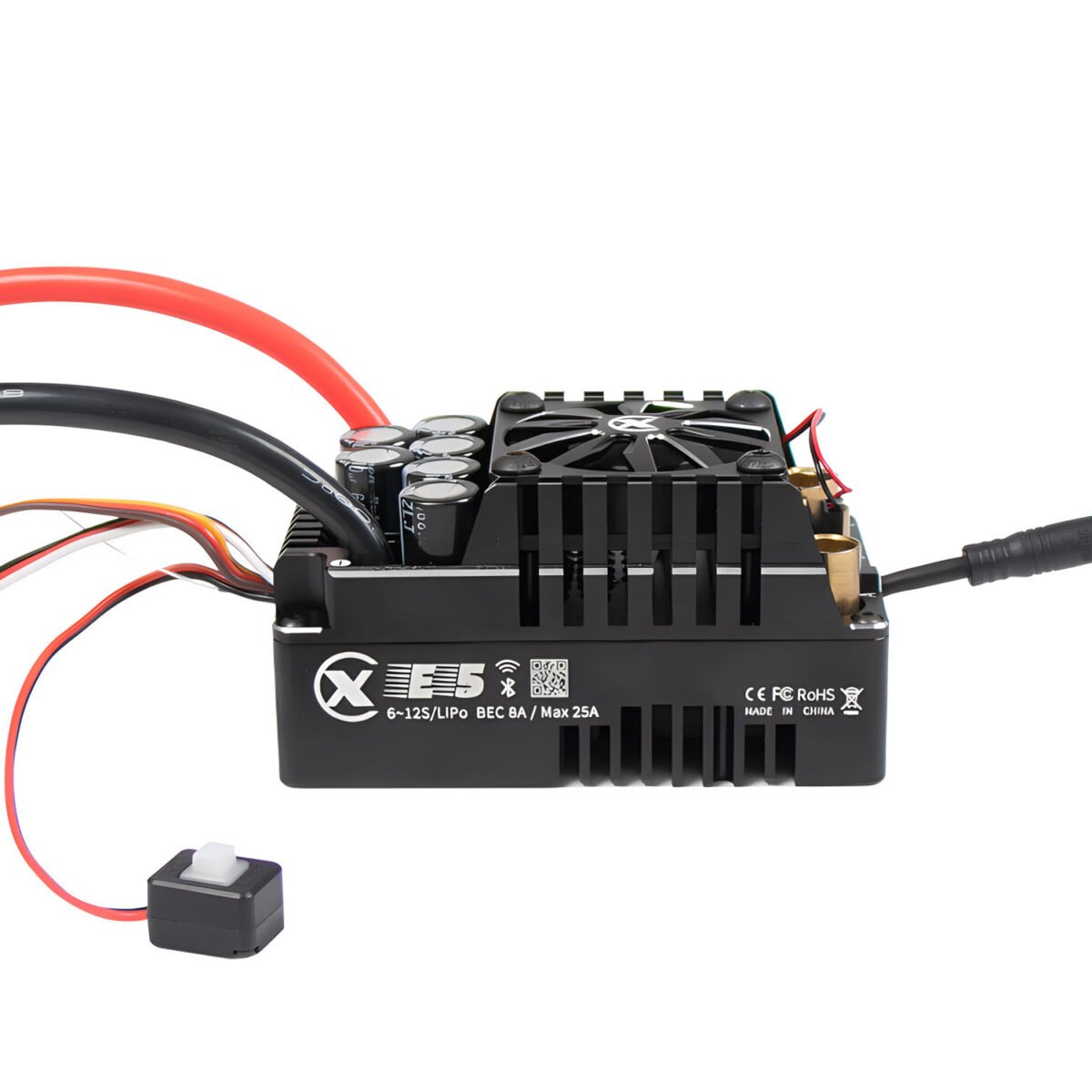

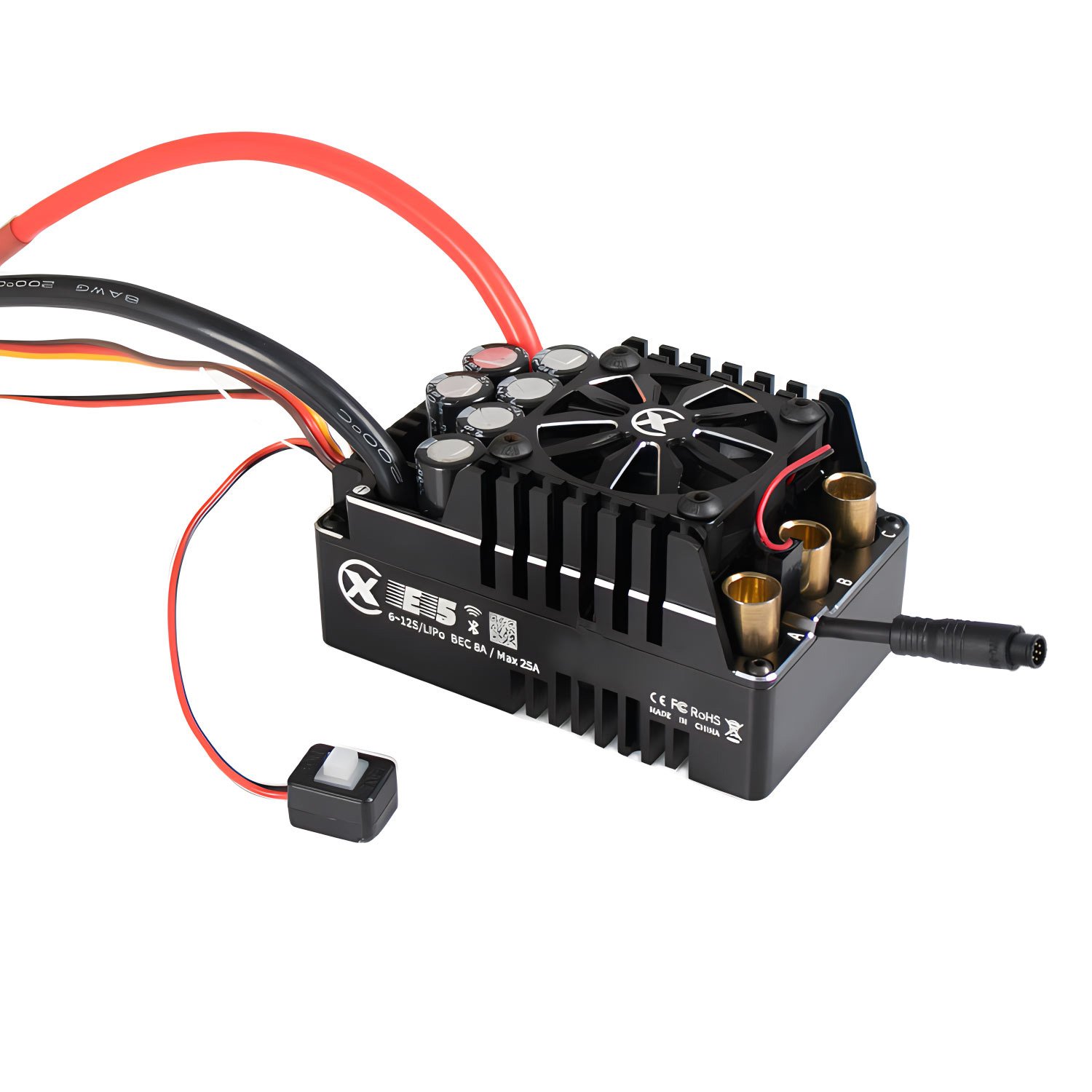

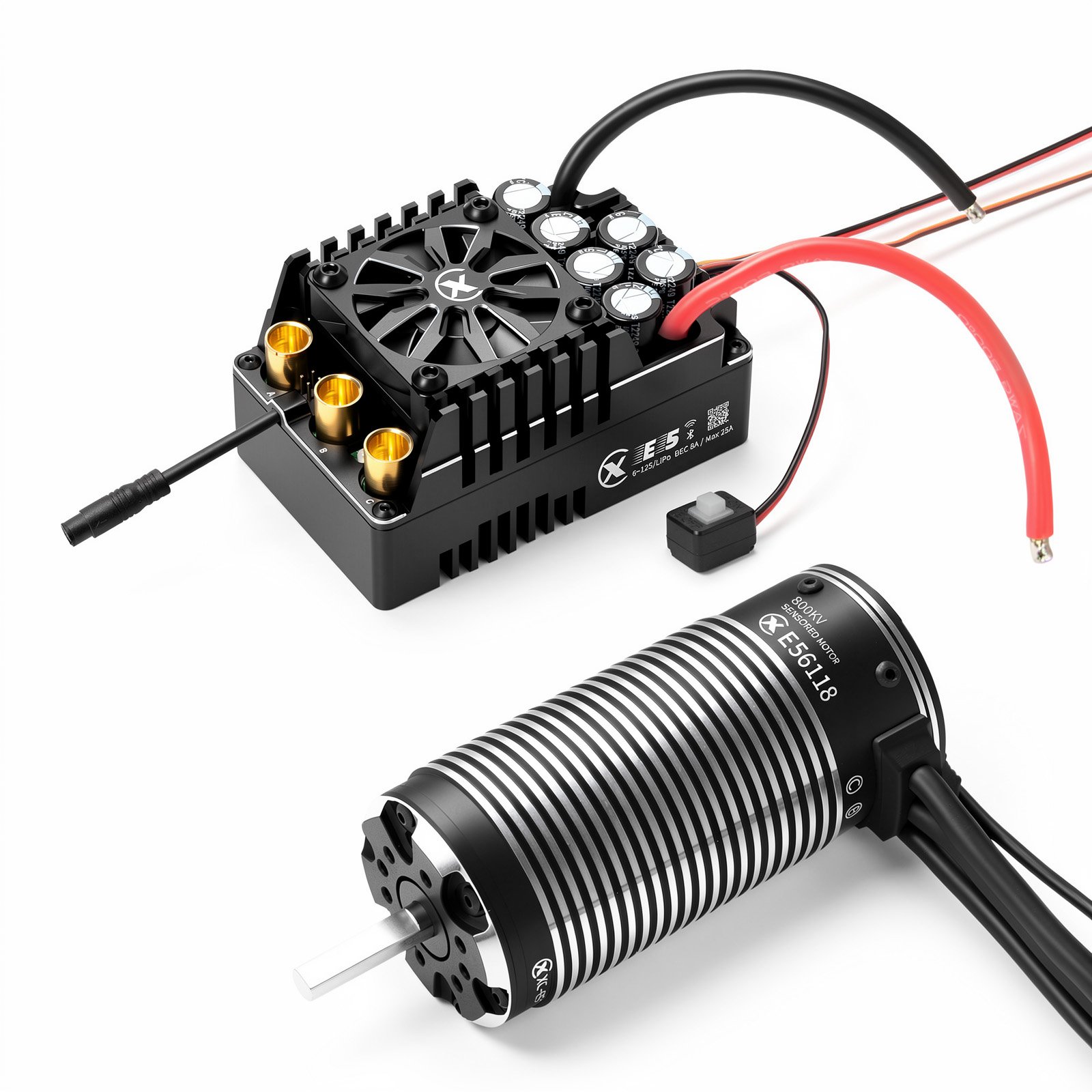

RC ESC Brushless Speed Controller XC E5 ESC HV 200A 6~12S

XC E5 HV Brushless RC ESC speed controller features 12S LiPo 200A cont. power system for ultimate experience on 1/5th scale cars like DBXL.E…
Bluetooth for Programming: No Programming Box Required, No Cables, Bluetooth connectivity and App for convenient tuning and firmware upgrade.
BEC Adjustable: 6V / 7.4V / 8.4V, 25A peak, easily power all sorts of HV servos, putting servo working at its best.
Smart Cooling: 50mm fan temperature controlled depending on ESC temp, it stays off at low temperature, only starts when reaches set value.
Active Freewheeling: To reduce times of components spend generating heat, remaining your gear “cool” without overheating or shutting down.
IP67 rating Waterproof, XC E5Pro RC ESC is epoxy potted to protect electronics, in the meanwhile promote heat transfer.
Mobile APP “XC-Link”: Data logging and reat-time data capable for replay, stay updated with latest firmware.
XC E5 Brushless RC ESC speed controller is designed to fit in large scale cars, 1/6th 1/5th sand cars, monster trucks, offroad bashers etc.

Original price was: $239.00.Current price is: $221.00.

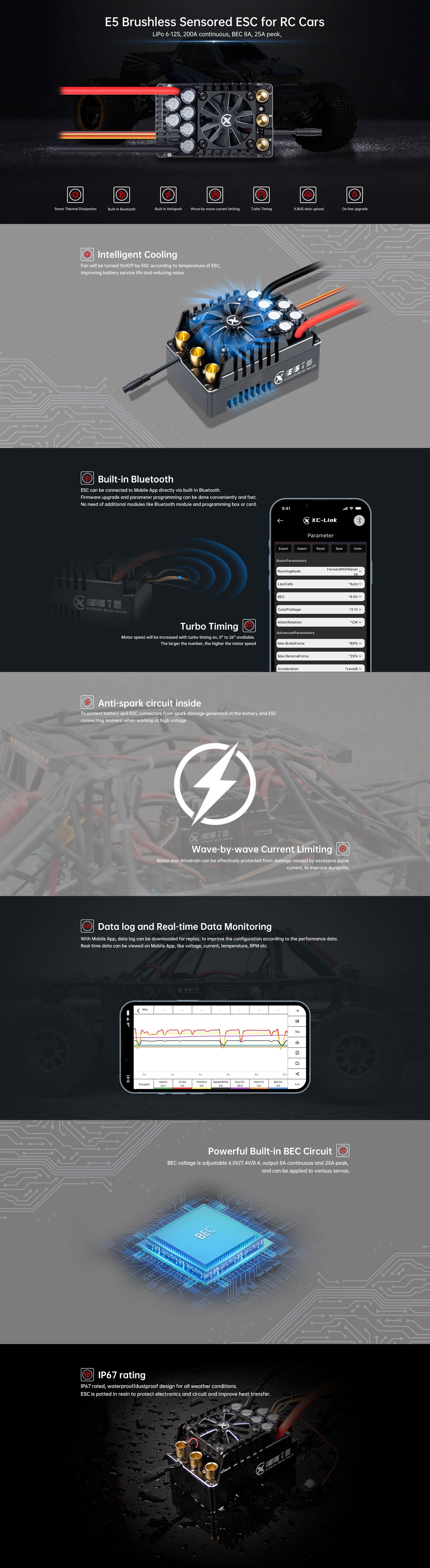

Key Features

High Power Setup: 6-12S system with 200A delivers steady power without .
Intelligent Fan Control: Temperature-controlled fan ensures efficient heat dissipation, improving battery service life and reducing noise.
Bluetooth Programming: Conveniently adjust and program settings via Mobile App.
Adjustable Turbo Timing: Turbo timing adjustable from 0° to 26° to increase motor RPM for straightline speed run.
Built-in Anti-Spark Protection: Prevents ESC and battery from damage at ESC and battery connecting moment.
Wave-by-Wave Current Control: Protects the motor and drivetrain from damage caused by excessive pulse current.
Real-Time Telemetry: Monitor ESC operation live and access static logs directly through the mobile app.
Powerful BEC System: Adjustable BEC (6V/7.4V/8.4V) delivers 10-25A peak to keep high-voltage servos working steadily.
IP67-Rated Durability: Waterproof and dustproof design for reliable performance in extreme conditions.
9-month Warranty from date of purchase.

Name	E5 Electronic Speed Controller / 200A (6~12S)
Type	BLDC Electronic Speed Controller for RC Cars
Parameters	Continuous Current	200A
	Input	6~12S LiPo
	BEC	8A~25A Max
	Weight	≈425g (with wire)
	Power/Motor Lines	8AWG/8.0mm (plug)
	Waterproof	IP67
	Working Temperature	-25~60℃
	Size(LWH)/mm	93.8059.0050.60mm
