Key Features

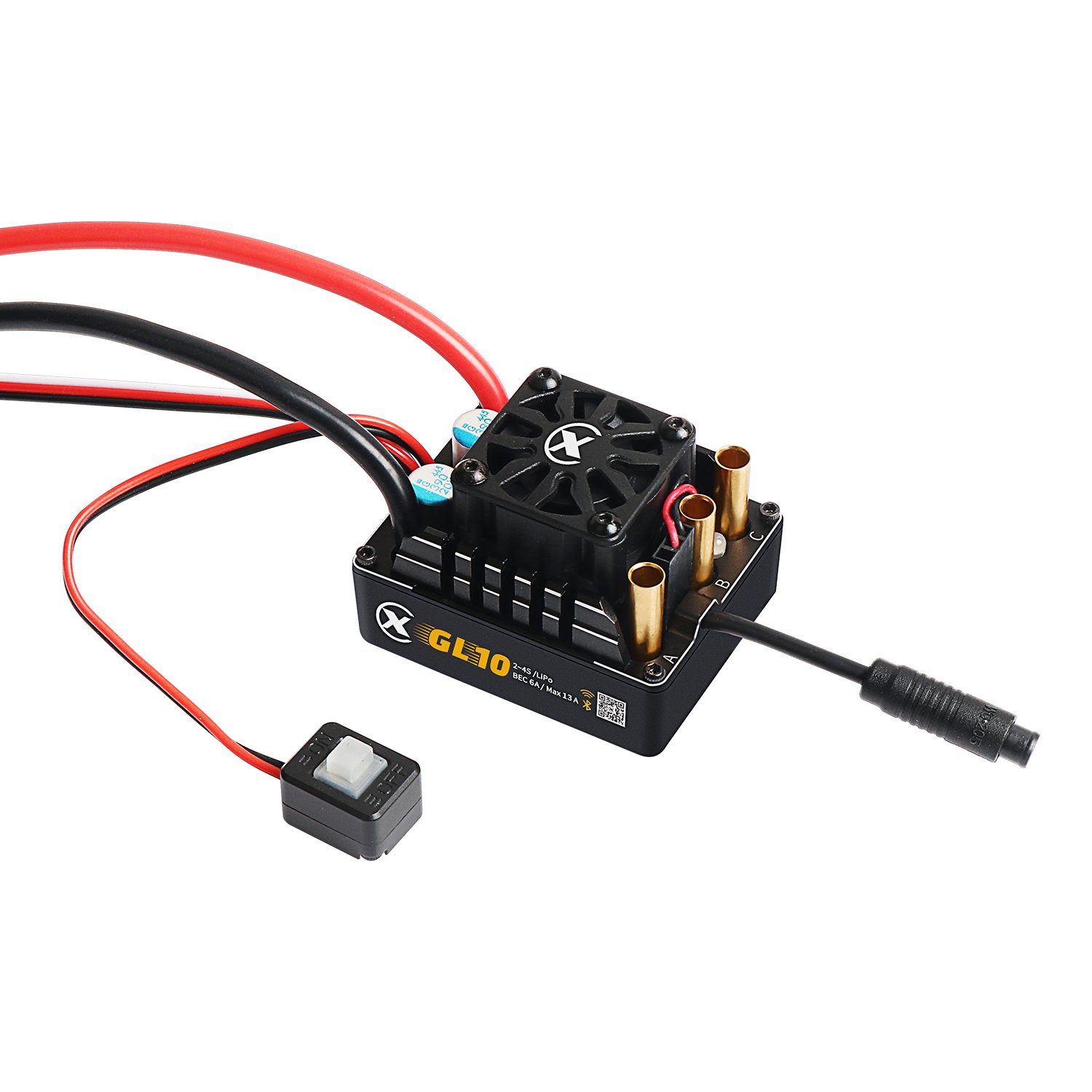

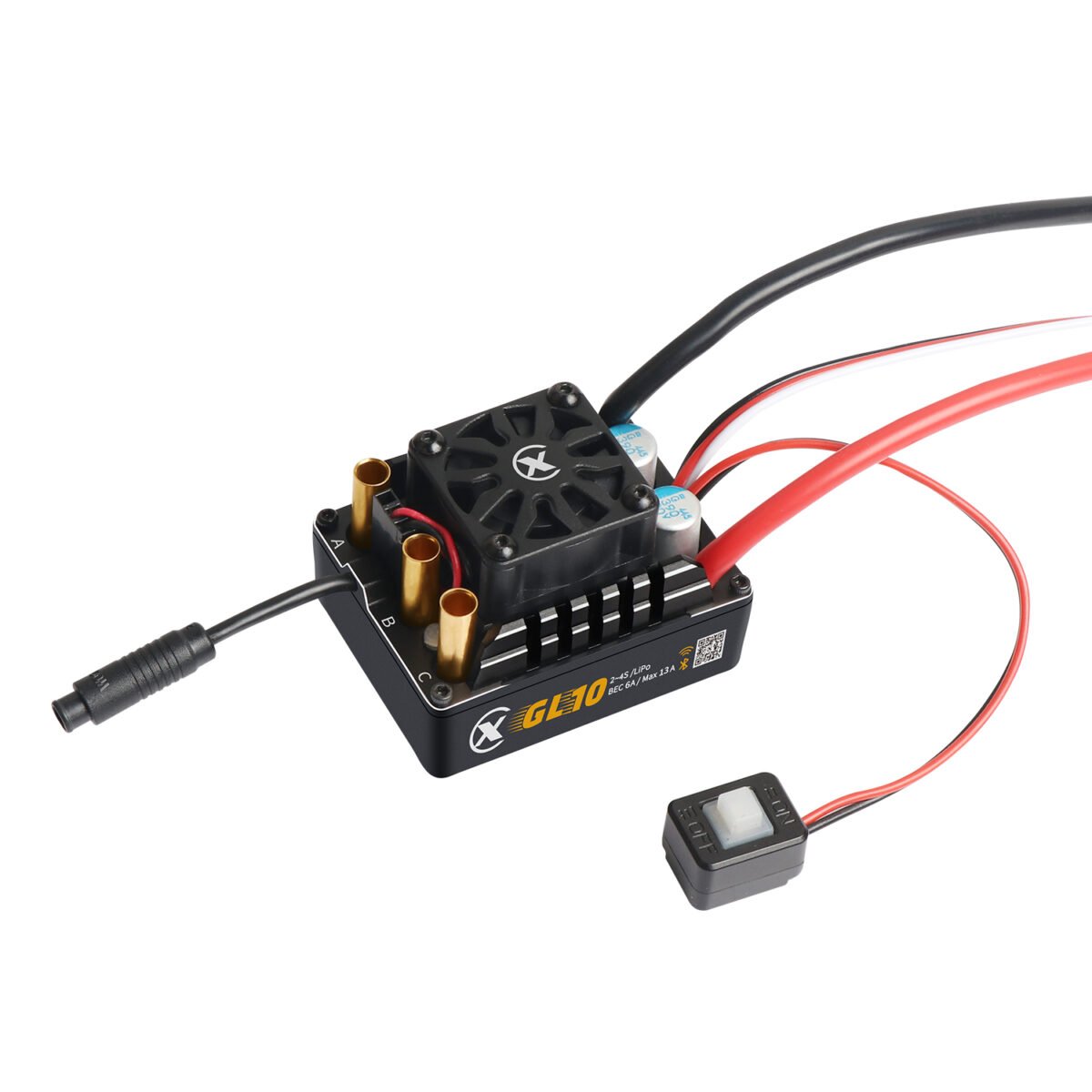

GL10 RC Car Brushless Sensored FOC Drive ESC
- High Power ESC: Supports 2-4S LiPo batteries, BEC current up to 6A~13A Max.
- Smart Cooling System: Intelligent fan automatically turns on/off based on ESC temperature for efficient heat management.
- Bluetooth Integration: Adjust settings and program ESC directly via a mobile app.
- Turbo Timing Adjustment: Fine-tune motor speed with turbo timing adjustable from 0° to 26°.
- Wave-by-Wave Current Limiting: Prevents excessive pulse currents, protecting the motor and drivetrain.
- Real-Time Data Logging: Monitor operation records in real-time or view static logs via the mobile app.
- Powerful BEC Functionality: Supports up to 10A for driving high-voltage servos, with adjustable BEC output (6V/7.4V).
- IP67 Waterproof & Dustproof: Ensures smooth operation in harsh environments.
| Name | GL10 Electronic Speed Controller / 80A (2~4S) | |
| Type | FOC Electronic Speed Controller for RC Cars | |
| Parameters | Continuous Current | 80A |
| Input | 2~4S LiPo | |
| BEC | 6A~13A Max | |
| Weight | ≈95g (with wire) | |
| Power/Motor Lines | 12AWG/4.0mm (plug) | |
| Waterproof | IP67 | |
| Working Temperature | -25~60℃ | |
| Size(L*W*H)/mm | 48.0*37.5*33.6 | |
| Motor-Rec | GL550/GL540L motor | |
