New Arrival:RC Car Model Power ESC-E3 PRO

ESC-E3 PRO: Surging Power, Uncompromising

The durability is undoubtedly one of the most important features of an ESC for every RC enthusiast in the pursuit of limits. The E3 Pro brushless ESC has won enthusiasts’ recognition with features of outstanding technological innovation, meticulously designed durability and hundreds of performance loss tests.

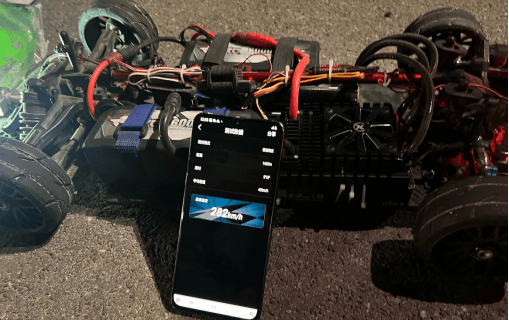

The test broke a new record: 282KM/h

In practical testing, the Xiongcai(XC) E3 Pro brushless ESC performs excellently at extreme speeds, reaching a speed of 282KM/h, demonstrating its powerful starting linearity and explosive performance potential. Whether in racing or high-performance application scenarios, it can be precisely controlled and provide stable and reliable power support.

The E3 Pro ESC adopts a meticulously designed commutation scheme for smooth commutation process; The application of active freewheeling technology effectively reduces MOS transistors generating heat during operation; At the same time, cycle-by-cycle current limiting can protect motor and drive system from instantaneous heavy current damage; The intelligent cooling system ensures stable operation under high loads. These technologies greatly extend the service life of product.

Smart Thermal Dissipation solution:

Dual fan design and automatically Start/Stop upon temperature for efficient thermal performance and low noise.

Bluetooth connection:

Built-in Bluetooth connects Mobile App for parameter setting and firmware management so easy.

Operation data:

Data log and real-time data can be observed on Mobile App.

Built-in powerful BEC：

Reduces weight and increase performance. 20A PEAK Adjustable 6V/7.4V/8.4V for various high-voltage servos and receivers.

IP67 rating:

Waterproof and dustproof design for all weather conditions.

400A continuous current, 800A peak and up to 12S LiPo of power system can cope with various high-load conditions.

ESC-E3 PROFeatures:

• Continuous/Peak current – 400A/800A
• Recommended battery – 6~12S LiPo
• BEC voltage- Adjustable6V/7.4V/8.4V
• Communication bus – FUTABA_T4PM, XC.BUS,FS Sensor data transmission
• Cut-off voltage – 2.9V~3.5V
• Number of motor poles – 1~64
• Motor/power cord – 7AWG
• Turbo timing – 0-26 degree
• Water proof – IP67
• Weight(excluding wire) ≈768g
• Dimension – 127.5*81*59.5mm
