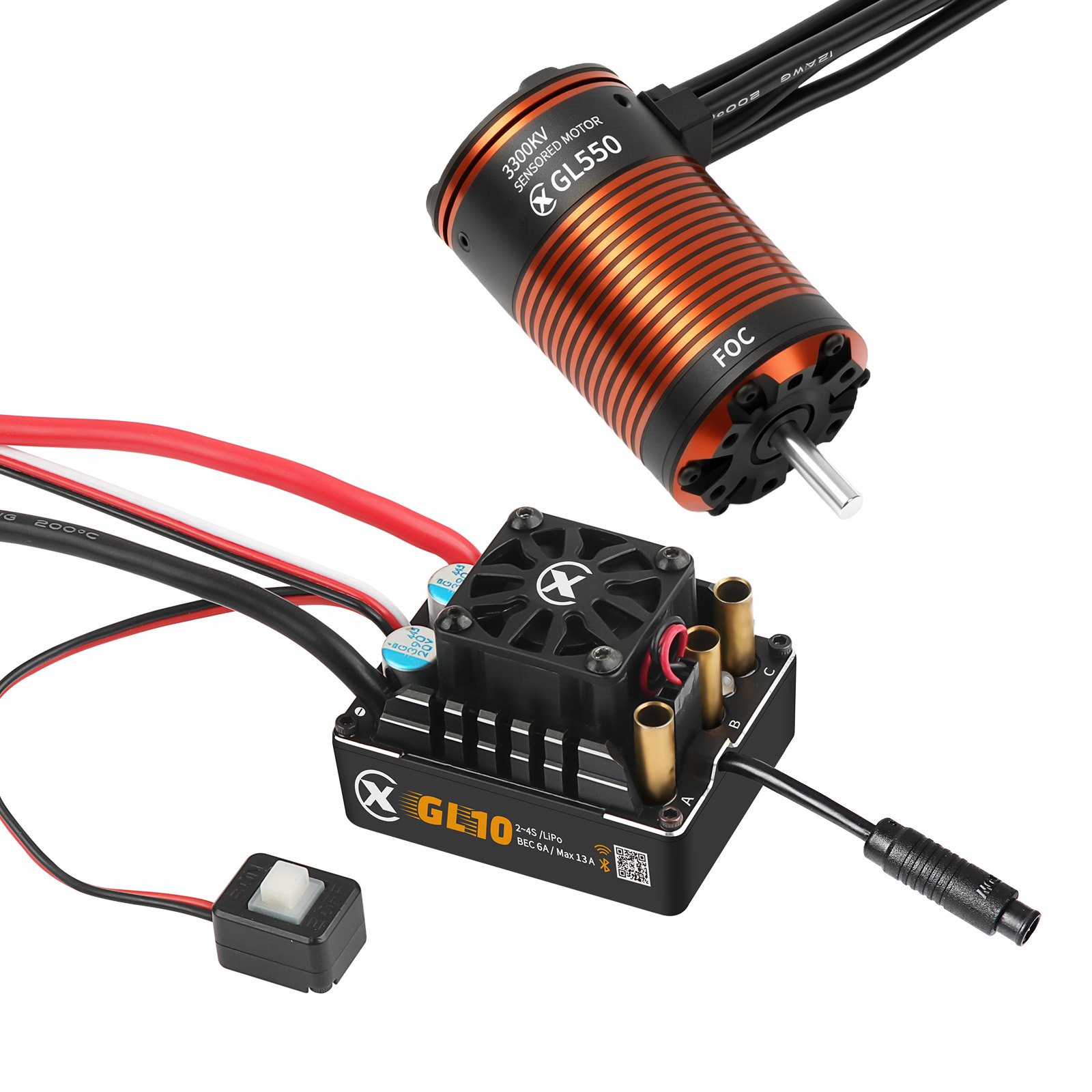

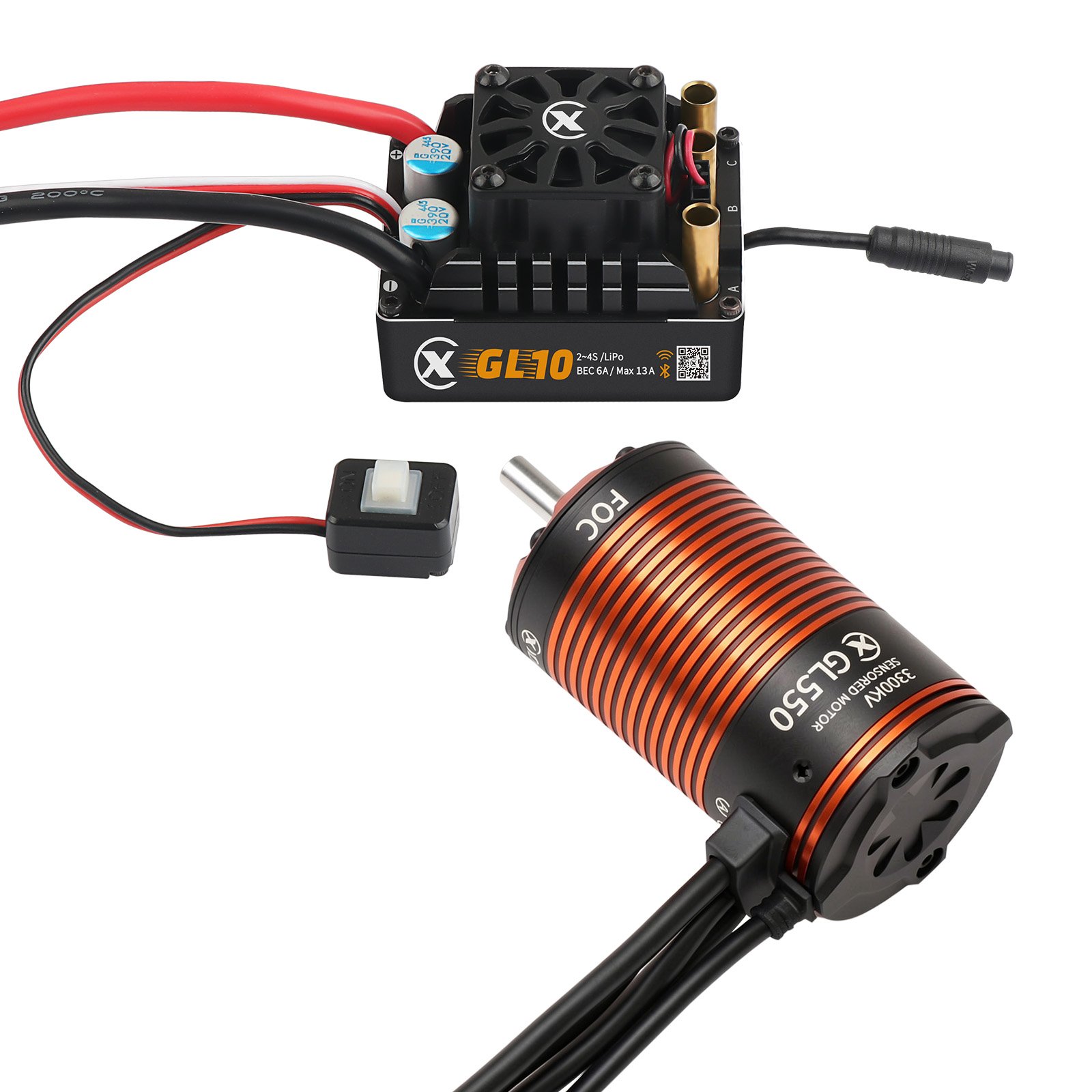

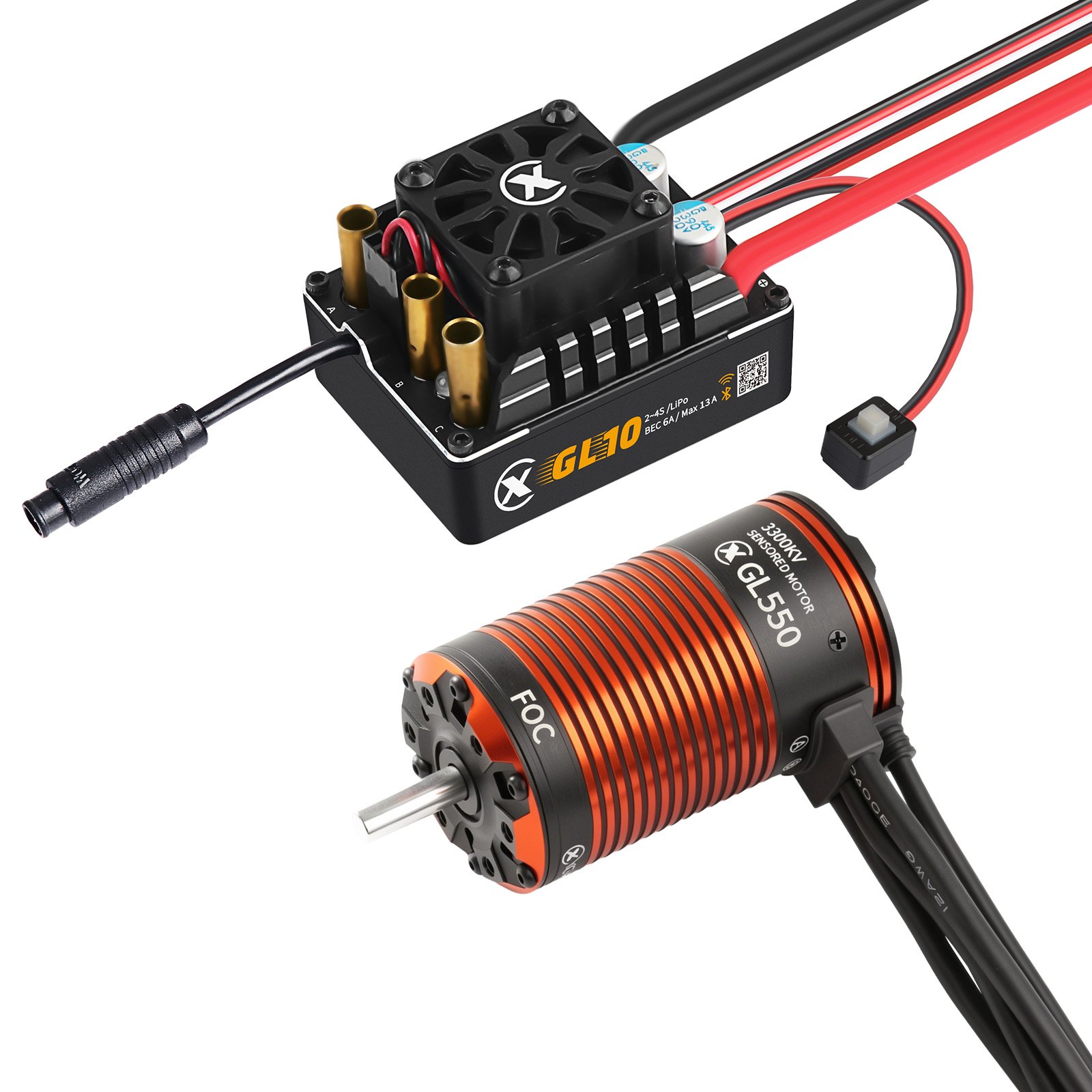

GL10 + GL550 FOC Brushless Crawler Combo 3S

XC GL10 Brushless Crawler ESC comes with 3s 80A power system, engineered for 1/10th RC rock crawler to improve your RC adventure experience.
FOC drive for high torque and super linearity at low speed and robust offroad bashing.
Intergrated Bluetooth and Mobile APP for comvenient programming, No Programming Box or Card Required.
Particularly designed parameter setting for ccrawler adventures like Torque Compensation, Simulation Inertia, Drag Force……
Smart torque output for different terrains, excellent slope parking capability against vehicle rolling.
Data Logging Capability, to improve configurations and parameter tuning. Real-time data such as voltage, current, ESC and motor temperature, motor RPM etc are obtainable on Mobile APP.
Waterproof IP67 rating, GL10 brushless crawler ESC is potted in epoxy to protect electronics and for better heat transfer.

Original price was: $288.00.Current price is: $252.50.

Specs

Key Features

High Power ESC: Supports 2-3S LiPo batteries, BEC current up to 6A~13A Max.
Smart Cooling System: Temperature controlled fan turns ON/OFF based on ESC temperature for efficient thermal management.
Integrated Bluetooth: Program settings and tune ESC directly via mobile app.
Turbo Timing Adjustment: Turbo timing adjustable from 0° to 26° for extra motor RPM.
Cycle-by-cycle Current Control: Prevents excessive pulse currents, protecting the motor and drivetrain.
Real-Time Data Logging: Monitor operational records in real-time or view data log via the mobile app.
Powerful BEC: Adjustable BEC output (6V/7.4V) supports up to 10A for driving high-voltage servos.
IP67 Waterproof & Dustproof: Ensures smooth operation in harsh environments.
9-month warranty from purchase date upon proof.

Name	GL10 Electronic Speed Controller / 80A (2~4S)
Type	FOC Electronic Speed Controller for RC Cars
Parameters	Continuous Current	80A
	Input	2~4S LiPo
	BEC	6A~13A Max
	Weight	≈95g (with wire)
	Power/Motor Lines	12AWG/4.0mm (plug)
	Waterproof	IP67
	Working Temperature	-25~60℃
	Size(LWH)/mm	48.037.533.6
Motor-Rec	GL550/GL540L motor

Name	GL550 Motor For RC Car
Type	FOC
KV	3300KV
Cells	2~3S
No-load Current	≤4.6A
Outer Diameter/Length	Ø36mm(1.417in)/L62.6mm(2.465in)
Shaft diameter/ End length of shaft	Ø5mm(0.197in)/L16mm(0.63in)
Bearing Front(driving end)	D13d5T4
Bearing Rear(wire outlet end)	D15d6T5
Weight	270 g
Pairs of Poles	2 Pairs of poles
Application	1/8 Crawler, 1/10 Crawler
