How Electronic Speed Controllers Work in RC Models
An electronic speed controller working changes how fast and which way your RC model goes. You use your remote to send signals. The controller gets these signals and adjusts the motor speed and direction. If you understand how the electronic speed controller works, you can enhance your vehicle’s performance and longevity.
| Feature | Impact on Performance and Reliability |
|---|---|
| Programmability | Lets you change how you drive for better results. |
| Built-in BEC | Keeps the voltage steady, so electronics work well. |
| Proper Matching | Stops overheating and keeps parts working well. |
Choosing the right electronic speed controller for your motor and battery ensures your RC car operates efficiently and lasts longer.
Key Takeaways
- Learn how an electronic speed controller (ESC) controls power for your RC motor. Knowing this helps your vehicle work better and last longer.
- Pick the right ESC for your motor and battery. Matching them well stops overheating and helps everything run smoothly.
- Use features like built-in BEC and smart cooling systems. These make your electronics safer and more dependable when you use them.
- Set up your ESC the right way for smooth throttle response. Doing this is important for good control and top performance.
- Check connections and cooling systems often. Keeping your ESC clean and working well stops problems and helps it last longer.
Electronic Speed Controller Working
How ESC Works in RC Models
You use a transmitter to control your RC model. The electronic speed controller inside your vehicle controls how much power goes from the battery to the motor. This lets you change speed and direction exactly how you want. The ESC does more than just turn the motor on or off. It acts like the brain for power, making sure your brushless dc motor gets the right energy at the right time.
The E3 PRO ESC from XC is an example of how new technology can make things work better and last longer. Here are some of its features:
| Feature | Description |
|---|---|
| High Power Capacity | Handles 6-12S LiPo with a 400A setup, so power stays steady and does not overheat. |
| Intelligent Cooling System | Has two fans that turn on when the ESC gets hot to cool it down. |
| Bluetooth Connectivity | Lets you program and update the ESC with a mobile app. |
| Turbo Timing Adjustment | You can change turbo timing from 0° to 26° to make the motor go faster. |
| Anti-Spark Protection | Protects the ESC and battery when you connect them, especially with lots of power. |
| Cycle-by-Cycle Current Control | Stops too much current from hurting the drivetrain and motor. |
| Data Logging | Records data in real time using a mobile app, no cables or computer needed. |
| High-Power BEC | Adjustable BEC (10-25A peak) helps control high-voltage servos exactly. |
| IP67 Waterproof & Dustproof | Covered in epoxy to keep out water and dust, so it works well in many places. |
When you use an ESC like the E3 PRO, you get smooth starts, strong stops, and steady running. This makes driving your RC car more fun and helps your brushless dc motor last longer.
Signal Processing and PWM Control
The electronic speed controller in your RC model starts by processing signals. Here is how esc works step by step:
- The ESC gets a throttle signal from the receiver.
- It figures out how much power to send to the brushless dc motor.
- The ESC changes the battery’s direct current into pulses.
- It changes the power sent to the motor, so your car goes faster or slower.
- If your setup allows, the ESC can make the motor go backward.
- The built-in BEC lowers voltage to power the receiver and servos.
- The ESC uses pwm to control power for smooth driving.
PWM, or pulse width modulation, is very important for the electronic speed controller. When you move the throttle, a radio signal goes to the receiver. The receiver makes a pwm signal and sends it to the ESC. The ESC reads how wide each pulse is. A short pulse means less power and slower speed. A long pulse means more power and faster speed. This way, you can control your brushless dc motor very well.
MOSFETs are important in how esc works. These small switches turn the current on and off very fast. They help control the speed and direction of your brushless dc motor. MOSFETs also help the ESC save energy. Lower resistance means the ESC stays cool and the motor works better.
Motor and Battery Interaction
The electronic speed controller connects your battery and brushless dc motor. It manages power so your motor gets what it needs. When you press the throttle, the ESC makes the pwm pulse wider. This sends more energy to the brushless dc motor, so your RC car goes faster. When you slow down, the ESC makes the pulse shorter, sending less power.
The ESC also keeps your system safe. Features like anti-spark protection and cycle-by-cycle current control protect your battery and brushless dc motor. The E3 PRO ESC uses smart cooling and waterproofing to handle tough situations. You can count on it to keep your RC model working well, even in hard races.
Controlling brushless motors in RC models depends on the electronic speed controller working just right. The ESC makes sure your brushless dc motor gets the right signals and power. This means better performance, a longer-lasting motor, and more fun when you drive.
Tip: Always match your ESC to your brushless dc motor and battery for the best results. This stops overheating and keeps your RC model working well.

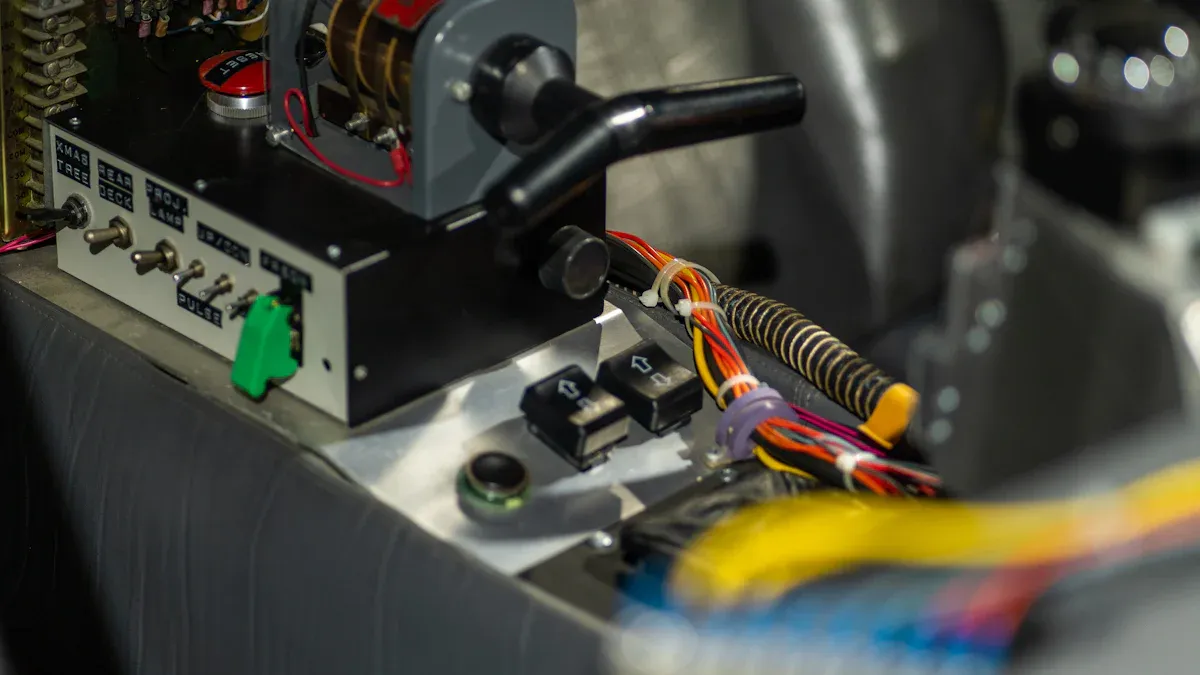

ESC Components
Microcontroller and MOSFETs
Every electronic speed controller has important parts inside. The microcontroller is like the brain of the ESC. It gets signals from your receiver and figures out how much power your motor needs. The microcontroller makes a PWM signal. This signal tells the MOSFETs when to turn on or off. MOSFETs are very fast switches. They can handle a lot of current from the battery. They send just the right amount of power to your motor.
Here is a table that lists the main parts inside an ESC:
| Component | Description |
|---|---|
| Power MOSFETs | Fast switches that handle lots of current from the battery. |
| MOSFET driver circuitry | Controls the MOSFETs using commands from the microprocessor. |
| Microprocessor | The brain that reads signals and controls the ESC. |
| Motor position detection | Helps find the motor’s position for better control. |
| Battery Eliminator Circuit (BEC) | Gives steady voltage to other parts without needing another battery. |
The E3 PRO ESC from XC uses smart microcontrollers and strong MOSFETs. This setup gives you smooth starts and steady power, even when racing hard.
BEC and Voltage Regulation
The Battery Eliminator Circuit, called BEC, is very important in your ESC. You do not need extra batteries for your receiver or servos. The BEC takes high voltage from your main battery and changes it to a safe, steady voltage for your electronics.
- Voltage Regulation – Keeps your electronics safe by giving steady power.
- Weight Reduction – Makes your RC model lighter and easier to drive.
- Power Management – Stops voltage spikes from hurting your system.
- Improved Efficiency – Helps your RC model run longer and work better.
The E3 PRO ESC has a strong BEC. It gives steady voltage to high-power servos and receivers.
Protection and Cooling Features
Your ESC needs protection and cooling to work well. The E3 PRO ESC has many features to keep your system safe and cool:
- Overvoltage protection sends away extra voltage to stop damage.
- Thermal protection checks the temperature and shuts down if it gets too hot.
- Voltage compatibility checks make sure your ESC matches your battery.
- Capacitors soak up power surges and lower electrical noise.
- Heat sinks and fans help keep the ESC cool during long runs.
These features help your ESC last longer and keep your RC model running well. You can race without worry, knowing your E3 PRO ESC protects your electronics and keeps them cool.
Electronic Speed Controller Types & Selection
Brushed vs. Brushless ESCs
You can pick brushed or brushless ESCs for your RC model. Brushed ESCs work with brushed motors. Brushless ESCs control brushless motors. Each type has good points. Brushless motors use electronic commutation. This means they run better and control speed smoothly. Brushed motors use mechanical commutation. They need more care and do not last as long.
Here is a table that shows the differences:
| Aspect | Brushless Motors | Brushed Motors |
|---|---|---|
| Commutation | Electronic | Mechanical |
| Efficiency | Higher | Lower |
| Speed Control | Smoother | Less precise |
| Maintenance | Lower | Higher |
| Service Life | Longer | Shorter |
| Electrical Noise | Reduced | Higher |
Brushless ESCs are best for racing and tough jobs. Brushed ESCs are good for simple and cheap setups.
Sensored vs. Sensorless
You also choose between sensored and sensorless ESCs for brushless motors. Sensored ESCs use sensors to find the rotor’s position. This gives smoother starts and better control at slow speeds. Sensorless ESCs do not use sensors. They might stutter when starting slow but work great at high speeds.
| Feature | Sensored ESCs | Sensorless ESCs |
|---|---|---|
| Startup Performance | Smoother startups | May stutter at low speeds |
| Low-Speed Control | Excellent | Limited |
| High-Speed Efficiency | Can become unreliable | Excellent |
| Durability | Sensors can be affected by harsh conditions | More durable |
Sensored ESCs help you drive your RC car in small spaces. Sensorless ESCs are good for fast racing and rough places.
Key Specs for RC Models
When picking an esc for brushless motors or drones, check the main specs. These help you match the esc to your motor and battery.
| Specification | Description |
|---|---|
| Motor Compatibility | Brushless motors need advanced ESCs with three output wires. KV rating matters for speed. |
| Voltage Rating (V) | The esc must match your battery voltage to prevent damage. |
| Current Rating (A) | The esc should handle at least 20% more current than your motor’s maximum. |
| Features & Protocols | BEC powers servos and receiver. DShot/PWM gives precise control. Active braking helps with cars. |
| Application-Specific | Lightweight esc for drones. RC cars need reverse function. |
The E3 PRO ESC from XC works with 6-12S LiPo batteries and has high current. You get Bluetooth programming, turbo timing, and strong cooling. These features make it a good choice for many RC models.
Matching ESCs to Motors
You must match your esc to your motor and battery for safe use. Check the voltage and current ratings. Make sure your esc for brushless motors can handle your battery’s power. For example, a 5000mAh battery with a 20C rating can give up to 100 amps. Your esc should have a higher current rating to stop overheating.
Tip: Always check the battery’s voltage and discharge rate. This helps you pick the right esc for drones or cars.
The E3 PRO ESC works with many battery types and brushless motors. You get steady power, smart cooling, and protection. This makes it easy to set up your RC model for racing or fun.
ESC Setup & Troubleshooting
Installation Steps
Setting up your electronic speed controller is easy when you follow the right steps. The E3 PRO ESC from XC makes installation simple, even if you are new to RC models. Here is how you can install your ESC for the best results:
- Mount the ESC in a safe, well-ventilated spot. Pick a secure place on your chassis that lets air flow over the ESC. Good airflow helps keep it cool.
- Connect the motor wires to the ESC. If you use a brushed motor, connect two wires. For brushless motors, connect three wires in any order.
- Attach the ESC to the battery and receiver. Make sure you match the polarity and keep the wires neat. This prevents loose cables and keeps your setup tidy.
- Calibrate the ESC to your transmitter. This step ensures your throttle range matches perfectly.
Tip: The E3 PRO ESC includes clear instructions, so you can finish installation quickly and start driving sooner.
ESC Calibration
Calibrating your ESC helps your transmitter and motor work together. You can follow these steps to set up your throttle range:
- Turn on your transmitter. Move the throttle stick to full throttle.
- Connect the battery to the ESC.
- Listen for a series of beeps. These sounds mean the ESC has detected the maximum throttle signal.
- Move the throttle stick to zero throttle.
- Wait for another set of confirmation tones. Your ESC now knows the minimum throttle.
You can repeat calibration if you change your transmitter or motor. The E3 PRO ESC makes this process easy with clear feedback and quick response.
Common Issues & Fixes
Sometimes, you may face problems with your ESC. Here are some common issues and what usually causes them:
| Issue | Typical Cause |
|---|---|
| Reverse Battery Connection | Incorrect battery installation leading to damage. |
| Excessive Current Draw | Mechanical resistance, binding components, or wrong gear ratio. |
| High Battery Voltage | Using a battery with voltage above the ESC’s maximum rating. |
| Insufficient Cooling | Poor airflow or missing cooling fans causing overheating. |
If you run into trouble, try these steps:
- Check the power input voltage. Replace the battery if needed.
- Make sure the control signal wires are connected well.
- Verify the load is not too high. Use a higher-power ESC if necessary.
- Inspect the motor for damage and check startup settings.
- Ensure the cooling fan works and improve heat dissipation.
- Check for short or open circuits in the wiring.
- Look at communication lines and settings if you see errors.
Note: The E3 PRO ESC’s smart cooling and protection features help prevent many common problems, so you can enjoy reliable performance.
You count on electronic speed controllers to help control your RC car. ESCs send power to the motor and use PWM to save energy. They need to be set up right to work their best.
- Always look at your settings before you drive.
- Change one thing at a time and test it.
- Keep wires and heatsinks clean so your ESC lasts longer.
- If you have trouble, ask other RC drivers for help.
| Feature | Budget ESCs | Premium ESCs (E3 PRO) |
|---|---|---|
| Performance | Basic control | Enhanced performance |
| Durability | Standard materials | High-quality components |
| Advanced features | Limited | Extensive features |
Getting a premium ESC like the E3 PRO gives you more control. You also get more power and your RC car works better.
FAQ
What does an ESC do in an RC car?
You control speed and direction with an ESC. The ESC takes signals from your transmitter and sends the right amount of power to the motor. This lets you drive faster, slower, or in reverse.
How do you choose the right ESC for your RC model?
You check your motor type, battery voltage, and current needs. Pick an ESC that matches or exceeds these ratings. Look for features like waterproofing, cooling, and easy setup for better performance.
Why does your ESC get hot during use?
Your ESC gets hot when it handles high current or poor airflow. Racing, heavy loads, or blocked fans can cause overheating. You keep your ESC cool by mounting it in a ventilated spot and checking the cooling system.
Can you use any ESC with any motor?
You must match your ESC to your motor type. Brushless motors need brushless ESCs. Brushed motors need brushed ESCs. Using the wrong ESC can damage your motor or reduce performance.
What should you do if your ESC stops working?
You check all connections first. Make sure the battery and motor wires are secure. Inspect for damage or overheating. Reset the ESC and try calibration. If problems continue, consult your ESC manual or ask for help.
